Firestone Air Spring Airglide 200, 1T15LA-0 - W013589541

*THIS PART IS NON-RETURNABLE*

Product Description

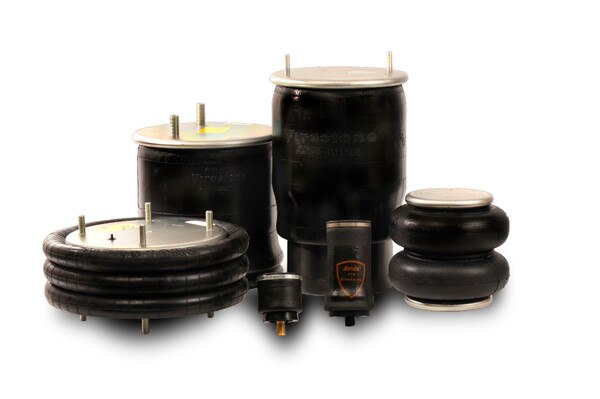

Firestone air helper springs, also known as air bags, are used to help keep commercial vehicles from squatting under heavy load. In turn, commercial drivers will experience a more stable, safe and comfortable ride. When in need of replacement air springs for your air suspension system, shop Firestone!

This air spring (air bag) from Firestone Industries is made for Kenworth C81-1005 Airglide 200 5/03 or later, Airglide 460, 690. This reversible sleeve air spring from Firestone contains an extended height measurement of 11.8 inches and a compressed height measurement of 6.25 inches. Its top plate number is 3174 and top plate width measures 9 inches. Piston number is 9569 and piston width measures 8.18 inches. Firestone bellows number: 1T15LA-0.

This product comes with a limited lifetime warranty.

For over 80 years, Firestone Industries Products (Firestone) has continued to impress customers with cutting-edge air spring manufacturing and technology. Firestone air springs are built to last for all types of heavy-duty commercial vehicles including trucks and trailers; light trucks; mini vans, motorhomes and buses. When in need of replacement air springs (air bags) for heavy-duty applications, look no further than Firestone!

Features

• Extended height measurement of 11.8 inches
• Compressed height measurement of 6.25 inches
• Top plate number is 3174
• Top plate width measures 9 inches
• Piston number is 9569
• Piston width measures 8.18 inches
• Firestone bellows number: 1T15LA-0

Includes

Airide air spring

Warranty

Limited lifetime.

Cross Reference

3040-W013589541, 3040W013589541, 9910P861, 9910S861, AS9541, AS95410, C81-1005, C811005, FIW013589541, FSIW013589541, G2299541200, GTK-358-9541, GTK3589541, MAF9541, MAF9541AU, TR9541, TWDW013589541, W01-358-9541, WA01-9541C, WA019541C
