Firestone Airide Air Spring, 1T15L-1.5 - W013589422

*THIS PART IS NON-RETURNABLE*

Product Description

Firestone air helper springs, also known as air bags, are used to help keep commercial vehicles from squatting under heavy load. In turn, commercial drivers will experience a more stable, safe and comfortable ride. When in need of replacement air springs for your air suspension system, shop Firestone!

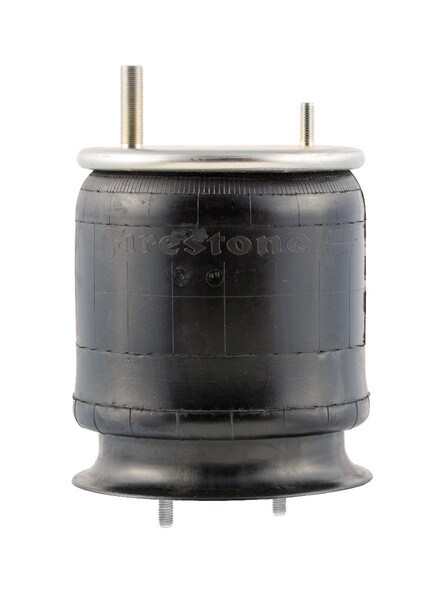

This air spring (air bag) from Firestone Industries is made for Kenworth K303-6, 14, 15, Airglide 100 older version without bracket. This reversible sleeve air spring from Firestone contains an extended height measurement of 13.3 inches and a compressed height measurement of 3.8 inches. Its top plate number is 3267 and top plate width measures 9 inches. Piston number is 9571 and piston width measures 9.5 inches. Firestone bellows number: 1T15L-1.5 or 1T15KW-1.5. Load rating at 100 PSI is 6060 pounds and the load rating at 80 PSI is 4820 pounds.

This product comes with a limited lifetime warranty.

For over 80 years, Firestone Industries Products (Firestone) has continued to impress customers with cutting-edge air spring manufacturing and technology. Firestone air springs are built to last for all types of heavy-duty commercial vehicles including trucks and trailers; light trucks; mini vans, motorhomes and buses. When in need of replacement air springs (air bags) for heavy-duty applications, look no further than Firestone!

Features

• Extended height measurement of 13.3 inches
• Compressed height measurement of 3.8 inches
• Top plate number is 3267
• Top plate width measures 9 inches
• Piston number is 9571
• Piston width measures 9.5 inches
• Firestone bellows number: 1T15L-1.5 or 1T15KW-1.5

Includes

Airide air spring

Warranty

Limited lifetime.

Cross Reference

010134506-4, 018045AA, 018045CA, 018050, 018124A, 018124B, 019422, 10-13759-000, 10-99422, 10.5C-16, 1000-AS8050, 1000-AS9422, 1000AS8050, 1000AS9422, 1003589422C, 10134509, 1013759000, 10234504, 1083209, 1091347, 1091370, 11105C16A320, 1139069MTM, 11604, 118045GA, 118045HB, 118045KB, 118045LB, 118124D, 118124E, 118124F, 118124G, 120-1, 1250546B000, 12514013, 12608, 12G51, 12J59, 12L569, 12L572, 13032, 1316546, 1367383MTM, 14410, 14626ADV, 14QK-410M, 14QK-410M3, 14QK-424M, 14QK410M, 14QK410M3, 16-16765-000, 1616765000, 16721, 16770, 16777, 16781, 16824-01, 1682401, 1685174C1, 16965, 1746163, 18165-01, 1816501, 19824-01, 1982401, 1C34-18045-AA, 1C34-18045-JA, 1DK20D-9422, 1DK20D9422, 1DK28A-8050, 1DK28A8050, 1R11-028, 1R11-278, 1R11-279, 1R11028, 1R11278, 1R11279, 1R14-039, 1R14-055, 1R14-083, 1R14-241, 1R14-244, 1R14039, 1R14055, 1R14083, 1R14241, 1R14244, 1T15L-1, 201680, 201680S6002, 20570098, 218045DA, 218124C, 23614-01, 23631-01, 2363101, 25625187, 25625234, 25625254, 25632561, 290465, 300-1316546, 3001316546, 301456, 301457, 301565, 301627, 301630, 3040-W013588050, 3040-W013589422, 3040W013588050, 3040W013589422, 3130496, 3130498, 315400, 315432, 315542, 315543, 315554, 315611, 315612, 315614, 318-06-100, 31806100, 3199941, 3199944, 32789422, 341627, 34183201, 345616, 34768, 352-8050, 352-9422, 3528050, 3529422, 35901-0001, 35901-3413, 359013413, 3603-8200, 36038200, 36514-13, 3651413, 3805001K, 3918326, 3918342, 3919574, 3919917, 3919941, 3919947, 3942201KPP, 3946217, 3HR582MTM, 3U2Z18124BAA, 3U2Z18124FAA, 3U2Z18124YAA, 410021, 410022, 410035, 418045EA, 434241, 436137, 438015, 452-9422L, 4528050L, 4529422L, 471700000000, 471700000000000, 471700000428, 471700000461, 471700003009, 471700131545, 471700131775, 472000000000, 47200000000000, 47902-25, 4790225, 50712, 508-68, 50866, 50868, 517-05009-14, 5170500914, 518124D, 518124DA, 53039, 53040, 551001, 554762C1, 557001, 557015, 57008050, 57009422, 57365-111, 57365111, 57366861, 57905-2, 579052, 58034, 59018, 59031, 5966-90044025, 5C3Z18124JA, 5U2Z18V124AA, 5U2Z18V124CAA, 5U2Z18V124GA, 5U2Z18V125AE, 5U2Z18V125AF, 5U2Z18V125BGA, 5U2Z18V125G, 60231508, 60670-006, 60675-004, 60675004, 60998-001, 60998-003, 60998001, 60998003, 618045MA, 618124MA, 63678, 6368, 638312, 63942, 63953, 64254, 64255, 65087, 65088, 65111, 65114, 653512-01, 65351201, 65401, 65420, 65459, 65482, 654896, 654899, 65505, 65515, 65516, 659155, 665190, 665465, 665532, 665632, 665784, 66614, 66672, 66710, 66861, 66864, 66884, 66898, 671779, 680-323-0300, 680279, 6803230300, 680328, 680505, 680617, 68857, 68957, 69671, 69673, 69712, 70127, 70128, 70397, 70648, 70721, 72-61, 727601, 727613, 727636, 728618, 73567, 73568, 73881, 73894, 7C3418045HB, 81437016543, 81437016572, 82401148, 83104, 83122, 83125, 8314, 83147, 83176201, 83176208, 83201, 83209, 83213, 83215, 83309, 85006, 85006GBL, 85013A0C, 85036, 85043, 85097, 85101148, 85104186, 85137234, 85337, 85717, 85991, 8778050, 8779422, 88-1457-SP1, 88-1468, 88-1558, 88-5162, 888050, 89401, 89403, 89405, 89406, 89414, 89446, 9 9-12 P 314, 90-2251, 90-2563, 90044012, 90044625, 90044680, 90044687, 901862, 902563, 97220100151, 97221000153, 98583-016, 98583-020, 9912P314, 9U94-18045-AA, 9U9Z-18124-A, A-2471, A-4089, A2471, A4890, A83125, A85006, AA450, AA483, AA485, AA500, AA501, AB1DK20D-9422, AB1DK20D9422, AB1DK28A8050, ABP N32 019422, ABPN32018050, ABPN32019422, AD1DK20D9422, AMS600108, AMS600114, AMS600142, AMS600154, AMS600174, AMS650111, AMS650114, AMS650401, AMS650420, AMS650482, AMS660108, AMS660114, AMS660142, AMS660174, AMS660244, AMS85768, APL-102358, AR-1008, AR1008, AS PR11LN16 8050, AS PR9L12 9422, AS RC11LN16 8050, AS RC9L12 9422, AS-0017, AS-0039, AS-8314, AS0017, AS0039, AS546B, AS73568, AS8050, AS80500, AS8314, AS91210, AS9422, AS94220, ASH-1022, ASH-1205, ASH-1228, ASH-294, ASH-32, ASH119, ASH120, ASH24401, ASH24433, ASH32, ASH335, ASH387, ASHV1028, ASHV6, ASHV865, ASHV866, ASHV871, ASPR11LN168050, ASPR9L129422, ASRC11LN168050, ASRC9L129422, AT-620, AT-766, AT547, AT683, AX267A, B-12514-013, B-13032, B-4771, B12514-013, B12514013, B13032, B46-1594, B4771, BP1813, C0294, CAT-768, CAX-894, CAX-898, CAX898, CS111028, CS2050, CT64254, CTH 64254 8058, CTH 64255 9422, CTH642548058, CTH642559422, CTT64254, D7HA18080AA, D8HZ18125B, DN34183201, DPM65111, DPM65482, DPM66861, DPM66884, E1R11028, E1R14039, E3131, E7XZ18125G, E83201, E83205, E83209, E83213, E83309, E85006, E85013, ECEMN66861, EFS8050, EFS9422, EIE1R14039, EIE3131, EIE83201, EIE83213, EIE83309, EIE85006, EIEFS8050, EIEFS9422, EIEMN66861, EIEMN66884, EIEMN66898, EMN65111, EMN66861, EMN66884, EMN66898, EMNEMN65111, EOEUE89401, EU65111, EU66861, EU66898, EUE83213, EUE83309, EUE85006, EUE89401, EUEMN65111, EUEMN66861, EUEMN66884, EUEMN66898, EUEMNEMN65111, EUSA65111, EUSA66861, EUSA66884, F0HS-18045-AA, F0HS18045AA, F0HT-18045-AA, F0HT-18045-CA, F0HT18045AA, F0HT18045CA, F0HZ-18124-A, F0HZ-18124-B, F0HZ18124A, F0HZ18124B, F1HT-18045-GA, F1HT-18045-HB, F1HT-18045-KB, F1HT-18045-LB, F1HT18045EA, F1HT18045EB, F1HT18045GA, F1HT18045GB, F1HT18045HB, F1HT18045KB, F1HT18045LB, F1HT18045RB, F1HZ-18124-D, F1HZ-18124-E, F1HZ-18124-F, F1HZ-18124-G, F1HZ18124D, F1HZ18124E, F1HZ18124F, F1HZ18124G, F2HT-18045-DA, F2HT18045DA, F2HZ-18124-C, F2HZ18124C, F4HT-18045-EA, F4HT18045EA, F5HZ-18124-D, F5HZ-18124-DA, F5HZ18124D, F5HZ18124DA, F65111, F65482, F66861, F66884, F66898, F6898, F6HT-18045-MA, F6HT18045MA, F6HT18124KA, F6HZ-18124-MA, F6HZ18124MA, F81A18045AGB, F81Z18124BK, F87Z18125RA, FAS-0689, FAS0689, FF6898, FIR8050, FIRW01-358-8050, FIRW01-358-9422, FIRW013588050, FIRW013589422, FIW013588050, FIW013589422, FLF65111, FLF65482, FLF66861, FLF66884, FLF66898, FLRTMX1R11028, FLS-83125, FLS-83309, FLS-85006, FLSD66861, FLT1R11028, FLT1R14039, FLTA1R11028, FLTA1R14039, FOHT-18045-AA, FOHT-18045-CA, FS8050, FS9422, FS9422AG, FSIW013588050, FSIW013589422, G2298050400, G2299422200, GBH1R14039, GBL665538, GTK-358-8050, GTK-358-9422, GTK3588050, GTK3589422, GY1R11028, GYR1R11028, GYR1R14039, HDV-HDV8050, HDV-HDV9422, HDV8050, HDV9422, HENS-4771, HENS4771, HTSS4771, I8314, K-303-14, K-303-15, K-303-6, K303-14, K303-15, K303-6, K30314, K30315, K3036, KG6415, L59018, L59031, LE66861, LT66898, LTL59018, LTL59031, M3510, M3525, M65482, M65505, M66861, M66884, M83125, M83309, M85006, MAF8050, MAF9422, MBSA66861, MBSA66884, MBSA66898, MI66861, MISA65111, MISA65482, MISA66614, MISA66861, MISA66884, MISA66898, MLF7112, MN65111, MN66614, MN66861, MN66884, MN66898, MN6898, MNEMN65111, MNEMN66861, MNEMN66884, MNEMN66898, MNEMNEMN65111, MNSA66861, MO65111, MO66861, MO66898, MO6861, MO6898, MR66861, MS65111, MS66861, MS66884, MS66898, MS6861, MS6898, MSF6898, N65111, N66861, N66884, N66898, NEW900-44-625, NEW90044625, NW57366861, NW6898, NW90044625, PR11LN16, PR9L12, R11028, RC SA3125, RCAS8050, RCAS9422, RCSA3125, REAW013588050, REY18165-01, REY1816501, RL80500, RT18165-01, RT1816501, RWAS546B, S-13032, S-20178, S-2240, S-2471, S-4089, S-4771, S13032, S20178, S2471, S4771, S8050, S9422, SA3125, SA65111, SA65482, SA66614, SA66861, SA66884, SA66898, SC2050, SC2052, SD66861, SMR560405, STM1R14039, TA8314, TAS8050, TAS9422, TR8050, TR8314, TR8320, TR9422, TRAS8314, TRAS8320, TRI8314, TRL-230H, TRL230H, TS8314, TS8320, TWDW013588050, TWDW013589422, Triangle Spring: 4332, V68314, V68320, VX8050, VX9422, W01-358-8050, W01-358-9422, W01-3588-050, W01-544-9614, W013588050, W015449614, WA01-8050C, WA01-9422C, WA018050C, WA019422C, WCAS0039, WSA0083309, WSA0085005, WSA0085006, XB-SPN-053-36, XBSPN05336, ZYWSA0083309, ZYWSA0085005, ZYWSA0085006
