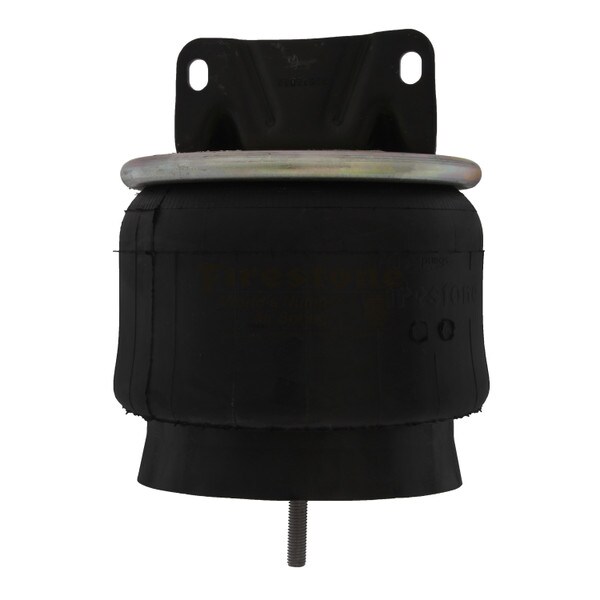

  • Meritor AIR SPRING - FS9622

Meritor AIR SPRING - FS9622

Back

Details

FIRESTONE AIR SPRING


Warranty depends on application and product type. Contact us for more information.


Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!


Back

Cross References

019622, 1000-AS9622, 1000AS9622, 1R11-221, 1R11221, 8235-FS9622, 8235FS9622, 999P537, 999S537, ABPN32019622, AS9622, AS96220, AS96221, ASPR9L99622, BP1836, FIW013589622, FS9622, FSIW013589622, G2299622200, GBH1R11221, GTK-358-9622, GTK3589622, GY1R11221, GYR1R11221, K303-19, K303-22, K30319, K30322, MAF9622, PR9L9, RCAS9622, TAS9622, TDAFS9622, TR9622, TWDW013589622, W01-358-9622, W013589622, WA01-9622C, WA019622C

Back

Specifications

BrandMeritor
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
Benefits

AIR SPRING


Features

  • Aftermarket Extended Warranty - General: 3 Years / 300K Miles
  • Bead Plate Diameter Bottom: 8.18 in.
  • Bead Plate Diameter Top: 9.00 in.
  • Collapsed Height: 3.90 in.
  • Convoluted Style: 1T Reversible Sleeve
  • Max. Height: 11.00 in.
  • Part Diameter: 9.12 in.
  • Piston Height: 2.80 in.
  • Stud Configuration-Bottom: 01
  • Stud Configuration-Top: 01
  • Stud Mount-Bottom Flat: Stud
  • Stud Mount-Top Flat: Stud

Includes

AIR SPRING


Warranty

Warranty depends on application and product type. Contact us to learn more.


Back

Returns, Warranty & Cores

For warranty, return, or core information please reach out to customer service or visit our Policy & Procedures page located at the footer of our website.
Back

Prop 65

WARNING: Cancer and Reproductive Harm -
