Meritor Genuine DRUM/X30 LTWT - 53123565002

Product Description

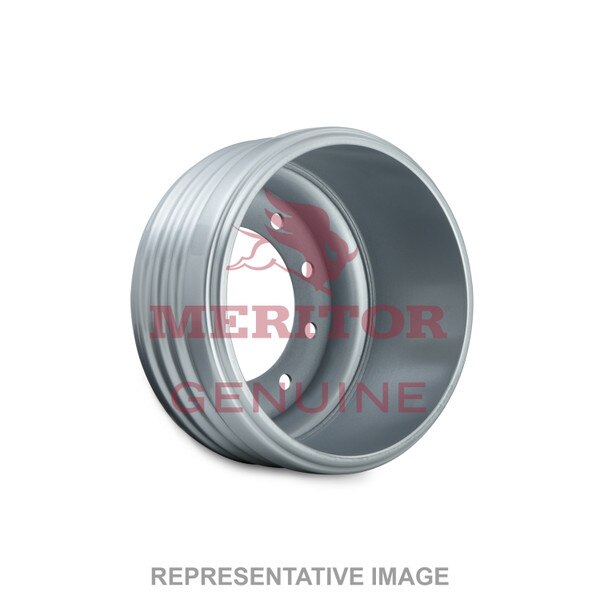

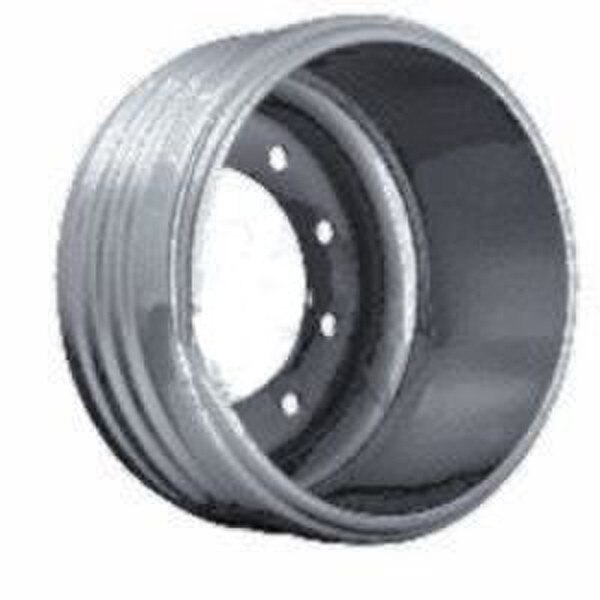

BRAKE DRUM - X30 BRAKE DRUM

Warranty information may be based on the product and application. Please contact us for additional information.

For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine DRUM/X30 LTWT - 53123565002 is the ideal way to make sure you have the replacement part you've been looking for.

Features

• Axle Capacity: 23,000 lbs.
• Bolt Circle Diameter: 11.25 in.
• Bolt Hole Diameter: .81 in.
• Bolt Hole Number: 10
• Brake Diameter: 16.50 in.
• Brake Diameter: 16.50 in.
• Brake Shoe Width: 7.00 in.
• Brake Size: 16.50 in. x 7.00 in.
• Brake Surface Width: 7.86 in.
• Brake Width: 7.00 in.
• Drum Mounting: OUTBOARD
• Overall Depth: 10.38 in.
• Pilot Diameter: 9.00 in.
• Type: X30 Balanced
• Wheel Type: Disc

Includes

Meritor Genuine DRUM/X30 LTWT - 53123565002

Warranty

Warranty information may be based on the product and application. Please contact us for additional information.

Cross Reference

010034A, 03-122550-002, 107904, 122550, 13122550, 13122550SB, 151.6711, 1516711, 1602403, 16794, 302206, 3122550, 3122550002, 3141W1, 3141X, 3219V3417, 3219V3714, 3219Y3561, 52705-30, 5270530, 53123565002, 56895B, 60417, 60417BU, 60417DT, 60417ER, 60417GU, 60417GUX, 60417RE, 60417WE, 60420, 60895B, 65702, 65702F, 65702PB, 65714, 66865, 66865FB, 66895, 66895B, 66895F, 7013X, 7023X, 86232, 86794, 87156, 87156B, 87187, 8729B, 97144, AW97144, CS3141, DA03122550, DB66895U, DI3141W1, DL3219V3417, DN03122550, DN122550, DN13122550, DN13122550SB, DP03122550, DP122550, DR122550, DR16123, DR16794, DR16798, DR2769, DR305, DR3141, DR4012, DR65702, DR66895B, DR97144, DRW66895, DRX60420, DT03122550, DT122550, DU16794, DW03122550, DW122550, DW3141, EU53123565002, FHMAMA4012, FRMAMA4012, FRMMG025058, FVGUN3141, G025058, GMTX010034A, GN3141, GU2769, GU3141, GU3141X, GU3441, GU3578, GU7013X, GU7023X, GUN3141, HDV1608B, K12144, K3K12144, KE3141X, KH3141, KH7023X, KWK12144, MA4012, MAMA4012, MMG025058, MW86232, MW86794, MW87156, MW87156B, MW87187, NRX60420, OTR1108B, OTR1608, OTR1608B, P865702, P865714, PB0302206, PC65702, PP65702, PPTYM65702, PX65702, RB03122550, RB03122550002, RB53123565002, RE5270530, RI3219V3417, RI3219V3714, RI3219Y3561, RO3219V3714, RW3219V3417, RY5270530, TX010034A, TY65702, TYM65702, TYTYM65702, W66895, WB66865, WB66865B, WB66865FB, WB66895, WB66895B, WB66895FB, WD66895B, WE66865, WE66895, WE66895B, WE66895F, WE87156, WEB66895B, WW60417DT, WW60417GU, WW60417GUX, WW60417WE, WW60895B, WW65702, WW65702F, WW66865B, WW66895, WW66895B, WW66895F, X60420, XB0302206, XX60417, XX60417BU, XX60417DT, XX60417ER, XX60417GU, XX60417GUX, XX60417RE, ZBR3141, ZSWEB66895B
