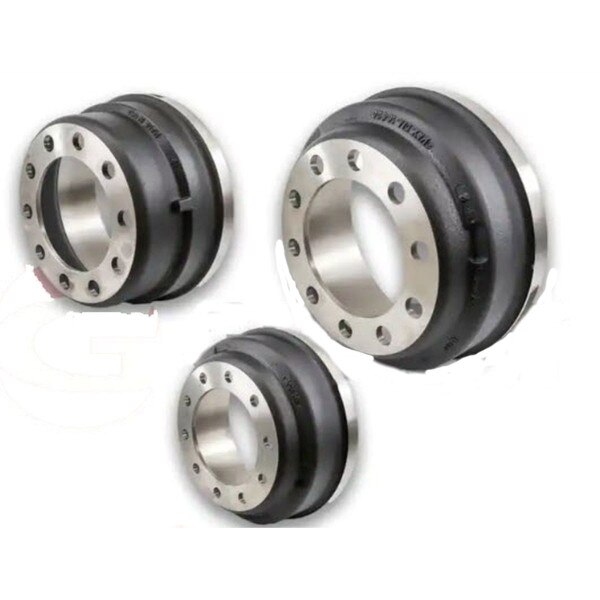

AccuRide DRUM-BRAKE - 8656X

SKU 8656X
$247.09
(0) No Reviews yet

Backordered

Details

Product Description

The Accuride DRUM-BRAKE - 8656X was developed to be the ideal replacement part for your semi-truck. This drum brake from the trucking specialists at AccuRide has a bolt circle diameter, of 12.75 in., a bolt hole diameter of .65 in., and 6 bolt holes. It is made using the long lasting and reliable materials you've come to expect from one of the country's leading manufacturers of commercial truck parts.

Warranty information may be based on the product and application. Please contact us for additional information.

For an amazing way to make sure your heavy-duty vehicle has all the parts it needs to stay running at peak condition, choose the Accuride DRUM-BRAKE - 8656X.


Features

  • Finished Weight: 107
  • Maximum Wear Diameter: 16.52
  • Drum Mount: Inboard
  • Drum Type: AAA
  • Wheel Type: Spoke
  • Overall Diameter: 18.88
  • Brake Size: 16.5 x 7
  • Brake Surface Diameter: 16.5
  • Brake Surface Width: 7.31
  • Mounting Flange Diameter: 14.38
  • Overall Depth: 7.93
  • Pilot Diameter: 11
  • Bolt Circle Diameter: 12.75
  • Number of Bolt Holes: 6

Includes

One (1) AccuRide DRUM-BRAKE - 8656X


Cross Reference

120155, 120728, 120743, 122600, 12743, 13120155, 13120743, 13122600, 1516716, 16907, 17QJ3182AP5, 17QJ3182BPA, 17QJ3182P4, 17QJ3182P5, 17QJ3200A, 17QJ3208P2, 17QJ323235, 17QJ3235, 17QJ3248, 17QJ441DP5, 17QJ441EP5, 17QJ441FP5, 17QJ441FP7, 17QJ441GP5, 17QJ441GP7, 17QJ441JP5, 17QJ441KP5, 2156A, 2540B, 3012743, 3122600, 3122600002, 3219B1614, 33982542, 5134801, 5134811, 5190301, 5195201, 5195211, 60008RE, 60032, 60032WE, 60410, 60489, 60489DT, 60489ER, 60489GU, 60489WE, 60575, 61787, 61856, 61858, 65716, 68897, 68897B, 68897F, 68898F, 85824, 8656X, 86807, 87189, 87192, 87419, 97097, AW97097, CS8656, DA120155, DA120728, DA120743, DA122600, DAY122600, DN03122600, DN122600, DP03122600, DP03122600002, DP120155, DP120743, DP122600, DP13120155, DR120155, DR120743, DR122600, DR16907, DR2286, DR2292, DR2542, DR3196, DR4405, DR51903, DR68897, DR8656, DR97097, DRX60481, DT03012743, DT03122600, DT120743, DT122600, DT12743, DT13120743, DT13122600, DU16907, DW120155, DW120743, DW122600, DW2542, DW3196, DW8656, GN8656, GU1824, GU2156A, GU2286, GU2540B, GU2542, GU3196, GU8656, GUN8656X, KH2542, KH8656, MK17QJ3182AP5, MK17QJ3182BPA, MK17QJ3182P4, MK17QJ3182P5, MK17QJ3200A, MK17QJ3208P2, MK17QJ323235, MK17QJ3235, MK17QJ3248, MK17QJ441DP5, MK17QJ441EP5, MK17QJ441FP5, MK17QJ441FP7, MK17QJ441GP5, MK17QJ441GP7, MK17QJ441JP5, MK17QJ441KP5, MK33982542, MW85824, MW86807, MW87189, MW87192, MW87419, NRX60032, NRX60481, P865716, PC65716, PP65716, PPTYM65716, PX65716, RB03122600002, RE5134801, RE5134811, RE5190301, RE5195201, RS3219B1614, RY5190301, RY5195201, RY5195211, TY65716, TYM65716, TYTYM65716, WB68897, WB68897F, WE60575, WE61787, WE61856, WE61858, WE68897, WE68897F, WW60489DT, WW60489GU, WW60489WE, WW68897, WW68897F, X60032, X60481, XX60008, XX60008RE, XX60032WE, XX60410, XX60489, XX60489DT, XX60489ER, XX60489GU, XX60489WE, Y122600


Specifications

BrandAccuride
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
BenefitsMade using long lasting and reliable materials.
