Webb K Wheel Drum, 8.78 Inch Pilot - 66864F

Product Description

Your wheel end and brake components may be failing if you feel vibrations in the steering wheel and/or brake pedal. Failing parts, such as wheel hubs, could also be the result of weak wheel bearings that are either too old or contaminated by elements such as water or dirt. When in need of replacement wheel and brake parts for your big rig, choose to buy Webb Wheel!

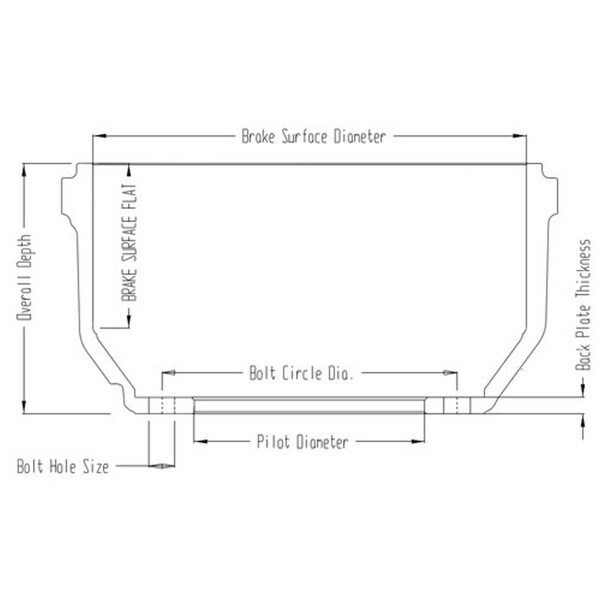

This wheel drum is designed for heavy-duty applications. This "K" drum with outboard mount contains a brake shoe width of 7 inches and back plate thickness of .48 inches. Its brake surface diameter measuring 16.5 inches with a brake surface flat measurement of 7.54 inches. Its overall depth measures 10.52 inches and its pilot diameter measures 8.78 inches, as well. Lastly, it features a bolt circle diameter of 11.25 inches with 10 bolt holes that are 1.00 inch in size and offers a maximum wear diameter measuring 16.62 inches.

Length of warranty depends on product and application type. Most calipers, for example, come with a two year warranty. Contact us to learn more.

For over seven decades, Webb Wheel has been a top choice for wheel end customers; and it's no wonder why. Webb offers quality aftermarket wheel hubs, calipers and other wheel parts for all kinds of heavy-duty trucks and trailer applications at affordable costs.Webb is best known for their Vortex‚® brake drums; LifeShield‚3/4‚ protection products; and Air disc brakes. When looking for replacement wheel end parts for your heavy-duty everything, shop Webb Wheel!

Features

• Outboard mount
• Brake shoe width of 7 inches
• Back plate thickness of .48 inches
• Brake surface diameter measuring 16.5 inches
• Brake surface flat measurement of 7.54 inches
• Overall depth measures 10.52 inches
• Pilot diameter measures 8.78 inches
• Bolt circle diameter of 11.25 inches
• 10 bolt holes
• 1.00 inch in size
• Maximum wear diameter measuring 16.62 inches

Includes

wheel drum

Warranty

Length of warranty depends on product and application type. Most calipers, for example, come with a two year warranty. Contact us to learn more.

Cross Reference

010134506-4, 018045AA, 018045CA, 018124A, 018124B, 03-00043, 03-0004303-05449, 03-05449, 03-123207, 03-123207-005, 03-123788-002, 0300043, 03123207, 03123207002, 10-12542-000, 10-12542-000PLUS, 10-13759-000, 10001776, 10001778, 10001800, 10009830, 100098301, 10009830A, 1000BD16701, 10010075, 100206B, 100206U, 10030774, 10033071, 10037763, 10037819, 10037991, 1012542000, 1012542000PLUS, 10134509, 1013759000, 10234504, 106165, 107150, 107150; KIC: 54261-018, 107193, 107193E, 107885, 1083209, 1091370, 109681251, 1139069MTM, 1143B, 11604, 118045GA, 118045HB, 118045KB, 118045LB, 118124D, 118124E, 118124F, 118124G, 1202437, 123022, 123207, 123365, 123399, 123400, 123404, 123416, 123537, 123537; Webb: 66864B(F), 1238660, 1250005, 1250546B000, 12608, 13-00043, 1300043, 1302417, 1302467, 13104765, 13123207, 131235370, 1316546, 1367383MTM, 14626ADV, 14QK-424M, 14QK410M, 151.3922X, 151.6700, 151.6700BA, 151.6726BA, 15127501, 1516602BA, 1516607BA, 1516700, 1516700BA, 1516726BA, 16-16765-000, 16162, 1616765000, 1621677C1, 1648360C1, 165X7BDRUM, 16721, 16770, 16777, 16781, 16792, 16792X, 16824-01, 1682401, 16965, 1746163, 18165-01, 1816501, 19824-01, 1982401, 1C34-18045-AA, 1C34-18045-JA, 2010238C1, 203 123207 002, 20570098, 213-1690, 2131690, 218045DA, 218124C, 230-8709, 2308709, 2308712, 2335-65162F, 2335-66864F, 2335-76864B, 233565152B20, 233565162F, 233566864B20, 233566864F, 233566864F20, 233576864B, 235-9002, 235-9002S, 2359002, 2359002S, 23614-01, 242018, 25161, 25625187, 25625234, 25632561, 2605072C1, 2608681C1, 2764-5, 27645, 2808075, 290465, 300-1316546, 300043, 3001316546, 301456, 301457, 301565, 301627, 301630, 305449, 306613, 3123022, 3123207, 3123207002, 3123207005, 3123365, 3123788002, 315400, 315432, 315542, 315543, 315554, 315611, 315612, 315614, 318-06-100, 31806100, 3188224, 3199941, 3199944, 3219-W-5821, 3219W5821, 3398-3401X, 3398-3687X, 33983401X, 33983600A, 33983687X, 33983922X, 33983922XTL, 3401X, 341627, 34183201, 345616, 34768, 34901, 3518307, 3518323, 3520485, 3570A, 3570AX, 3576X, 35901-0001, 35901-3413, 359013413, 3600A, 3600AX, 3600B, 3600P, 3687X, 36BD00AB, 3773X, 3853A, 3919574, 3919941, 3919947, 3922X, 3946066, 3HR582MTM, 3U2Z18124BAA, 3U2Z18124FAA, 3U2Z18124YAA, 4000X; Motor Wheel: 89996B CM 10009830 CM10009830, 410021, 410022, 410035, 42013918, 42021815, 434241, 436137, 438015, 43877, 4400B, 45139C-Y, 45139CY, 45139Y, 471700000000, 471700000000000, 471700000428, 471700000461, 471700003009, 471700131545, 471700131775, 472000000000, 47200000000000, 4865719, 508-68, 50866, 50868, 50872, 517-05009-14, 519008, 519301, 519302, 53-123537, 53-123537-002, 53033, 53033-01, 5303301, 53033018, 53039, 53040, 53123537, 53123537002, 53123607002, 5313537002, 5323537002, 533033-01, 53303301, 5420201, 54242-018, 54242018, 54248-018, 54248018, 54261-018, 54261018, 54348-018, 54348018, 551001, 557001, 557015, 56864, 56864B, 56864BZ, 57365-111, 57365111, 57366861, 57905-2, 579052, 58034, 59018, 59031, 5966-90044025, 5C3Z18124JA, 5U2Z18V124AA, 5U2Z18V124CAA, 5U2Z18V124GA, 5U2Z18V125AE, 5U2Z18V125AF, 5U2Z18V125BGA, 5U2Z18V125G, 60000-018, 60000018, 60001-01, 60001-018, 60001-018(10)(108); Gunite: 3600AX, 60001-018(10)(108); Meritor: 123207, 6000101, 60001018, 600084, 600084STM, 60231508, 60670-006, 60675-004, 60675004, 60793, 60793MW, 60794, 60794DT, 60794GU, 60794MW, 60794WE, 60864B, 60998-001, 60998-003, 60998001, 60998003, 61120, 61120DT, 61143GU, 61221GU, 61272WE, 61290BWE, 618045MA, 618124MA, 62671F, 638312, 65111, 65114, 65152B, 65152B20, 65162B, 65162F, 65170B, 65401, 65420, 65435, 65459, 65482, 654896, 654899, 65505, 65515, 65516, 65701, 65701F, 65719, 65719PB, 65726PB, 659155, 665190, 665465, 665532, 665632, 665784, 665927, 66614, 66672, 66710, 66774, 66861, 66864, 66864B, 66864B20, 66864F-WW, 66864F20, 66864FFX, 66864FWW, 66874, 66874B, 66884, 66884B, 66884B(F), 66884F, 66898, 671779, 680-323-0300, 680279, 6803230300, 680328, 680505, 680617, 69549B, 69671, 69673, 69712, 69996, 69996B, 7006X, 70127, 70128, 70397, 70648, 70721, 727601, 727613, 727636, 728618, 76864B, 76864B(BW); 54261-018, 77807BW, 7843-89996B, 7C3418045HB, 8071947, 8075B, 813065, 8161808, 8219326, 8235-53123537002, 823585123365002, 82401148, 83104, 83122, 83125, 83147, 83176208, 83201, 83209, 83213, 83215, 83309, 85-123207-002, 85-123788-002, 85006, 85006GBL, 85013A0C, 85036, 85038, 85043, 85097, 85104186, 85123207002, 85123400002, 85123788002, 85337, 85717, 85901, 85991, 88-1457-SP1, 88-1468, 88-1558, 88-5162, 8901032, 89401, 89403, 89405, 89406, 89414, 89446, 89876, 89996, 89996B, 90-2251, 90-2563, 90044012, 90044625, 9006X, 902563, 904303, 91538, 96864B, 973816, 973841, 974206, 974318, 974482, 98583-016, 98583-020, 99864, 9U94-18045-AA, 9U9Z-18124-A, A-2471, A-4089, A1657VB, A2471, A85006, A85901, AA450, AA483, AA485, AA500, AA501, ABPN42A, ABPN42A10009830, ABPN42A107150, ABPN42A1657NB, AMS600108, AMS600114, AMS600142, AMS600154, AMS600174, AMS650111, AMS650114, AMS650401, AMS650420, AMS650435, AMS650482, AMS660108, AMS660114, AMS660142, AMS660174, AMS660244, AMS85768, AR-1008, AR1008, AS546B, ASH-1022, ASH-1205, ASH-1228, ASH-294, ASH119, ASH120, ASH24401, ASH24433, ASH335, ASH387, ASHV1028, ASHV6, ASHV865, ASHV866, ASHV871, AT-620, AT-766, AT547, AT683, AX267A, B46-1594, BD16.5X7BM, BD16.5X7BML, BD165X7BM, BD165X7BML, BD6864U, C-25162, C25161, C25162, C8TA18045AA, CAT-768, CAT730, CAT953, CAX-894, CAX-898, CAX898, CD89996B, CM10001776, CM10009830, CM10037763, CM107193, CMT10001776, CMT10009830, CNM10009830, CNM10037763, CON10009830, ConMet: 10001776, D7HA18080AA, D8HZ18125B, D:DB1657B, DAY123207, DB1657B, DB1657BSTW, DB1657U, DB1657USTW, DDB1657B, DN03123022, DN03123207, DN03123207002, DN03123365, DN123022, DN123207, DN34183201, DN53123537, DN89996B, DP03123207, DP123207, DP53123537002, DPM65111, DPM65435, DPM65482, DPM66861, DPM66884, DR123207, DR16792, DR3687, DR62671, DR65701, DR66864, DR66864B, DR97173, DT03123207002, DT03123365, DT123207, DT123365, DT13123207, DU16792, DU60793, DU6185, DW03123207002, DW123207, DW123537, DW53123537002, DW5323537002, E3131, E531123537, E60024, E7XZ18125G, E83201, E83205, E83209, E83213, E83309, E85006, E85013, E9HZ-1126-A, E9HZ1126A, ECEMN66861, EIE3131, EIE83201, EIE83213, EIE83309, EIE85006, EIEMN66861, EIEMN66884, EIEMN66898, EMN34901, EMN65111, EMN65435, EMN66861, EMN66884, EMN66898, EMN6901, EMNEMN65111, EOEUE89401, ER27645, EU03123207002, EU34901, EU53123537, EU53123537002, EU65111, EU65435, EU66861, EU66898, EUE531123537, EUE60024, EUE83213, EUE83309, EUE85006, EUE89401, EUEMN34901, EUEMN65111, EUEMN65435, EUEMN66861, EUEMN66884, EUEMN66898, EUEMNEMN65111, EUSA34901, EUSA65111, EUSA65435, EUSA66861, EUSA66884, F0HS-18045-AA, F0HS18045AA, F0HT-18045-AA, F0HT-18045-CA, F0HT18045AA, F0HT18045CA, F0HZ-18124-A, F0HZ-18124-B, F0HZ18124A, F0HZ18124B, F1HT-18045-GA, F1HT-18045-HB, F1HT-18045-KB, F1HT-18045-LB, F1HT18045EA, F1HT18045EB, F1HT18045GA, F1HT18045GB, F1HT18045HB, F1HT18045KB, F1HT18045LB, F1HT18045RB, F1HZ-18124-D, F1HZ-18124-E, F1HZ-18124-F, F1HZ-18124-G, F1HZ18124D, F1HZ18124E, F1HZ18124F, F1HZ18124G, F224935, F2HT-18045-DA, F2HT18045DA, F2HZ-18124-C, F2HZ18124C, F65111, F65435, F65482, F66861, F66884, F66898, F6898, F6HT-18045-MA, F6HT18045MA, F6HT18124KA, F6HZ-18124-MA, F6HZ18124MA, F81A18045AGB, F81Z18124BK, F87Z18125RA, FF6898, FLF65111, FLF65435, FLF65482, FLF66861, FLF66884, FLF66898, FLS-83125, FLS-83309, FLS-85006, FLS-85901, FLSD66861, FLT-4400B, FLT4400B, FOHT-18045-AA, FOHT-18045-CA, FVGUN3600A, FVGUN3600AX, FVMW89996B, GBL665538, GH53123537002, GN3600A, GN3687, GU3401, GU3401X, GU3570A, GU3570AX, GU3576, GU3576X, GU3593, GU3600, GU3600A, GU3600AX, GU3687, GU3687X, GU89996B, GUN 3600AX, GUN-3600A, GUN-3600AX, GUN-3922X, GUN/3600AX, GUN/3687X, GUN/3922X, GUN3600A, GUN3600AX, GUN3687X, GUN3922X, HDRC25161, HDV1601B, HDV1601BD, HW89996B, HZ1126A, IH1648360C1, K-121-87, K-121-89, K12187, K12189, KE3401, KE3401X, KE3687, KG6415, KH3568, KH3570A, KH3593, KH3600A, KH3600AX, KH3687, KH3687X, KH7006X, KIC60001-018, L59018, L59031, LE66861, LT66898, LTL59018, LTL59031, M16WA165, M65435, M65482, M65505, M66861, M66884, M83309, M85006, M85901, MAC/ZBR3922X, MACZBR3922X, MBSA66861, MBSA66884, MBSA66898, MDA123207, MI34901, MI65435, MI66861, MISA34901, MISA65111, MISA65435, MISA65482, MISA66614, MISA66861, MISA66864, MISA66884, MISA66898, MN34901, MN65111, MN65435, MN66614, MN66861, MN66864, MN66884, MN66898, MN6898, MN6901, MNEMN34901, MNEMN65111, MNEMN65435, MNEMN66861, MNEMN66884, MNEMN66898, MNEMN6901, MNEMNEMN65111, MNSA34901, MNSA65435, MNSA66861, MO34901, MO65111, MO65435, MO66861, MO66864, MO66898, MO6861, MO6898, MON34901, MOT89996B, MR34901, MR66861, MR6901, MS34901, MS53123537002, MS65111, MS65435, MS66861, MS66884, MS66898, MS6861, MS6898, MS85901, MSCD89996B, MSF6898, MSMW89996B, MSWD66864F, MSWW66864F, MTR89996B, MW2308709, MW89996, MW89996B, MW91538, MZ89996B, N34901, N42A10009830, N42A107150, N42A1657NB, N42A1657VB, N65111, N65435, N66861, N66884, N66898, NRX60794, NW57366861, NW6898, NW90044625, ORT1601B, OTR-OTR1656B, OTR1601, OTR1601B, OTR1601BD, OTR1656B, OTR2601B, P865701, P865719, PC65701, PP1601B, PP65701, PP65719, PPTYM65701, PROBD16.5X7, PROBD16.5X7BM, PROBD16.5X7BML, PROBD165X7, PROBD165X7BM, PROBD165X7BML, PX65719, R253123537002, RB03123207002, RB03123365002, RB131235370, RB53123537, RB53123537002, RB5313537002, RD53123537002, RE5303301, REY18165-01, REY1816501, RT18165-01, RT1816501, RWAS546B, RY5303301, RY53033018, RY60001018, S-2240, S-2471, S-4089, S11873, S2471, SA34901, SA65111, SA65435, SA65482, SA66614, SA66861, SA66864, SA66884, SA66898, SD66861, SMR560405, SMR560432, SZ59104002, T4MW89996B, T672448F, T672452F, TDA03123207002, TDA53123537002, TLD103, TLD103V, TY65701, TYM65701, TYTYM65701, UP3518323, UP3520485, UP3946066, UPWGV3946066, V3946066, V910010075, VC85901, W65162F, W66774, W66864F, WB-66864B, WB62671, WB62671F, WB66864, WB66864B, WB66864F, WB66864FB, WB66884, WB66884B, WB66884F, WB66884FB, WB69996, WB69996B, WB76864B, WD66864F, WE62671, WE62671F, WE65152B, WE65152B20, WE65162B, WE65162F, WE66864, WE66864B, WE66864B20, WE66864F, WE66864F20, WE66884, WE66884B, WE69996, WE69996B, WE99864, WEB-66864F, WEB/DB1657B, WEB/DU60793, WEB65152B, WEB65162F, WEB66864B, WEB66864B20, WEB66864F, WEB66864F20, WEB76864B, WEBDB1657B, WEBDU60793, WGV3946066, WLT-03-00043, WLT-13-00043, WLT0300043, WLT1300043, WP66864B20, WSA0083309, WSA0085005, WSA0085006, WSA0G60024, WW60794DT, WW60794GU, WW60794WE, WW60864B, WW61143GU, WW61221GU, WW61272WE, WW62671, WW62671F, WW65152, WW65152B, WW65162F, WW65701, WW65701F, WW66864, WW66864B, WW66864F, WW66884, WW66884B, WW66884F, WW69549B, WW69996B, WW89996B, WWD 56864BD, WWD56864BD, WWD65162F, WWD66864B, WWD66864F, WWD76864B, WWD77807BW, WWP65162F, WWP66864B20, WWP66864F, WWP76864B, X-60793, X-60794, X-61290, X-61320, X60600, X60793, X60793B, X60794, X60794B, X61221, X61290, X61320, X85123207, X:85123207, XB-SPN-053-36, XBSPN05336, XCO31921, XX60793, XX60793MW, XX60794DT, XX60794GU, XX60794MW, XX61120, XX61120DT, XX61143GU, XX61221GU, XX61272WE, XX61290BWE, XZ89996B, Y123207, ZBR3600A, ZBR3600AX, ZBR3600E, ZBR3922X, ZBR9006X, ZYWSA0083309, ZYWSA0085005, ZYWSA0085006, ZYWSA0G60024
