MGM MJS3024ET Brake Chamber - MJS3024ET051
Details
Product Description
Early signs of failing spring brake chambers often go unnoticed without visual inspection. When performing routine maintenance on your semi-truck or other commercial vehicle, you may want to check to see if the brake chamber rod is bent; isn't fully retracting or chamber and slack adjusters are out of adjustment. It could be time for a replacement. After all, brake chambers should be replaced every two-five years.

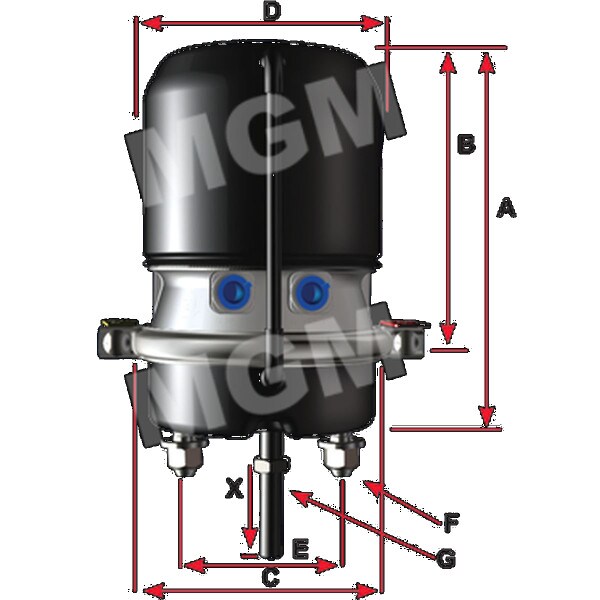

This MJS3024ET s-cam brake chamber with breather tube is designed for piston, parking brakes. This MJS 3 inch model features a tamper-resistant design and a 3 inch long stroke. Its compact size and new patented integral release bolt mechanism makes it desirable for commercial vehicles. It contains a minimum bolt protrusion (1.25 inches on long stroke models when manually released); a non-coil clash power spring and corrosion-resistant steel head - epoxy-coated. This aftermarket unit s-cam brake with breather tube features a 3 inch long stroke; port sizes of 3/8-18 inches; 5/8-11 mounting bolt thread and a 1.54 inch mounting bolt length. Service size is 30 and spring size is 24. It's "A" measurement is 10.32 inch; "B" measurement is 7.94 inches; "C" measurement is 8.32 inches; "D" measurement is 6.76 inches; "E" measurement is 4.75 inches; "F" measurement is 5/8-11 UNC; "G" measurement is 5/8-18 UNF and inlets are 3/8 - 18 NPTF. X-min measures 8 inches.
MGM's limited warranty depends on product and application. Contact us to learn more!
Since 1956, MGM has been a top solution provider of quality spring brake actuator technology and electronic brake monitoring systems servicing trucks, buses, and other types of heavy-duty commercial vehicles. When in need of replacement air disc brake parts and components for your heavy-duty application, turn to MGM Brakes!
Features
- 3 inch long stroke
- Port sizes of 3/8-18 inches
- 5/8-11 mounting bolt thread
- 1.54 inch mounting bolt length
- Service size is 30
- Spring size is 24
- "A" measurement is 10.32 inch
- "B" measurement is 7.94 inches
- "C" measurement is 8.32 inches
- "D" measurement is 6.76 inches
- "E" measurement is 4.75 inches
- "F" measurement is 5/8-11 UNC
- "G" measurement is 5/8-18 UNF
- Inlets are 3/8 - 18 NPTF
- X-min measures 8 inches
Includes
MJS3024ET s-cam brake chamber with breather tube
Warranty
MGM's limited warranty depends on product and application. Contact us to learn more!
Cross Reference
8160932, MGMJS3024EP051, MGMJS3024ET051, MJS3024EP051, MJS3024EPT051, S3024EP051, S3024EPT051, S3024ET051
Specifications
| Brand | mgm brakes |
| Supersedes | 8160932 |
| Model Number | MJS3024ET |
| MPN | MJS3024ET051 |
| Width | 9 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 21.5 in. |
| Benefits | This MJS3024ET s-cam brake chamber with breather tube is designed for piston, parking brakes. This MJS 3 inch model features a tamper-resistant design and a 3 inch long stroke. Its compact size and new patented integral release bolt mechanism makes it desirable for commercial vehicles. It contains a minimum bolt protrusion (1.25 inches on long stroke models when manually released); a non-coil clash power spring and corrosion-resistant steel head - epoxy-coated. This aftermarket unit s-cam brake with breather tube features a 3 inch long stroke; port sizes of 3/8-18 inches; 5/8-11 mounting bolt thread and a 1.54 inch mounting bolt length. Service size is 30 and spring size is 24. It's "A" measurement is 10.32 inch; "B" measurement is 7.94 inches; "C" measurement is 8.32 inches; "D" measurement is 6.76 inches; "E" measurement is 4.75 inches; "F" measurement is 5/8-11 UNC; "G" measurement is 5/8-18 UNF and inlets are 3/8 - 18 NPTF. X-min measures 8 inches. |
