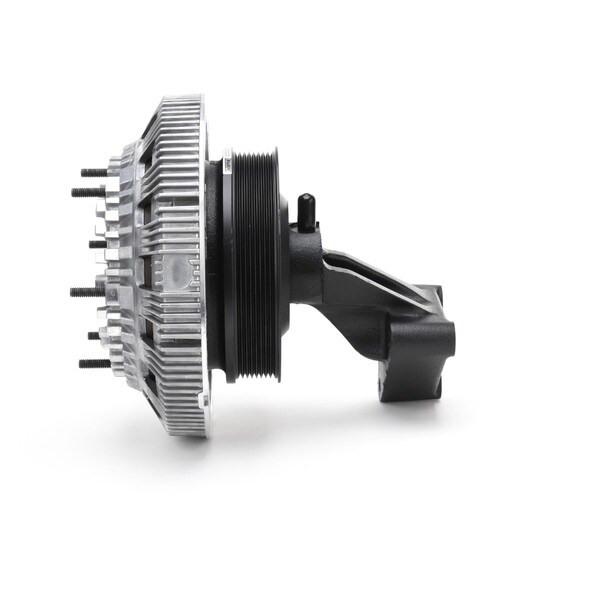

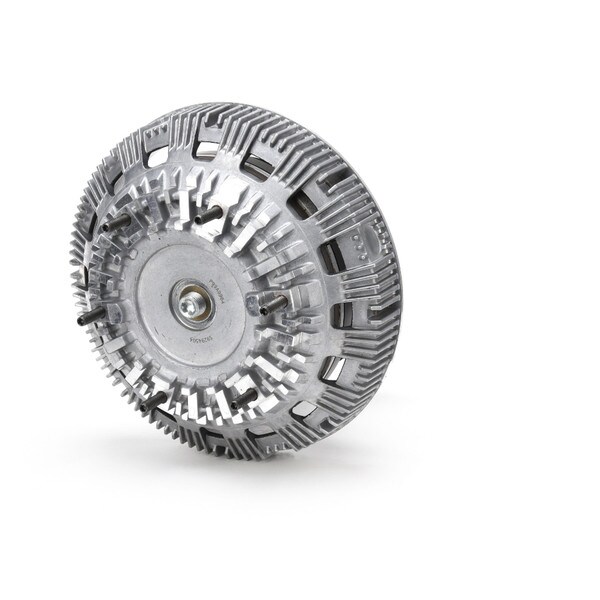

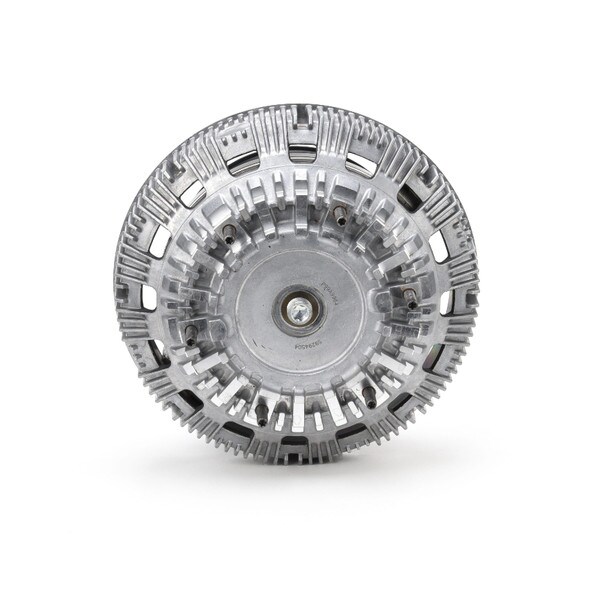

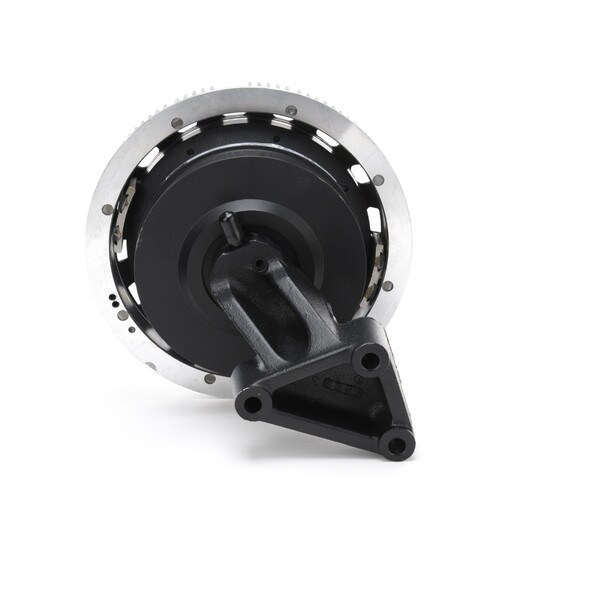

Horton Clutch DMADV2S 175.3, 8 Pack - 99A9964
Details
Product Attributes
| BACK PULLEY DIAMETER | 6.9 IN |
| BELT CONFIGURATION | 8 PK |
| Belt Groove Location | 5.51 IN |
| BOLT CIRCLE | 6 IN |
| Center of JB To Top Right Mounting Hole | 2.16 IN |
| Fan Blade Stud Length | 1.05 IN |
| FAN PILOT DIAMETER | 5 IN |
| Heavy Duty | TRUE |
| HORIZONTAL MOUNTING DISTANCE | 3.58 IN |
| Overall Length | 10.31 IN |
| Stud Thread Size | .312-18 IN |
| VERTICAL MOUNTING DISTANCE | 2.76 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8483604040 |
| Harmonized Tariff Code (HTS) | 8483604040 |
| NAFTA Preference Criterion Code | B |
| OEM's Part Number | 98A9964 |
| Warranty Distance | 300000 |
| Warranty Distance UOM | DH |
| Warranty Special | 7500 Hours |
| Warranty Special UOM | TX |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| VMRS Code | 042003131 |
