MGM CS20L S-cam Brake - 1621901X
Details
*THIS PART IS NON-RETURNABLE*
Product Description
Early signs of failing spring brake chambers often go unnoticed without visual inspection. When performing routine maintenance on your semi-truck or other commercial vehicle, you may want to check to see if the brake chamber rod is bent; isn't fully retracting or chamber and slack adjusters are out of adjustment. It could be time for a replacement. After all, brake chambers should be replaced every two-five years.

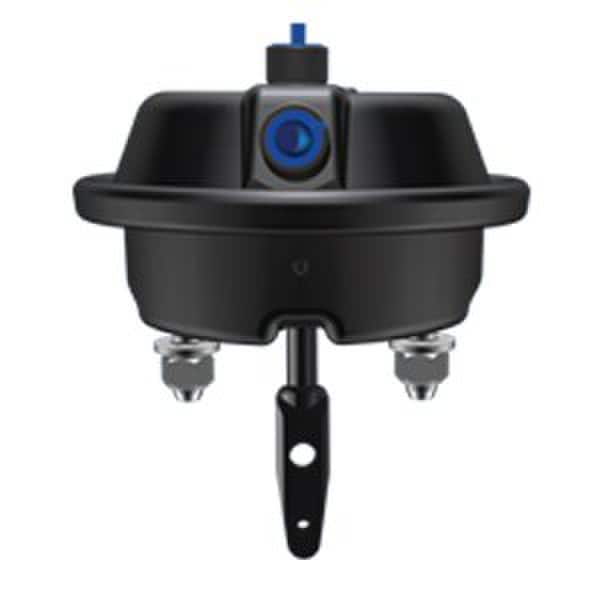

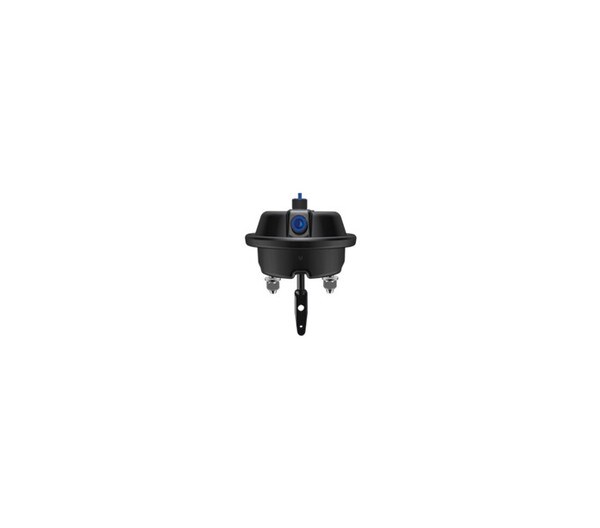

This CS20L S-cam brake (drum) is designed for heavy-duty commercial vehicles. CS models feature a formed steel pressure cap (epoxy-coated - CS20 models have zinc iron chomate coating) and formed steel non-pressure chamber (epoxy-coated). It also features heavy-duty nylon diaphragms. Its top and side air ports measure 3/8-18 inches NPTF and it contains the added benefit of a center hole shield. This sealed S-cam brake drum chamber with long stroke and welded yoke contains a 2.5 inch stroke; 5/8-11 inch mounting bolt thread and 1.53 mounting bolt length. Service size is 20. Its "A" measurement is 4.37 inches; "B" measurement is 3.63 inches; "C" measurement is 7 inches and "D" measurement is 4.75 inches. Its "E" measurement is 5/8-11 UNC; "F" measurement is 5/8- 18 UNF. Inlets measure at 3/8 inches - 18 NPTF. Y measures 2.25 inches.
MGM's limited warranty depends on product and application. Contact us to learn more!
Since 1956, MGM has been a top solution provider of quality spring brake actuator technology and electronic brake monitoring systems servicing trucks, buses, and other types of heavy-duty commercial vehicles. When in need of replacement air disc brake parts and components for your heavy-duty application, turn to MGM Brakes!
Features
- Welded yoke
- 2.5 inch stroke
- 5/8-11 inch mounting bolt thread
- 1.53 mounting bolt length
- Service size is 20
- "A" measurement is 4.37 inches
- "B" measurement is 3.63 inches
- "C" measurement is 7 inches
- "D" measurement is 4.75 inches
- "E" measurement is 5/8-11 UNC
- "F" measurement is 5/8- 18 UNF
- Inlets measure at 3/8 inches - 18 NPTF
- Y measures 2.25 inches
Includes
CS20L S-cam brake (drum)
Warranty
MGM's limited warranty depends on product and application. Contact us to learn more!
Cross Reference
Mgm Brakes 1621901X Cross References
1621010, 1621901, 1621901X, 179.SC20LW225, 179SC20LW225, 20SCLW2, 3521994, 3523586, 5554-1621901, 55541621901, 85103654, A953276T20, BXK058715, K058715, K058715BXW, MG1621901, MGM1621901, MGMZAJ1621901, OTR20WC, S127200215, SC20LCW, SC20LW225, WA20SC3, ZAJ1621901
Specifications
| Brand | mgm brakes |
| Model Number | CS20L |
| MPN | 1621901X |
| Width | 7.5 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 8 in. |
| Benefits | This CS20L S-cam brake (drum) is designed for heavy-duty commercial vehicles. CS models feature a formed steel pressure cap (epoxy-coated - CS20 models have zinc iron chomate coating) and formed steel non-pressure chamber (epoxy-coated). It also features heavy-duty nylon diaphragms. Its top and side air ports measure 3/8-18 inches NPTF and it contains the added benefit of a center hole shield. This sealed S-cam brake drum chamber with long stroke and welded yoke contains a 2.5 inch stroke; 5/8-11 inch mounting bolt thread and 1.53 mounting bolt length. Service size is 20. Its "A" measurement is 4.37 inches; "B" measurement is 3.63 inches; "C" measurement is 7 inches and "D" measurement is 4.75 inches. Its "E" measurement is 5/8-11 UNC; "F" measurement is 5/8- 18 UNF. Inlets measure at 3/8 inches - 18 NPTF. Y measures 2.25 inches. |
