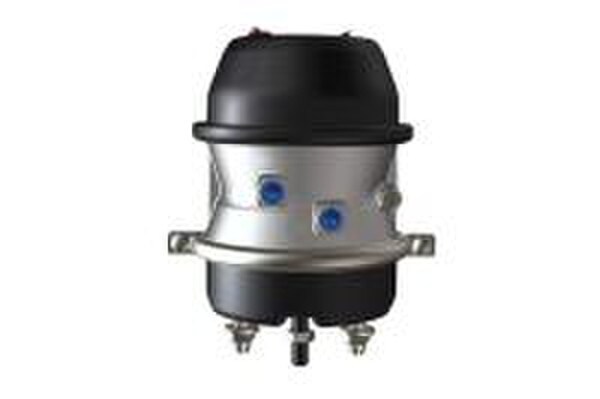

MGM TR3030LP3HD S-cam Brakes Chamber -3232951 / TR3030LP3HD - 3232951
Details
Product Description
Early signs of failing spring brake chambers often go unnoticed without visual inspection. When performing routine maintenance on your semi-truck or other commercial vehicle, you may want to check to see if the brake chamber rod is bent; isn't fully retracting or chamber and slack adjusters are out of adjustment. It could be time for a replacement. After all, brake chambers should be replaced every two-five years.
This TR3030LP3HD S-cam brakes chamber is designed for parking brakes. The TR-LP3HD model with composite guide-corrosion fighter technology features a tamper-resistant design and center hole diaphragm. It contains an epoxy-coated head and return spring (spring size is 30) as well as a center hole shield and weather-seal plug. With stroke alert, it has the added benefit of a 3 inch long stroke; molded nitrile rubber air seal and heavy-duty power spring at 145 pounds and additional parking brake force at 1.25 inches of stroke. This long stroke double diaphragm s-cam brake drum chamber with welded yoke contains 3/8-18 inch NPTF port sizes and a service size of 30. It's "A" measurement is 9.99 inches; "B" measurement is 7.61 inches; "C" measurement is 8.32 inches; "D" measurement is 8.21 inches; "E" measurement is 4.75 inches; "F" measurement is 5/8-11 UNC and inlets are 3/8 -18 NPTF. Y measures 2.25 inches.
MGM's limited warranty depends on product and application. Contact us to learn more!
Since 1956, MGM has been a top solution provider of quality spring brake actuator technology and electronic brake monitoring systems servicing trucks, buses, and other types of heavy-duty commercial vehicles. When in need of replacement air disc brake parts and components for your heavy-duty application, turn to MGM Brakes!
Features
- Welded yoke
- 3/8-18 inch NPTF port sizes
- Service size of 30
- "A" measurement is 9.99 inches
- "B" measurement is 7.61 inches
- "C" measurement is 8.32 inches
- "D" measurement is 8.21 inches
- "E" measurement is 4.75 inches
- "F" measurement is 5/8-11 UNC
- Inlets are 3/8 -18 NPTF
- Y measures 2.25 inches
Includes
TR3030LP3HD S-cam brakes chamber
Warranty
MGM's limited warranty depends on product and application. Contact us to learn more!
Cross Reference
3232951X, 5554-3232951X, 55543232951X, 655 ZAJ3232951, MGM3232951X, V42 3232065, ZAJ3232951X
Specifications
| Brand | mgm brakes |
| Model Number | TR3030LP3HD |
| MPN | 3232951 |
| Width | 1 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 1 in. |
| Benefits | This TR3030LP3HD S-cam brakes chamber is designed for parking brakes. The TR-LP3HD model with composite guide-corrosion fighter technology features a tamper-resistant design and center hole diaphragm. It contains an epoxy-coated head and return spring (spring size is 30) as well as a center hole shield and weather-seal plug. With stroke alert, it has the added benefit of a 3 inch long stroke; molded nitrile rubber air seal and heavy-duty power spring at 145 pounds and additional parking brake force at 1.25 inches of stroke. This long stroke double diaphragm s-cam brake drum chamber with welded yoke contains 3/8-18 inch NPTF port sizes and a service size of 30. It's "A" measurement is 9.99 inches; "B" measurement is 7.61 inches; "C" measurement is 8.32 inches; "D" measurement is 8.21 inches; "E" measurement is 4.75 inches; "F" measurement is 5/8-11 UNC and inlets are 3/8 -18 NPTF. Y measures 2.25 inches. |
