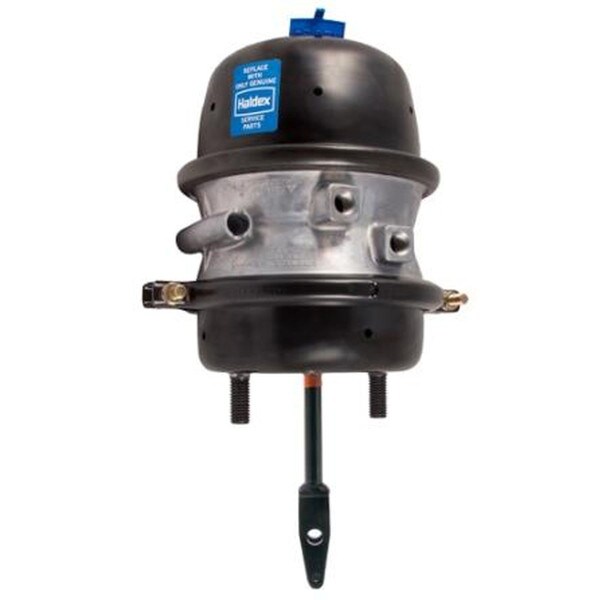

Haldex Gold Seal Long Stroke Combination Spring Brake Assembly with Clevis - GC2430XLCW
Details
*THIS PART IS NON-RETURNABLE*
Product Description
Spring brakes and their subsequent parts are generally reserved for the rear axle of the vehicle. Each spring brake is built with two different chambers with two different purposes. The service chamber, like any other brake chamber, is used to push the compressed air through the brake system to apply enough force to stop the brakes. However, spring brakes also contain a piggyback chamber that applies the emergency/parking brakes. Spring brakes are vital for emergency situations, so it's important that you find reliable parts with plenty of power.
This Haldex Gold Seal Series Spring Brake Actuator is built with power spring technology superior to other aftermarket spring brakes. It's built with a world-class flexible diaphragm that operates in temperatures as low as -40 degrees Fahrenheit. Within this spring brake is a double O-ring center seal and a self-piloting dust shield that extends the seal and the actuator life. This specific actuator has size T24/30 brake chambers with a pushrod length of 1 inches. Its stroke size comes in at 3 inches and it's classified as an extra long stroke brake chamber. This actuator also comes with a clevis.
This product comes with a four year, unlimited mile warranty.
Haldex is a major provider of innovative solutions for brakes to heavy duty vehicles across the globe. Haldex aims to bring the safest and most dynamic brake parts to your truck, creating a world of safer vehicles for generations to come. For unique products to operational excellence, choose Haldex to drive your future.
Features
- Gold Seal Series Combination Spring Brake Actuator
- Power Spring Technology that's superior to other aftermarket spring brakes
- World class flexible diaphragm at temperatures as low as -40 degrees Fahrenheit
- Double O-ring Center seal that extends seal and actuator life
- Built with a self-piloting Dust Shield
- Size T24/30 Brake Chamber
- Extra Long Stroke
- 3.0 in. Stroke Size
- 1 in. Push Rod Length
- Comes With Clevis
- 4 Year, Unlimited Mile Warranty
Includes
One (1) Combination Spring Brake Assembly and One (1) Clevis
Warranty
Four (4) Year, Unlimited Mile Warranty
Cross Reference
Haldex GC2430XLCW Cross References
3224951, 5396-GC2430XLCW, 5396GC2430XLCW, GC2430XLCWM1D, HDXGC2430XLCW, MIDGC2430XLCW, ZZGC2430XLCW
Specifications
| OE Manufacturer | Haldex |
| Series | 8109 |
| Brand | Haldex |
| Stroke | 3.00 in. |
| MPN | GC2430XLCW |
| VMRS | 013-004-027 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Type / Style | T24/30 |
| Benefits | This Gold Seal Series Spring Brake Actuator is built with power spring technology that's superior to any other aftermarket spring brakes. It's built with a world class flexible diaphragm that operates even in temperatures as low as -40 degrees Fahrenheit. Within this spring brake is a double O-ring center seal and a self-piloting dust shield that extends the seal and the actuator life. This specific actuator has size T24/30 brake chambers with a pushrod length of 1 inches. Its stroke size comes in at 3 inches and it's classified as an extra long stroke brake chamber. This actuator also comes with a clevis in it's assembly. |
