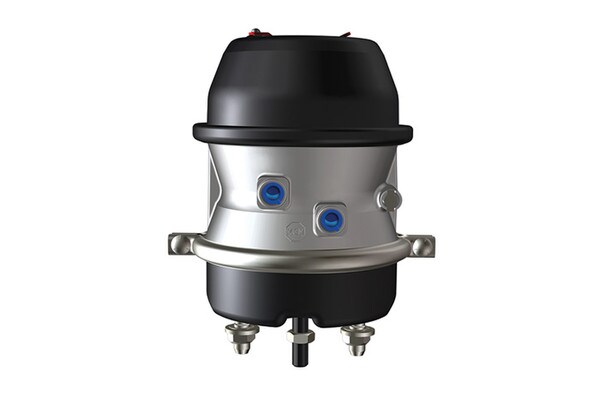

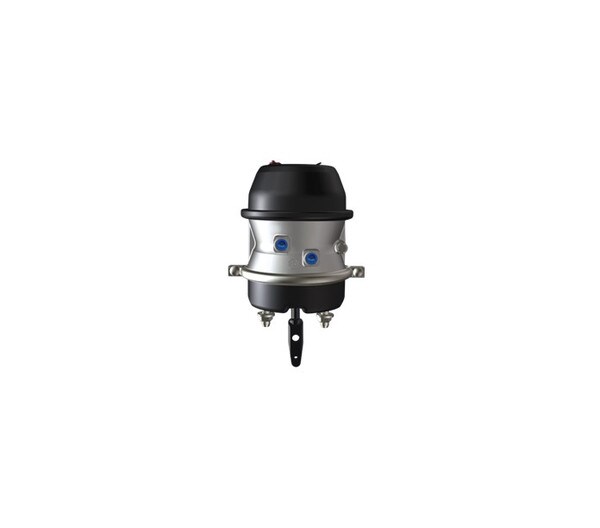

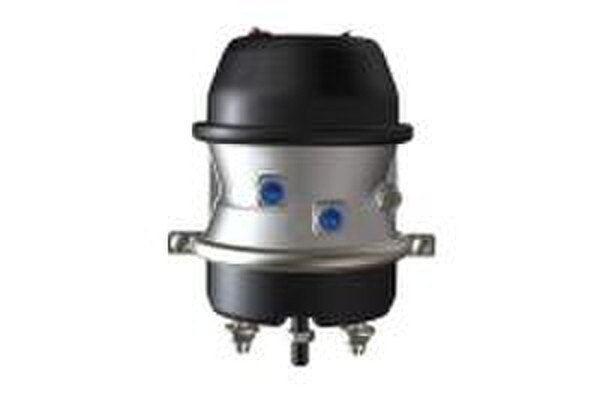

MGM TR3030LP3 S-cam Brakes Chamber - 3230951X

Product Description

Early signs of failing spring brake chambers often go unnoticed without visual inspection. When performing routine maintenance on your semi-truck or other commercial vehicle, you may want to check to see if the brake chamber rod is bent; isn't fully retracting or chamber and slack adjusters are out of adjustment. It could be time for a replacement. After all, brake chambers should be replaced every two-five years.

This TR3030LP3 S-cam brakes drum chamber is designed for parking brakes. The TR-LP3 model with composite guide-corrosion fighter technology features a tamper-resistant design and center hole diaphragm. It contains an epoxy-coated head and long life power spring (spring size 30) as well as a weather-seal plug. With an externally stored release bolt, and molded nitrile rubber air seal, it has the added benefit of a 3 inch long stroke. This long stroke double diaphragm s-cam brake drum chamber with welded yoke contains 3/8-18 inch NPTF port sizes and a service size of 30. It's "A" measurement is 9.99; "B" measurement is 7.61 inches; "C" measurement is 8.32 inches; "D" measurement is 8.21 inches; "E" measurement is 4.75 inches; "F" measurement is 5/8-11 UNC and inlets are 3/8 -18 NPTF. Y measures 2.25 inches.

MGM's limited warranty depends on product and application. Contact us to learn more!

Since 1956, MGM has been a top solution provider of quality spring brake actuator technology and electronic brake monitoring systems servicing trucks, buses, and other types of heavy-duty commercial vehicles. When in need of replacement air disc brake parts and components for your heavy-duty application, turn to MGM Brakes!

Features

• Welded yoke
• 3/8-18 inch NPTF port sizes
• Service size of 30
• "A" measurement is 9.99
• "B" measurement is 7.61 inches
• "C" measurement is 8.32 inches
• "D" measurement is 8.21 inches
• "E" measurement is 4.75 inches
• "F" measurement is 5/8-11 UNC
• Inlets are 3/8 -18 NPTF
• Y measures 2.25 inches

Includes

TR3030LP3 S-cam brakes drum chamber

Warranty

MGM's limited warranty depends on product and application. Contact us to learn more!

Cross Reference

046044900000, 1010456, 1010476, 12600365, 12960, 1373030002, 1373030009, 1373030010, 1373030011, 1373030012, 1373030013, 1373030050, 1373030051, 1373030201, 1373030202, 1373030203, 1373030211, 1373030212, 1373030213, 1373030214, 1373030215, 1373030216, 1373030220, 1373030221, 1373030301, 1373030302, 1373030303, 1373030304, 1373030305, 1373030306, 1373030307, 1373030308, 1373030309, 1373030310, 1373030311, 1373030312, 1373030313, 1373030314, 1373030315, 1373030316, 1373030317, 165941, 165944, 165958, 165971, 165984, 165986, 166027, 166033, 166047, 166052, 166056, 166222, 166293, 166360, 166431, 166432, 179SB3030SLW22, 24424204, 24424205, 3030054, 3030099, 3030CLS, 3030GC-LS, 3030GCLS, 3030L, 3030LCB20, 3030LON, 3030LONG, 3030LR, 3030LS, 3030LS-PHD, 3030LSHDA, 3030LSPHD, 3030SBLS, 3030TN3, 3030TN3-CRT, 3030TN3CRT, 3030TN3ULC, 3030TNW3-2273, 3030TSL, 3030XLS, 3090973, 3131230, 3230051, 3230051X, 3230057, 3230551, 3230555, 3230951, 33030C3D, 330783408, 3330051, 3508360C91, 3512207, 3512399, 3523220, 3523379, 3534051, 3832051, 3929131, 3930173, 3930273, 3941956, 40502131, 40502138, 4131171, 4131226, 4131231, 43030C3D, 5010414, 5010435, 5013841, 50866003, 511017, 53030039, 5396-GC3030L, 5396-GC3030LCW, 5396GC3030L, 5396GC3030LCW, 5554-3230051, 5554-3230951X, 55543230051, 55543230051X, 55543230951X, 61170144, 61170145, 61170224, 61170230, 655 ZAJ3230951, 69799, 70799, 767653298023, 767653330990, 802541, 85103137, 85107459, 940010022, ABP/N24A-13030C3D, ABPN24A13030C3D, ABPN42A33030C3D, ABPN42A43030C3D, ABPN42AW3030CD, ACA-40271700, BBH-BTS3030LS, BBHBTS3030LS, BNAR5013841, BTS3030LS, BTS3030LSWC, BW5010414, BW5010435, BWTYPE30, BX5010414, BX5010435, BX802541, BXK022884, BXNT3030ELSWC, CS3857, E-GC3030L, EBC3030CEL, EGC3030L, EPRO3030ELS-80, FLT3030LB20, FLT3030LCB20, FRCC3030L, FRCC3030LB, FRL 42040948, FVMGM3230051, GC30/30, GC3030L, GC3030L-MD, GC3030LCW, GC3030LMD, HALGC3030L, HALGC3030LCW, HD12964C, HD3030C-LS, HD3030CLS, HD3030L, HDVLS30UC, HDX 1373030050, HDX 1373030051, HDX/GC3030LCW, HDX1373030050, HDX1373030051, HDX1373030202, HDXGC3030L, HDXGC3030LCW, IN-1373030051, IN1373030051, K022884, K022884BXW, LC3030L, LC3030LP40, LONGSTROKE, MA15473, MBIGC3030L, MG-3230051, MG3230051, MG3230051X, MG3230951, MG3230951X, MG3534051, MG3832051, MGC3030L, MGM 3230051X, MGM3230051, MGM3230051X, MGM3230951X, MI3030039, MI3030099, MIDGC3030L, MIDGC3030LCW, MIMA15473, N24A-13030C3D, N4630YE, NT3030ELS-80, NT3030ELS-WC, NT3030ELS80, NT3030ELS80DS, NT3030ELS80TC, NT3030ELSWC, NW3030039, NW3030054, NW53030039, OTR OTR3030SBLS, OTR3030LSWC-2.25, OTR3030LSWC-2.26, OTR3030LSWC225, OTR3030LSWC226, OTR3030SB, OTR3030SB-LS, OTR3030SBLS, P3030LS, P:SB3030CL, PF3030TSLS, PL3030LSWCR, PLBTS3030LS, PLBTS3030LSWC-2.25, PLBTS3030LSWC225, PSB3030CL, RBPBTS-3030LS, RBPBTS3030LS, S1373030050, S17204, S17215, SB3030CL, SB3030LS, SB3030LSW, SB33030, SMRC3030L, TYPE30, V42 3230051, V42 3230052, V42 3230951, W3030CD, WA12964, ZAJ3230051, ZAJ3230551, ZAJ3230951X, ZZGC3030L, ZZGC3030LCW
