Bendix Remanufactured M-40HF ABS Modulator Valve - K161888OR
Details
Air brake parts can fail after miles of overuse - usually from tapping brakes on steep inclines that lead to overheating. Brake parts including brake pads, camshafts and relay valves can be replaced after 30,000+ miles. While some parts may last longer, it is important to always perform routine maintenance to care for the components that make up air brake systems. When in need of replacement parts, turn to Bendix, a trusted leader in air brake technology.

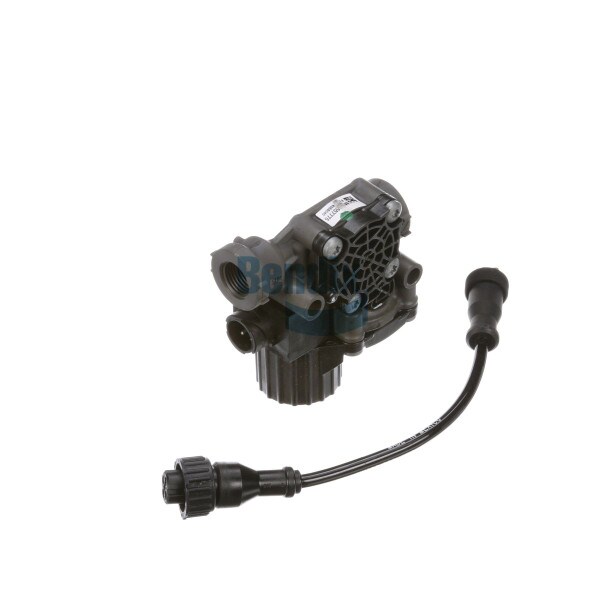

TheBendix M-40HF ABS Modulator Valve - K161888OR was designed to be the perfect replacement part for your commercial truck. This from the specialists at is made using the precision construction and reliable materials you've come to expect from one of the industry's leading manufacturers. 12 volts. Metric thread connector. 1/2 inch NPT supply and delivery ports. Includes adapter harness. No exhaust adapter. For a great way to make sure you have the right parts running your semi-truck, choose theBendix M-40HF ABS Modulator Valve - K161888OR!
This product comes with a one year warranty.
Bendix Commercial Vehicle Systems (Bendix) is a leading innovator in air brake system technology for medium and heavy-duty commercial vehicles. Trust Bendix when in need of replacement air brake parts for Freightliners, Mack, Volvo, Peterbilt and other big rigs!
Cross References
060-801666, 061-K161888ORX, 300073, 300386, 745-K161888OR, 745K161888OR, 801660, 801666, BW801666, BWK161888OR, BX801666, BXK161888OR, K161888, K1618880RBXW, K161888ORX, ZAC801666
Specifications
| Item-Level GTIN: | 4068078166949 |
| EXPI Data (Country of Origin): | Mx |
| EXPI Data (Core Group): | Sz |
| EXPI Data (Part Number Superseded To): | K161888Sc |
| Item Quantity Size UOM: | Ea |
| Description (Long Product Description): | Abs Modulator Valve |
| Adapter Cable Included: | 3-Pin Din (Straight) To 3-Pin Metric |
| Connector Type: | Circular Din 3-Way Connector (Iso 15170-1 Twist-Lock) |
| Current (Nominal): | 4.6 A |
| Delivery Port: | 1/2-14 Npt |
| Duty Cycle: | 15 Sec / 5 Min |
| Exhaust Port: | Dust Shield |
| Market Indicator: | Aftermarket Remanufactured |
| Maximum Operating Pressure: | 150 Psi |
| Maximum Operating Temperature: | 185 Adegf (85 Adegc) |
| Maximum Solenoid "On" Time: | 150 Sec |
| Minimum Operating Temperature: | -40 Adegf (-40 Adegc) |
| Modulator Type: | Hf (High Flow) |
| Mounting: | A~ .335 In (2X) |
| Supply Port: | 1/2-14 Npt |
| Voltage (Nominal): | 12 Volts |
