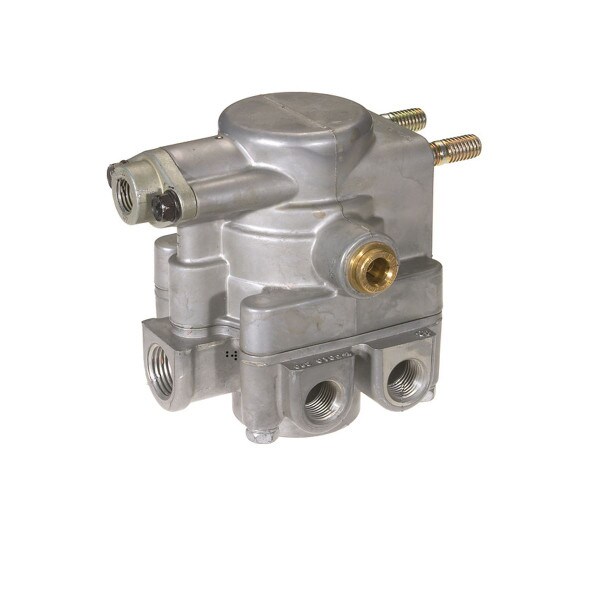

Bendix SR-7 Spring Brake Valve - K021560
Details
Spring brakes and their subsequent parts are generally reserved for the rear axle of the vehicle. Each spring brake is built with two different chambers with two different purposes. The service chamber, like any other brake chamber, is used to push the compressed air through the brake system to apply enough force to stop the brakes. However, spring brakes also contain a piggyback chamber that applies the emergency/parking brakes. Spring brakes are vital for emergency situations, so it's important that you find reliable parts with plenty of power.
This Bendix SR-7 Series Trailer Spring Brake Valve provides rapid application of spring brakes when parking. It's built with an anti-compounding feature in design and it's made for dual air brake systems. It's delivery and control ports are 3/8 in. in size with an M10 thread. This particular valve is built with two mounting studs with a 3/8 in. thread size and a length of 1.38 in.
Bendix Commercial Vehicle Systems have been a staple in the heavy duty truck industry, providing cutting-edge safety technology, energy solutions and air brake solutions and systems for well over a century. They've pioneered systems that are now standard on heavy duty trucks. Bendix will always look out for your truck's future, which makes them the best option for your present. Trust Bendix with your truck's future, today.
Cross References
170.K021560, 170K021560, 2596561C91, 3821869C92, 745-K021560, 745K021560, 802580, BENK021560, BW K021560, BWK021560, BXK021560, K021473, K021560BXW, S-27030, S27030, TWDBENK021560
Specifications
| Item-Level GTIN: | 7894294750665 |
| EXPI Data (Country of Origin): | Mx |
| Item Quantity Size UOM: | Ea |
| Description (Long Product Description): | Spring Brake Valve |
| Anti-Compounding: | Yes |
| Balance Port: | 3/8 Ptc (90Adeg Elbow Extended / Composite / Green Cap) |
| Control Port: | 3/8 Ptc (90Adeg Elbow Extended / Composite / Orange Cap) |
| Delivery Port 1: | 3/8-18 Npt |
| Delivery Port 2: | 3/8-18 Npt |
| Delivery Port 3: | 3/8-18 Npt |
| Delivery Port 4: | 3/8-18 Npt |
| Exhaust Orientation: | Exhaust Facing Down |
| Exhaust Port: | Dust Shield |
| Market Indicator: | Aftermarket New |
| Maximum Operating Temperature: | 200 Adegf (93 Adegc) |
| Minimum Operating Temperature: | -40 Adegf (-40 Adegc) |
| Mounting: | M10 X 1.5-6G Stud (2X) |
| Mounting Stud Length: | 1.38 In |
| Park Control Port: | 1/4-18 Npt |
| Regulatory Compliance: | Fmvss 121 |
| Spring Brake Hold-Off Pressure: | 107 Psi |
| Supply Port: | 1/2-14 Npt |
