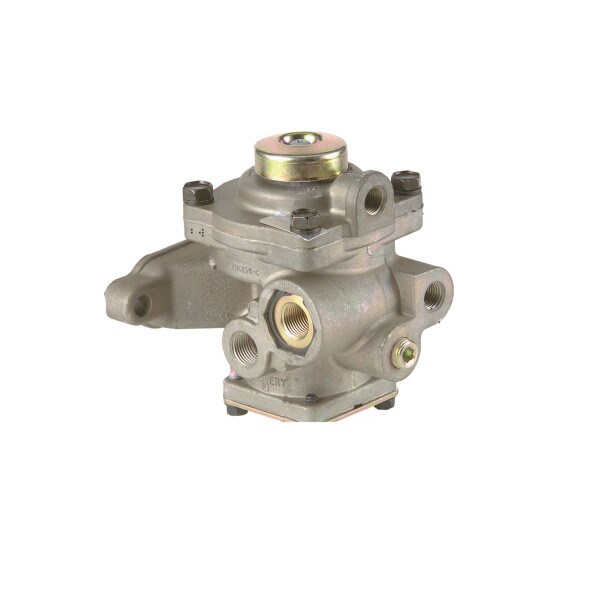

Bendix R-7 Spring Brake Modulating Valve - 103081N
Details
Spring brakes and their subsequent parts are generally reserved for the rear axle of the vehicle. Each spring brake is built with two different chambers with two different purposes. The service chamber, like any other brake chamber, is used to push the compressed air through the brake system to apply enough force to stop the brakes. However, spring brakes also contain a piggyback chamber that applies the emergency/parking brakes. Spring brakes are vital for emergency situations, so it's important that you find reliable parts with plenty of power.
This Bendix R-7 Series Spring Brake Modulating Valve has a crack pressure of 95 PSI. It's control port size is 0.25 in. while it's delivery and supply ports are 0.375 in. This particular modulating valve is built with an exhaust cover.
Bendix Commercial Vehicle Systems have been a staple in the heavy duty truck industry, providing cutting-edge safety technology, energy solutions and air brake solutions and systems for well over a century. They've pioneered systems that are now standard on heavy duty trucks. Bendix will always look out for your truck's future, which makes them the best option for your present. Trust Bendix with your truck's future, today.
Cross References
103081, 103081P, 103081R, 103081RX, 103081X, 103081XX, 103908, 110147, 110147X, 110148X, 110170, 110170P, 110170RX, 110170X, 110180, 110190, 1107170, 111170, 111170X, 111180, 111180X, 111190, 111190X, 112170, 112180, 112190, 1504913, 1511212, 16598, 170.103081, 170.11017, 170103081, 170110170, 2303057, 250X/VLV110170, 283932, 283932X, 296154, 2978323, 3081X, 3081XX, 325675R91, 34023, 36239, 3932X, 4226020, 53100573, 5396103081X, 763441, AV103081, AV110170, BE103081, BE103081X, BEN103081, BG283932X, BH103081, BP283932, BW103081, BW103081X, BW283932, BW283932X, BWBW103081, BWBWR103081, BWR103081, BWR103081X, BWR283932, BX103081, BX103081X, BX283932, BX283932X, BXR103081, BXR103081X, BXX103081, D283932X, E-BN103081N, E-SL110170, E2HT2B431AA, EBN103081N, EBN283932X, ESL110170, ESL110170X, EUEBN283932X, FC110170, HT2B431AA, K103081, K110170, MD103081X, MD283932X, MI103081X, MI5396103081X, MID283932X, N103081, OR103081X, OTR103081, OTR110170, P103081, R103081, R103081X, R283932, R955103081N, RSL110170, S-11417, S-A143, SA143, SE110170, VLV110170, WA103081, X103081
Specifications
| Item-Level GTIN: | 7894294735402 |
| EXPI Data (Country of Origin): | Mx |
| Item Quantity Size UOM: | Ea |
| Description (Long Product Description): | Spring Brake Valve |
| Anti-Compounding: | Yes |
| Balance Port: | 1/4-18 Npt |
| Control Port: | 1/4-18 Npt |
| Delivery Port 1: | 3/8-18 Npt |
| Delivery Port 2: | 3/8-18 Npt |
| Delivery Port 3: | Not Applicable To This Part |
| Delivery Port 4: | Not Applicable To This Part |
| Exhaust Orientation: | Exhaust Facing Up |
| Exhaust Port: | Dust Shield |
| Market Indicator: | Aftermarket New |
| Maximum Operating Temperature: | 200 Adegf (93 Adegc) |
| Minimum Operating Temperature: | -40 Adegf (-40 Adegc) |
| Mounting: | A~ .41 In (2X) |
| Mounting Stud Length: | Not Applicable To This Part |
| Park Control Port: | Not Applicable To This Part |
| Regulatory Compliance: | Fmvss 121 |
| Spring Brake Hold-Off Pressure: | 95 Psi |
| Supply Port: | 3/8-18 Npt |
