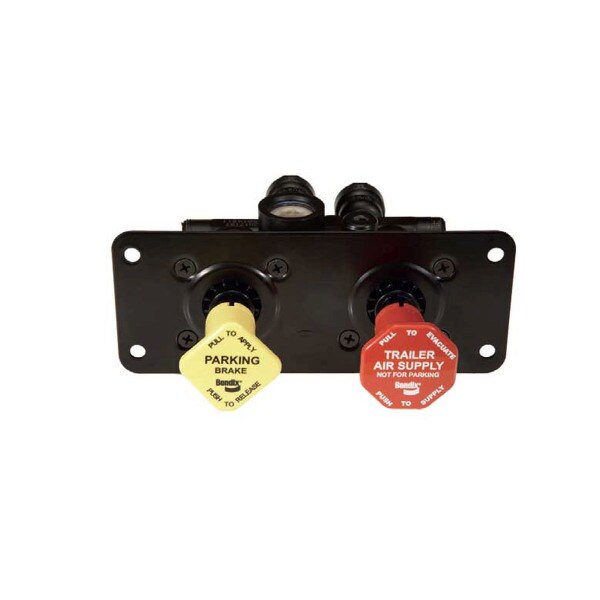

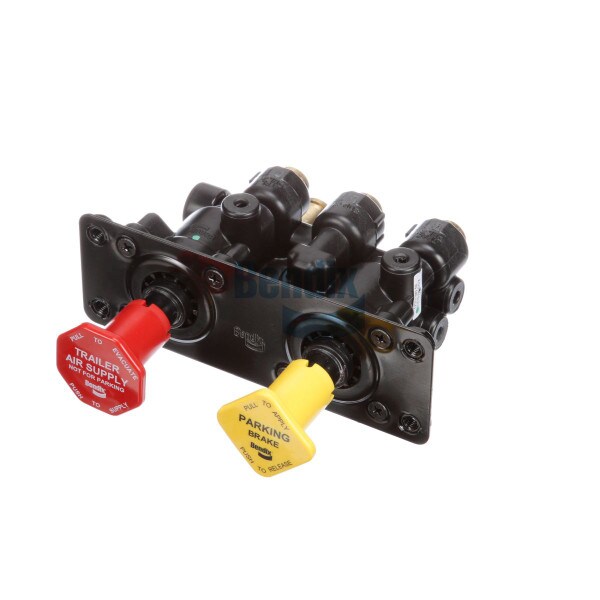

Bendix MV-3 Dash Valve - K066652
Details
Air brake parts can fail after miles of overuse - usually from tapping brakes on steep inclines that lead to overheating. Brake parts including brake pads, camshafts and relay valves can be replaced after 30,000+ miles. While some parts may last longer, it is important to always perform routine maintenance to care for the components that make up air brake systems. When in need of replacement parts, turn to Bendix, a trusted leader in air brake technology.
This MV-3 Dash Valve contains the following measurements: Supply Port 11: 3/8" PTC. Supply Port 12: 3/8" PTC. Delivery Port 21: 3/8" PTC. Delivery Port 22: 3/8" PTC. Exhaust Port: 3/8" PTC. Tractor Trip Pressure: 30 +/- 10 PSI. Trailer Trip Pressure: 35 +/- 10 PSI. Trailer Override Pressure: 25 +/- 5 PSI.
This product comes with a one year warranty.
Bendix Commercial Vehicle Systems (Bendix) is a leading innovator in air brake system technology for medium and heavy-duty commercial vehicles. Trust Bendix when in need of replacement air brake parts for Freightliners, Mack, Volvo, Peterbilt and other big rigs!
Specifications
| Item-Level GTIN: | 4068078211892 |
| EXPI Data (Country of Origin): | Mx |
| Item Quantity Size UOM: | Ea |
| Description (Long Product Description): | Dash Valve |
| Auxiliary Port: | Not Applicable To This Part |
| Button(S) Included: | Yes |
| Cautionary Note(S): | Not Applicable To This Part |
| Delivery 21 Port: | 3/8 Ptc |
| Delivery 22 Port: | 3/8 Ptc |
| Exhaust Port: | 3/8 Ptc |
| Market Indicator: | Aftermarket New |
| Maximum Operating Temperature: | 200 Adegf (93 Adegc) |
| Minimum Operating Temperature: | -40 Adegf (-40 Adegc) |
| Mounting: | M6 X 1-6H (4X) |
| Supply 11 Port: | 3/8 Ptc |
| Supply 12 Port: | 3/8 Ptc |
| Tractor Trip Pressure: | 30 A+- 10 Psi |
| Trailer Override Pressure: | 25 A+- 5 Psi |
| Trailer Trip Pressure: | 35 A+- 10 Psi |
