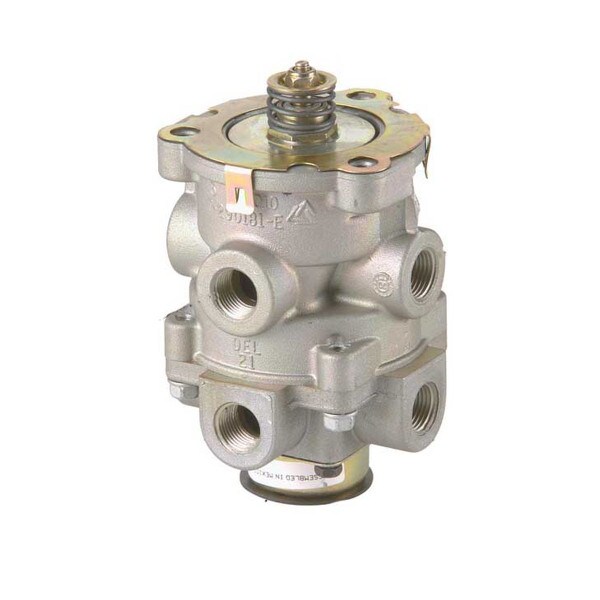

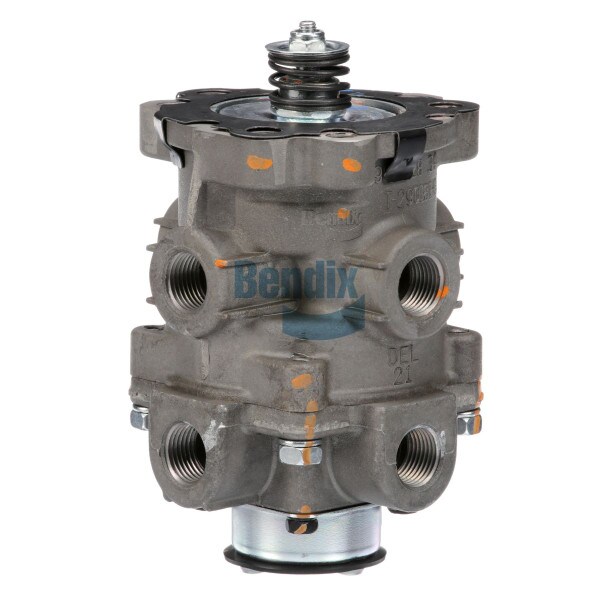

Bendix E-6 Foot Brake Valve - 286171N
Details
Air brake parts can fail after miles of overuse - usually from tapping brakes on steep inclines that lead to overheating. Brake parts including brake pads, camshafts and relay valves can be replaced after 30,000+ miles. While some parts may last longer, it is important to always perform routine maintenance to care for the components that make up air brake systems. When in need of replacement parts, turn to Bendix, a trusted leader in air brake technology.
TheBendix E-6 Foot Brake Valve - 286171N was designed to OEM spec to provide a seamless fit to your semi-truck. Application Valve - Dual. Treadle and mounting plate not furnished. Upper Body Casting Number: T-290181-G. This from the specialists at features two separate supply and delivery circuits. For a great way to make sure you are using the best possible parts in your commercial vehicle, choose theBendix E-6 Foot Brake Valve - 286171N.
This product comes with a one year warranty.
Bendix Commercial Vehicle Systems (Bendix) is a leading innovator in air brake system technology for medium and heavy-duty commercial vehicles. Trust Bendix when in need of replacement air brake parts for Freightliners, Mack, Volvo, Peterbilt and other big rigs!
Cross References
011219503, 02-7076381, 027076381, 0R286171BXR, 1010438, 1010447, 101100, 101312, 101560, 101825, 102746, 102944, 10326, 104264, 104349, 104724, 104969, 107872, 107921, 107921X, 109115, 109732, 11219503, 112195034, 1140918, 123319, 12474424, 12560, 1296584, 133188, 1393030043, 15431, 15435, 15439, 15444, 15445, 15446, 15586703, 1576011, 160802, 161104, 162080, 162368, 162380, 162686, 162782, 163066-1P, 163066-PB, 1630661P, 163066PB, 163539, 163961, 164478, 164516, 164545, 164566, 164690, 164721, 164937, 1693194C91, 170.286171, 1710304111, 1710304121, 17359, 17380024, 179SB3030S, 1805701, 194302, 2004632, 20QE3397, 22606, 22622, 23030C, 2440430C91, 250NFLT3030SCB20, 2590011306720, 28459300, 286096, 286122, 286123, 286124, 286125, 286126, 286153, 286171, 286171B1, 286171BXR, 286171BXW, 286171R, 286171RX, 286171X, 286251, 286321, 286322, 286323, 286324, 286325, 286326, 286328, 286332, 286333, 286334, 286335, 286336, 286337, 286338, 286339, 286340, 286341, 286342, 286343, 286344, 286345, 286346, 286347, 286348, 286349, 286350, 286351, 286352, 286353, 286393, 286394, 286504, 286505, 286507, 286508, 286516, 287017, 287068, 287255, 287289, 287290, 287687, 287771, 287773, 287782, 288246, 288274, 288322, 288424, 289128, 289380, 289380X, 29577, 30 30, 30/30, 300032, 3030-PHD, 3030021, 3030039, 3030049, 30304, 3030B, 3030C, 3030CI, 3030CIS, 3030EC, 3030EC800NN, 3030ESLR, 3030GP, 3030GSTB, 3030NC, 3030P75, 3030PB, 3030PBKIT, 3030PC, 3030PHD, 3030RB, 3030SB, 3030T, 3030TC, 3030TOMNI, 3030TOMNIC, 3030TOMNIDBL, 3030TPCP, 3030TPCS, 3030TPREM, 3030TPW, 3030WC, 3031SBA, 3033075, 3033075LC, 3081405, 3130051, 3130517, 3131051, 33030C, 3430001, 3430008, 3430051, 3430051X, 3430720, 3437060, 3507334, 352831, 354180, 39461, 39462, 4030051, 4030151, 41280, 43BC2, 44395, 452950C92, 4820010340970, 49043038, 49044353, 4R153, 4V2786, 5001123, 5002381, 5004536, 5004537, 5004538, 5004539, 5004540, 5004541, 5004593, 5005521, 5005578, 5006808, 5007126, 5007132, 5007132N, 5007610N, 5007861, 5008M5, 5009605, 5010095, 5010096, 5010097, 5012181, 5012182, 5013136, 5013137, 5013706, 5013842, 5013881, 5014520, 5015998, 5015999, 5016000, 5016974, 51227503, 5300466000, 53030017, 53230, 53235, 5396-GP3030, 5396GP3030, 541227503, 550161, 552494, 55543430051, 55543430051X, 58846, 5948304, 61130396, 61130403, 61170227, 6305702, 654533, 6709411, 6W7075, 719450, 720020001, 745-286171, 745-286171N, 745-OR286171X, 745-X286171, 745286171, 745286171N, 745286171X, 745OR286171X, 745X286171, 767653298207, 774162, 774165, 78113414, 800831, 800831N, 8008815, 801267, 801268, 801711, 801750, 802339, 802397, 802547, 8160002765, 85107268, 85107271, 86480519, 8W5651, 8W8507, 90001264, 9044353, 936749, 94723030PB, 94923030AP, 9934600164, A-3280-M-6955, A12-17486-000, A1211502KK, A1217486000, A1219503AA, A3280M6955, AA1102013, ACA-01774700, ACA01774700, AE774162, AE774165, AFR186A926, AV286171, BAN286171N, BBH-RB286171, BBHRB286171, BEN286171, BEN286171N, BG15431, BG15445, BGI15431, BGMA15431, BGMA15445, BH5007132, BH5007610, BM3030T, BM30C, BND286171N, BS3030P, BS3030T, BS3030TC, BT3030P, BT3030T, BT3030TC, BV3030RB, BV3033075, BV3033075LC, BW 286171N, BW286122, BW286123, BW286124, BW286125, BW286126, BW286153, BW286171, BW286171N, BW286251, BW286332, BW286333, BW286334, BW286335, BW286336, BW286337, BW286338, BW286339, BW286340, BW286341, BW286342, BW286343, BW286344, BW286345, BW286346, BW286348, BW286349, BW286350, BW286351, BW286352, BW286353, BW5007125, BW5007126, BW5007132, BW5007610, BW5007610N, BW800831, BW800831N, BWTP3030NC, BWTP3030WC, BWTYPE30, BX286171, BX286171B1, BX286171N, BX286347, BY300237A, C-15444, C15444, C286171, CHEAP, CL23030C, CL3030, CL33030C, CLBM30C, DE0702003, DI12560, DN3030PC, DP12560, DP3030CI, EBC3030C, EBN286171N, EGP-3030, EGP3030, EJ3030, EPRO3030STD-78, EXOR286171X, FDBS3030TC, FGBT3030T, FLT3030SCB20, G9010571, GC3030, GP3030, GP3030-MD, GP3030KP40
Specifications
| Item-Level GTIN: | 4068078431481 |
| EXPI Data (Country of Origin): | Mx |
| Item Quantity Size UOM: | Ea |
| Description (Long Product Description): | Foot Brake Valve |
| Auxiliary Supply Port: | Not Applicable To This Part |
| Bva-85 Included: | No |
| Bva-85 Port Size: | Not Applicable To This Part |
| Delivery (21) Port 1: | 3/8-18 Npt |
| Delivery (21) Port 2: | 3/8-18 Npt |
| Delivery (22) Port 1: | 3/8-18 Npt |
| Delivery (22) Port 2: | 3/8-18 Npt |
| Differential Pressure: | 3.0 Psi |
| Exhaust Port: | Dust Shield |
| Graduation Spring Style: | Rubber Spring |
| Initial Pedal Angle: | Not Applicable To This Part |
| Market Indicator: | Aftermarket New |
| Maximum Operating Temperature: | 200 Adegf (93 Adegc) |
| Minimum Operating Temperature: | -40 Adegf (-40 Adegc) |
| Mounting (Valve Body): | 5/16-18 Unc-3B (3X) |
| Mounting (Vehicle): | Not Applicable To This Part |
| Mounting Nuts / Washers Included: | Not Applicable To This Part |
| Mounting Plate Included: | No |
| Mounting Stud Length: | Not Applicable To This Part |
| Pedal Included: | No |
| Pedal Length (From Pivot): | Not Applicable To This Part |
| Pedal Length (Overall): | Not Applicable To This Part |
| Pedal Material: | Not Applicable To This Part |
| Pedal Offset: | Not Applicable To This Part |
| Pedal Pad Included: | Not Applicable To This Part |
| Pedal Style: | Not Applicable To This Part |
| Plunger Material: | Not Applicable To This Part |
| Port Configuration: | Axial / Perpendicular |
| Regulatory Compliance: | Fmvss 121 |
| Retarder Cable Length: | Not Applicable To This Part |
| Retarder Connector: | Not Applicable To This Part |
| Retarder Included: | No |
| Rubber Boot Included: | Not Applicable To This Part |
| Supply (11) Port 1: | 3/8-18 Npt |
| Supply (11) Port 2: | 3/8-18 Npt |
| Supply (12) Port 1: | 3/8-18 Npt |
| Supply (12) Port 2: | 3/8-18 Npt |
| Total Pedal Travel: | Not Applicable To This Part |
| Waterproof: | No |
