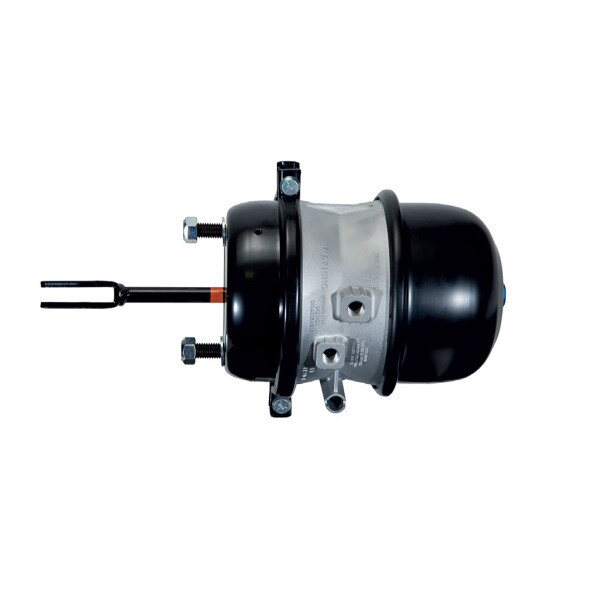

Bendix T30/30 Spring Brake (S-Cam) - NT3030STD-78
Details
Spring brakes and their subsequent parts are generally reserved for the rear axle of the vehicle. Each spring brake is built with two different chambers with two different purposes. The service chamber, like any other brake chamber, is used to push the compressed air through the brake system to apply enough force to stop the brakes. However, spring brakes also contain a piggyback chamber that applies the emergency/parking brakes. Spring brakes are vital for emergency situations, so it's important that you find reliable parts with plenty of power.
This Bendix EnduraSure Series Air Disc Spring Brake has up to three times more power and spring life than competitors and previous models. It's No Touch Power Spring prevents corrosion as well as coil clash in your spring brake. Being the lightest spring brake chamber in it's class, it has an extended service life compared to other actuators. This specific spring brake has size T30/30 chambers and a 7.8 in. push rod length. Its stroke size comes in at 2.5 in. and it is considered a standard stroke spring brake chamber.
This product comes with a four year, unlimited mile warranty.
Bendix Commercial Vehicle Systems have been a staple in the heavy duty truck industry, providing cutting-edge safety technology, energy solutions and air brake solutions and systems for well over a century. They've pioneered systems that are now standard on heavy duty trucks. Bendix will always look out for your truck's future, which makes them the best option for your present. Trust Bendix with your truck's future, today.
Cross References
02-7076381, 027076381, 046044900000, 070-GC3030CW, 070GC3030CW, 1010438, 1010447, 1010456, 1010457BX, 1010460, 1010476, 10326, 12474424, 12560, 12600365, 12960, 1373030002, 1373030006, 1373030009, 1373030010, 1373030011, 1373030012, 1373030013, 1373030201, 1373030202, 1373030203, 1373030211, 1373030212, 1373030213, 1373030214, 1373030215, 1373030216, 1373030220, 1373030221, 1373030301, 1373030302, 1373030303, 1373030304, 1373030305, 1373030306, 1373030307, 1373030308, 1373030309, 1373030310, 1373030311, 1373030312, 1373030313, 1373030314, 1373030315, 1373030316, 1373030317, 1393030043, 1430001, 1430343, 15431, 15435, 15439, 15444, 15445, 15446, 15586703, 160802, 161104, 162080, 162368, 162380, 162686, 162782, 163066-1P, 163066-PB, 1630661P, 163066PB, 163539, 163961, 164478, 164516, 164545, 164566, 164690, 164721, 165941, 165944, 165958, 165971, 165984, 165986, 166027, 166033, 166047, 166052, 166056, 166222, 166293, 166360, 166431, 166432, 1691135C91, 1693194C91, 179.SB3030S, 179.SB3030SHD, 179.SB3030SRW1110, 179SB3030S, 179SB3030SHD, 179SB3030SRW1110, 18960, 23030C, 24424204, 24424205, 250NFLT3030SCB20, 286096, 286122, 286123, 286124, 286125, 286126, 286153, 286251, 286321, 286322, 286323, 286324, 286325, 286326, 286328, 286332, 286333, 286334, 286335, 286336, 286337, 286338, 286339, 286340, 286341, 286342, 286343, 286344, 286345, 286346, 286347, 286348, 286349, 286350, 286351, 286352, 286353, 286393, 286394, 286504, 286505, 286507, 286508, 288814, 30 30, 30/30, 3030, 3030-PHD, 3030021, 3030039, 3030049, 3030054, 3030099, 30304, 3030B, 3030C, 3030CHAMBER, 3030CI, 3030CIS, 3030CISZ, 3030CLS, 3030EC, 3030EC800NN, 3030ESLR, 3030GC, 3030GC-LS, 3030GCLS, 3030GP, 3030GSTB, 3030HDA, 3030KLS, 3030KLSHDA, 3030L, 3030LCB20, 3030LONG, 3030LR, 3030LS, 3030LS-PHD, 3030LSHDA, 3030LSPHD, 3030NC, 3030P75, 3030PB, 3030PBKIT, 3030PC, 3030PHD, 3030PLK, 3030RB, 3030SB, 3030SB2, 3030SBLS, 3030SHORTSTROKE, 3030SN2K, 3030SN2K-3001RT, 3030SN2K3001RT, 3030SN3K, 3030SN3K-3003RT, 3030SN3K3003RT, 3030SN3ULK, 3030T, 3030TC, 3030TN2, 3030TN2-CRT, 3030TN2CRT, 3030TN2ULC, 3030TN3, 3030TN3-CRT, 3030TN3CRT, 3030TN3ULC, 3030TOMNI, 3030TOMNIC, 3030TOMNIDBL, 3030TPCP, 3030TPCS, 3030TPREM, 3030TPW, 3030TSL, 3030WC, 3030XLS, 3031SBA, 3033075, 3033075LC, 30PBK3D, 3130051, 3130517, 3131051, 3131230, 3230008, 3230008X, 3230051, 3230051X, 3230057, 3230551, 3230555, 3230951, 33030C, 33030C3D, 33030CD, 3330051, 34300001, 3430001, 3430008, 3430008X, 3430051, 3430051X, 3430720, 3430951, 3437060, 3506534, 3508360C91, 3512210, 3512399, 3517995, 3523040, 3523379, 3534051, 3832051, 3918827, 3945423, 3949778, 4030051, 4030151, 40502131, 40502138, 430051X, 430058, 43030C3D, 43BC2, 5007126, 5007132, 5007132N, 5007610N, 5010414, 5010435, 5011594, 5013841, 50866003, 50866009, 511017, 53030017, 53030039, 53230, 53235, 5396-GC3030CW, 5396-GC3030L, 5396-GP3030, 5396-GP3030LK, 5396GC3030CW, 5396GC3030L, 5396GP3030, 5396GP3030LK, 5396SC30, 555-3430051X, 5553430051X, 5554-3230051, 5554-3430008X, 5554-3430051, 5554-3430051X, 55543230051, 55543230051X, 55543430008X, 55543430051, 55543430051X, 61170144, 61170145, 61170224, 61170230, 745*NTS3030STD78TCDS, 745NTS3030STD78TCDS, 767653298023, 767653298207, 767653298245, 767653331003, 800831, 800831N, 801733, 802541, 822089, 85103137, 85107268, 85107271, 85107459, 94723030PB, 94923030AP, A-3280-M-6955, A3000, A3280M6955, ABP/N24A-13030C3D, ABPN24A13030C3D, ABPN42A30PBK3D, ABPN42A30PBKD, ABPN42A30SCND, ABPN42A33030C3D, ABPN42A33030CD, ABPN42A43030C3D, ABPN42A43030CD, ACA-78961700, ACA78961700, APL 100023, APL-100023, APL100023, B743276D30, BBH-BPS3030KLS, BBH-BTS3030LS, BBHBPS3030KLS, BBHBTS3030LS, BC3030CCRT, BG15431, BG15445, BGI15431, BGMA15431, BGMA15445, BH5007132, BH5007610, BM3030T, BM30C, BNAR5013841, BPS3030KLS, BRKEV3030PPB, BS3030P, BS3030T, BS3030TC, BT3030P, BT3030T, BT3030TC, BTS30, BTS3030LS, BTS3030WC, BV3030RB, BV3033075
Specifications
| Item-Level GTIN: | 7894294759002 |
| EXPI Data (Country of Origin): | Mx |
| Item Quantity Size UOM: | Ea |
| Description (Long Product Description): | Spring Brake (S-Cam) |
| Brand: | Endurasure |
| Cautionary Note(S): | Do Not Disassemble While Park Side Is Caged Under Pressure |
| Chamber Style: | Double Diaphragm |
| Chamber Type / Size: | T30/30 |
| Clamp Angle: | 45Adeg |
| Clevis / Yoke Arm Bushing Pin Diameter: | Not Applicable To This Part |
| Clevis / Yoke Arm Link Pin Diameter: | Not Applicable To This Part |
| Clevis / Yoke Pin Spacing: | Not Applicable To This Part |
| Clevis / Yoke Style: | Not Included |
| Market Indicator: | Aftermarket New |
| Maximum Operating Temperature: | 175 Adegf (79 Adegc) |
| Minimum Operating Temperature: | -40 Adegf (-40 Adegc) |
| Mounting Stud Length: | 1.50 In (38.1 Mm) |
| Parking Port (12): | 3/8-18 Nptf |
| Port Angle: | 270Adeg |
| Push Rod Length (To Yoke Pin Center When Applicable) [In]: | 7.80 In |
| Push Rod Thread / Style: | 5/8-18 Unf-2A |
| Service Chamber Joint Type: | Double Clamp Band |
| Service Port (11): | 3/8-18 Nptf |
| Stroke: | 2.50 In (63.5 Mm) |
| Stud Spacing: | 4.75 In (120.7 Mm) |
| Stud Thread Size: | 5/8-11 Unc-2A |
