Bendix SAS-70X Steering Angle Sensor - K072856
Details
Air brake parts can fail after miles of overuse - usually from tapping brakes on steep inclines that lead to overheating. Brake parts including brake pads, camshafts and relay valves can be replaced after 30,000+ miles. While some parts may last longer, it is important to always perform routine maintenance to care for the components that make up air brake systems. When in need of replacement parts, turn to Bendix, a trusted leader in air brake technology.

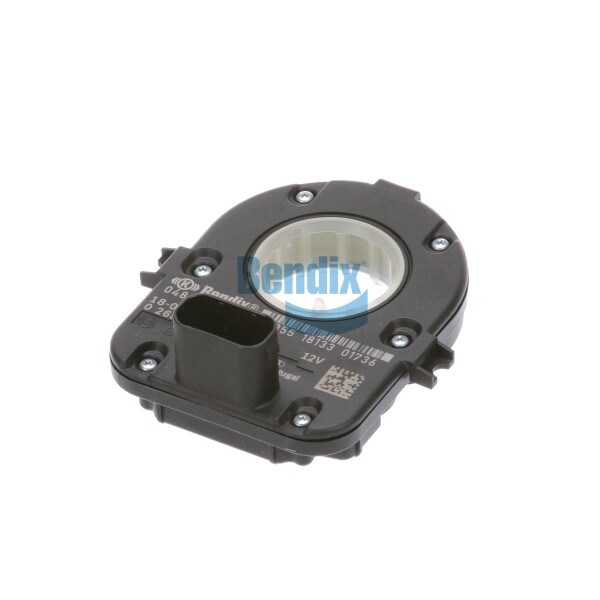

SAS-70X Steering Angle Sensor.
This product comes with a one year warranty.
Bendix Commercial Vehicle Systems (Bendix) is a leading innovator in air brake system technology for medium and heavy-duty commercial vehicles. Trust Bendix when in need of replacement air brake parts for Freightliners, Mack, Volvo, Peterbilt and other big rigs!
Specifications
| Item-Level GTIN: | 4068078209974 |
| EXPI Data (Country of Origin): | Pt |
| EXPI Data (Part Number Superseded To): | K151568 |
| Item Quantity Size UOM: | Ea |
| Description (Long Product Description): | Steering Angle Sensor |
| Can Baud Rate: | 250 Kilobaud |
| Cautionary Note(S): | Fastener Torque & Orientation Are Critical |
| Connector Orientation: | 90Adeg |
| Connector Type: | Bosch 7-Pin Connector (Male) |
| Current (Maximum): | 150 Ma |
| Ingress Protection Rating: | Ip50 |
| Market Indicator: | Aftermarket New |
| Maximum Operating Temperature: | 185 Adegf (85 Adegc) |
| Minimum Operating Temperature: | -40 Adegf (-40 Adegc) |
| Operating Voltage Range: | 8.2 Vdc - 16 Vdc |
| Overvoltage: | 18 Volts |
| Steering Column Shaft Diameter: | A~ 24.90 Mm |
