Bendix PP-DC Brake Control Valve - 800310

Product Description

The unexpected can take a backseat when you have Bendix on your side. Bendix air dryers, valves and ABS parts are just what truck drivers need to keep them up-and-running.

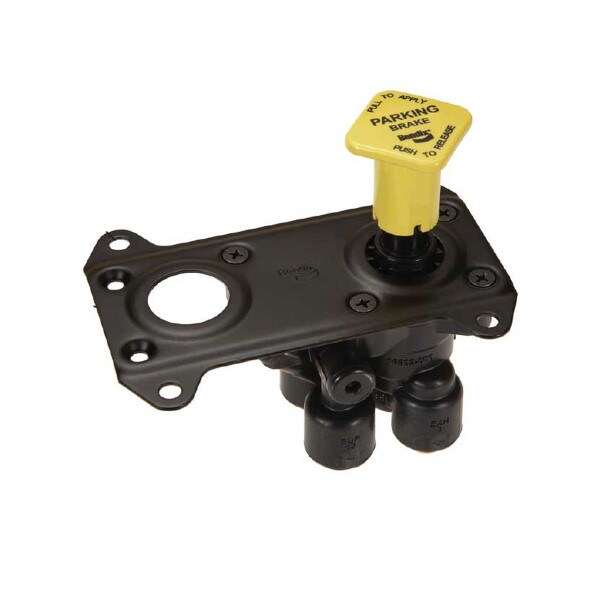

The Bendix PP-DC Brake Control Dash Valve 800310 was designedfor air brake valves in heavy-duty trucks and buses. This push-pull manually operable on/off valve from the specialists at Bendix functions by providing in-cabl control of bus or truck parking brakes. Made from anti-corrosive, no-metallic material, it automatically moves from the applied position to the exhaust position when pressure drops below 20-30 PSI. The Bendix PP-DC Valve receives air supply from the primary and/or secondary reservoir and is designed to accept 1/4 inch fittings or push-to-connect fittings that use SAE J844D air brake tubing. For a great way to make sure you are using the best possible parts in your commercial truck, choose theBendix PP-DC Brake Control Valve - 800310!

Product warranty is as follows: 1 year / 12,000 miles.

Bendix Commercial Vehicle Systems have been a staple in the heavy duty truck industry, providing cutting-edge safety technology, energy solutions and air brake solutions and systems for well over a century. They've pioneered systems that are now standard on heavy duty trucks. Bendix will always look out for your truck's future, which makes them the best option for your present. Trust Bendix with your truck's future, today.

Features

• Made from anti-corrosive, no-metallic material
• Receives air supply from the primary and/or secondary reservoir
• Designed to accept 1/4 inch fittings or push-to-connect fittings that use SAE J844D air brake tubing

Includes

PP-DC dash valve

Warranty

1 year / 12,000 miles

Cross Reference

5.00E+12, 5003511, 5003512, 745-800310, 745800310, 800310BXW, BEN800310, BW800310, BX800310, TWDBEN800310, ZAC800310
