Bendix TF-750 Air Compressor - 065198

Product Description

Air compressors and the systems around help pump clean air that powers various aspects in the trucks undercarriage, one of the biggest being your truck's air brake system. It's important to properly maintain every part of your truck's compressor so that it can correctly feed pressurized air into all of the various parts of the truck.

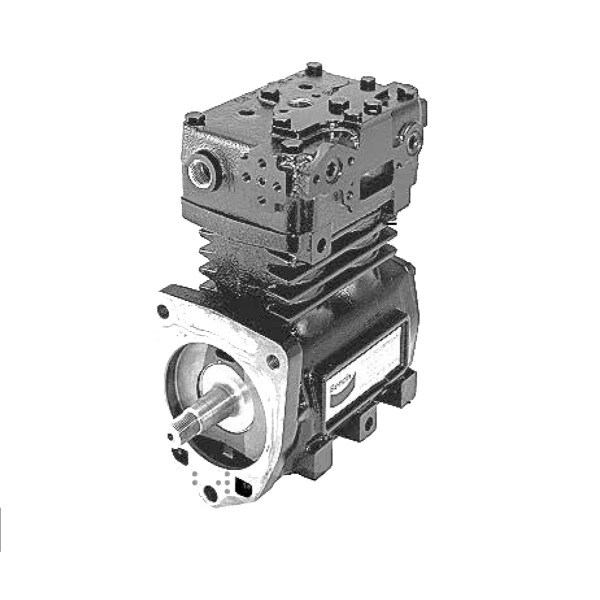

This Bendix TU-FLO 750 Series Air Compressor is a two cylinder, single stage compressor with a rated displacement output of 16.5 CFM at 1250 RPM. It's designed for flange mounts and has an optional discharge type. The inlet port is located on the left of the compressor, while the discharge port is located on the left and top of the compressor. This compressor is for Cummins engine applications.

These Air Compressors are under warranty for 2 years or 200,000 miles.

Bendix Commercial Vehicle Systems have been a staple in the heavy duty truck industry, providing cutting-edge safety technology, energy solutions and air brake solutions and systems for well over a century. They've pioneered systems that are now standard on heavy duty trucks. Bendix will always look out for your truck's future, which makes them the best option for your present. Trust Bendix with your truck's future, today.

Features

• TU-FLO 750 Series Air Compressor
• Two Cylinder Single Stage
• Rated Displacement at 16.5 CFM at 1250 RPM
• Flange Mounting
• Optional Discharge Type
• Left Inlet Port Placement, Left-Top Discharge Port Placement
• 2 Year, 200,000 Mile Warranty

Includes

One (1) Air Compressor

Warranty

2 Year, 200,000 Mile Warranty

Cross Reference

04625107507X, 065198BXW, 107001, 107507, 107507B1, 107507BXR, 107507X, 107507X-BW, 107507XBW, 107781, 107819, 107820, 108584, 109198, 1672564C92, 1694007C91, 175107507X, 2GH918, 3069181, 3074471, 3166446, 3166446RX, 3417959, 3500420, 3528915F91, 3609998, 436.02.3604.704, 436023604704, 436023804704, 5001711, 5003265, 5012943, 6328219R, 65198, 745-107507, 745-107507X, 745-X107507, 745107507, 745107507X, 745X-107507, 745X107507, 8062235, 82-17427-000, 8217427000, 8217427001, 85102169, 97-8218-00151, 97821800151, 97827900151, ABPN13AC3074471, BAR107507, BBH-107507, BBH107507, BC2-25564, BC225564, BEN107507X, BEX107507X, BNE107507X, BW107507X, BWA107507X, BX 107507X, BX065198, BX107507, BX107507B1, BX107507X, BX2107507X, BXX107507X, EBN107507X, EL16040, EL16040X, HVG107507X, KN16040X, N13AC, OR107507, PC01000001-001, PC01000001001, R107507, R955107507X, SMR107507X, W:BW-107507X, W:BW107507X, WBW-107507X, WBW107507X

Specifications
