Bendix BA-921 Reman Air Compressor - K056647X
Details
Product Description
Air compressors and the systems around help pump clean air that powers various aspects in the trucks undercarriage, one of the biggest being your truck's air brake system. It's important to properly maintain every part of your truck's compressor so that it can correctly feed pressurized air into all of the various parts of the truck.

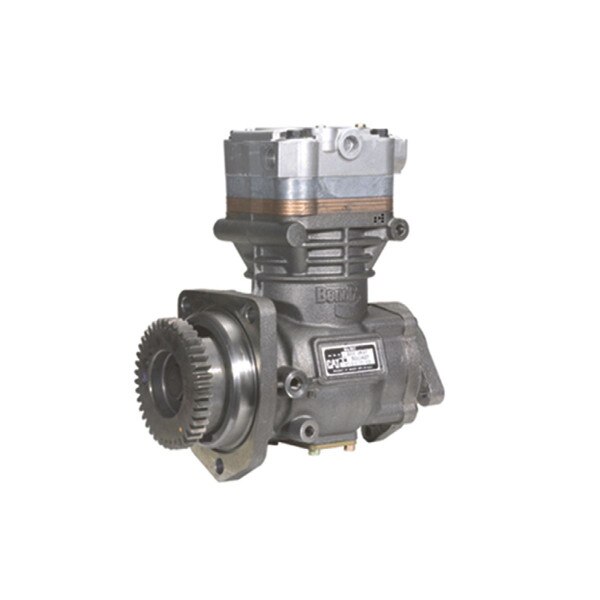

This Bendix BA921 Series Air Compressor is a single cylinder, single stage compressor with a rated displacement output of 15.8 CFM at 1250 RPM. It's designed for flange mounting. The inlet port is located on the top of the compressor, while the discharge port is located on the side of the compressor. This compressor is for Caterpillar C11 ACERT and C13 ACERT engine applications. It is also a remanufactured product.
These Air Compressors are under warranty for 2 years or 200,000 miles. This particular product is a remanufactured product. Save money when sending back the core of the product upon purchase. Buying reman products are also beneficial to the environment.
Bendix Commercial Vehicle Systems have been a staple in the heavy duty truck industry, providing cutting-edge safety technology, energy solutions and air brake solutions and systems for well over a century. They've pioneered systems that are now standard on heavy duty trucks. Bendix will always look out for your truck's future, which makes them the best option for your present. Trust Bendix with your truck's future, today.
Features
- BA921 Series Air Compressor
- Single Cylinder Single Stage
- Rated Displacement at 15.8 CFM at 1250 RPM
- Flange Mounting
- Remanufactured
- Top Inlet Port Placement, Side Discharge Port Placement
- 2 Year, 200,000 Mile Warranty
Includes
One (1) Remanufactured Air Compressor
Warranty
2 Year, 200,000 Mile Warranty
Cross Reference
04625107506X, 046255012533X, 046255014428X, 0R1623, 0R1624, 0R8442, 102-9551, 102-9553, 1029551, 1029553, 107000, 107506, 107506B1, 107506BXR, 107506X, 107506X-BW, 107506XBW, 107974, 107975, 108583, 109138, 109139, 109141, 109142, 109142X, 109197, 109319, 109321, 109322, 10R9375, 139-9009, 1399009, 143-7186, 143-9186, 1437186, 1439186, 164-7566, 164-7567, 1647566, 1647567, 167-1288, 1671288, 1672563C92, 1694006C91, 170.5002983, 170.AC5012533, 1705002983, 170AC5012533, 174 107506X, 175107506X, 20R0176, 20R0177, 20R0178, 223-3637, 2233637, 2531736, 3069211, 3074470, 3166445, 340 3417958, 3417958, 3417958NX, 3417958RX, 3522291, 3609999, 5001533, 5001534, 5001710, 5002082, 5002082X, 5002826, 5002826X, 5002983, 5002983B1, 5002983BXR, 5002983X, 5002983X-BW, 5002983XBW, 5003231, 5003232, 5003233, 5003264, 5005421, 5005421X, 5005422, 5005491, 5005491X, 5005492, 5005496, 5005790, 5007468, 5007468X, 5007469, 5007469X, 5007471, 5008609, 5011427, 5012532, 5012532X, 5012533, 5012533BXR, 5012533X, 5014428, 5014428BXR, 5014428X, 53-107506X, 53107506X, 61-3909, 613909, 65197, 65465, 65466, 70001-8001, 700018001, 745-107506X, 745-5002983X, 745-5012533X, 745-X107506, 745-X5002983, 745107506X, 7455002983X, 7455012533X, 745X-107506, 745X-5012533, 745X107506, 745X5002983, 745X5012533, 745X5OO2983, 800291, 800725, 801463, 9Y-6320, 9Y6320, ABPN13AC0R8442, ABPN13AC20R0177, ABPN13AC20R0178, ABPN13AC3417958, BAR107506, BAR5012533, BAR5014428, BBH-107506, BBH-109142, BBH107506, BBH109142, BC1-25555, BC1-25566, BC125555, BC125566, BC2-25565, BC2-25567, BC225565, BC225567, BE107506, BE107506X, BE5002983X, BEN5012533X, BEX5012533X, BH5002983X, BW 5012533, BW 5014428, BW R107506, BW R5014428, BW107506, BW107506X, BW5002983X, BW5012533, BW5012533X, BW5014428, BWR107506, BWR5014428, BX 107506X, BX065197, BX107000, BX107506, BX107506B1, BX107506X, BX107974, BX107975, BX108583, BX5002983, BX5002983B1, BX5002983X, BX5012533X, BX5014428X, BXR107506, BXR107506X, BXX107506X, CC107506, E-BN107506X, E12977284, EBN107506X, EL13040, EL13040X, EUEBN107506X, F5012533X, FLTBC106, FRL 42018134, FRL 42032285, H5002983X, HVG107506X, HVG5012533X, HVG5014428X, JW5002983X, K020283, K020284, K020284X, K046146, K056647, K056647BXR, K056649, KN13040X, MB107506X, MI107506X, MSBX107506X, N13AC, OR-8442, OR107506, OR1624, OR8442, P107506, R107000, R107506, R107506X, R107974, R108583, R955107506X, R9555002983X, R9555012533X, R9555014428X, R955EL13040X, R955K056647X, S13753, WBW-107506X, WBW107506X, ZZ107506X
Specifications
OE Manufacturer | Bendix |
Series | 5904 |
Output | 15.8 CFM |
Brand | Bendix |
Supersedes | 5014428X |
Stroke | 54 mm. |
MPN | K056647X |
VMRS | 013-009-001 |
UOM Quantity (Per Unit of Measure) | 1 |
Unit of Measure (case, ea, drum, etc.) | each |
Benefits | This BA921 Series Air Compressor is a single cylinder, single stage compressor with a rated displacement output of 15.8 CFM at 1250 RPM. It's designed for flange mounting. The inlet port is located on the top of the compressor, while the discharge port is located on the side of the compressor. This is a remanufactured product. |
