  • Bendix BA-922 Reman Air Compressor - 5013059X

Bendix BA-922 Reman Air Compressor - 5013059X

Details

Air compressors and the systems around help pump clean air that powers various aspects in the trucks undercarriage, one of the biggest being your truck's air brake system. It's important to properly maintain every part of your truck's compressor so that it can correctly feed pressurized air into all of the various parts of the truck.

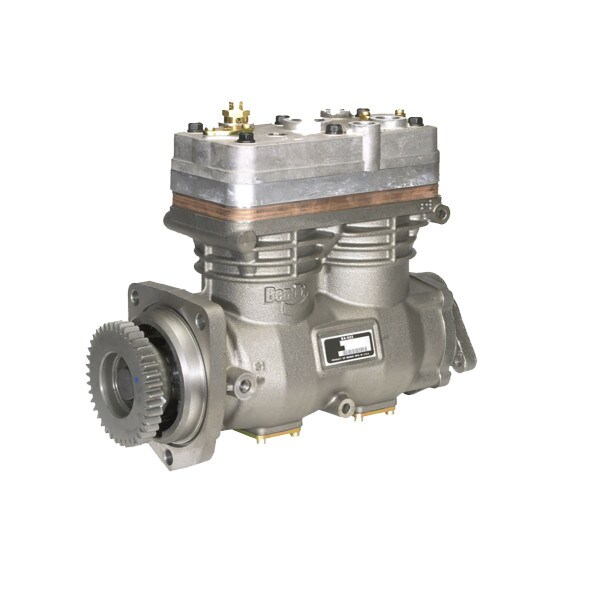

This Bendix BA922 Series Air Compressor is a twin cylinder, single stage compressor with a rated displacement output of 31.7 CFM at 1250 RPM. It's designed for flange mounting. The inlet port is located on the top of the compressor, while the discharge port is also located on the top of the compressor. This compressor is for Caterpillar C15 ACERT and C18 ACERT engine applications.


These Air Compressors are under warranty for 2 years or 200,000 miles. This particular product is a remanufactured product. Save money when sending back the core of the product upon purchase. Buying reman products are also beneficial to the environment.


Bendix Commercial Vehicle Systems have been a staple in the heavy duty truck industry, providing cutting-edge safety technology, energy solutions and air brake solutions and systems for well over a century. They've pioneered systems that are now standard on heavy duty trucks. Bendix will always look out for your truck's future, which makes them the best option for your present. Trust Bendix with your truck's future, today.


Cross References

10R2768, 2269580, 5011625, 5013059, 5013059BXR, 5013070, 5013071, 745-5013059X, 7455013059X, 801595, BW5013059X, BX5013059X, P5013059BXR, P:5013059BXR, R9555013058X, R9555013059X

Specifications

OE ManufacturerBendix
Series5906
Output31.7 CFM
BrandBendix
Stroke54 mm.
MPN5013059X
VMRS013-009-001
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
BenefitsThis BA922 Series Air Compressor is a twin cylinder, single stage compressor with a rated displacement output of 31.7 CFM at 1250 RPM. It's designed for flange mounting. The inlet port is located on the top of the compressor, while the discharge port is also located on the top of the compressor. This is a remanufactured product.

Features

  • BA922 Series Air Compressor
  • Twin Cylinder Single Stage
  • Rated Displacement at 31.7 CFM at 1250 RPM
  • Flange Mounting
  • Remanufactured
  • Top Inlet Port Placement, Top Discharge Port Placement
  • 2 Year, 200,000 Mile Warranty

Includes

One (1) Remanufactured Air Compressor


Warranty

2 Year, 200,000 Mile Warranty


Returns, Warranty & Cores

For warranty, return, or core information please reach out to customer service or visit our Policy & Procedures page located at the footer of our website.

Prop 65

WARNING: Cancer and Reproductive Harm -
