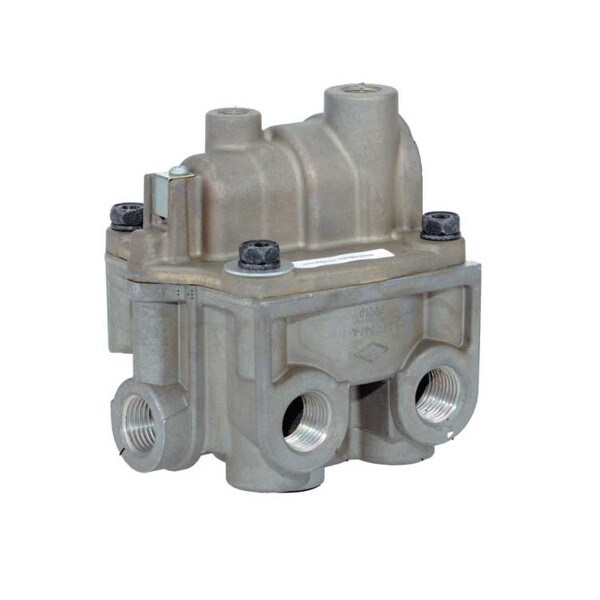

Bendix BP-RI Bobtail Brake Proportioning Relay Valve - 065145N
Cross References
065145, 065145BXW, 3500192, 3945988, 65145, 65145N, 745-65145N, 74565145N, BAN65145N, BBH-RB-65145, BBHRB65145, BEN65145N, BW65145N, BX65145N, BXK065145, K065145, RB-65145, RB65145, TWDBEN65145N 065145, 065145BXW, 170.065145, 3500192, 3541456C1, 3576464C1, 3578105C1, 3578105C2, 3584116C2, 3584117C1, 3584117C2, 3606770C1, 3606770C2, 3902993C1, 3902993C2, 3902993C3, 3945988, 3949428, 4C4Z-18124-HB, 6127088C1, 65143, 65145, 65145X, 66422, 66445, 745-65145N, 74565145N, 83163, 83167, 83175, 85929, AA615, APL-100870, AT-811, BAN65145N, BBH-RB-65145, BBHRB65145, BEN65145N, BW 065145, BW65145N, BX065145, BX65145N, BXK065145, FC4Z-18124-HB, FLTBV145, K065145, L3081426, OE13402S, RB-65145, RB65145, S-C517, TWDBEN65145N
Specifications
| Item-Level GTIN: | 7894294738670 |
| EXPI Data (Country of Origin): | Mx |
| Item Quantity Size UOM: | Ea |
| Description (Long Product Description): | Press. Proportioning Valve |
| Body Configuration: | 2 Sup / 4 Del (2H + 2V) |
| Control Port: | 1/8-27 Npt |
| Crack Pressure: | 4.0 Psi |
| Delivery Port 1: | 1/2-14 Npt |
| Delivery Port 2: | 1/2-14 Npt |
| Delivery Port 3: | 3/8-18 Npt |
| Delivery Port 4: | 3/8-18 Npt |
| Exhaust Port: | Dust Shield |
| Market Indicator: | Aftermarket New |
| Maximum Operating Temperature: | 200 Adegf (93 Adegc) |
| Minimum Operating Temperature: | -40 Adegf (-40 Adegc) |
| Mounting: | 0.40 In X 0.96 In Slot (4X) |
| Mounting Bracket Direction: | Bracket Loose In Box |
| Mounting Bracket Location: | Bracket Loose In Box |
| Mounting Orientation (Cw From Front Face): | Bracket Loose In Box |
| Service Port: | 1/4-18 Npt |
| Supply Port 1: | 1/2-14 Npt |
| Supply Port 2: | 1/2-14 Npt |
| Tmc Washer: | Rv040 |
