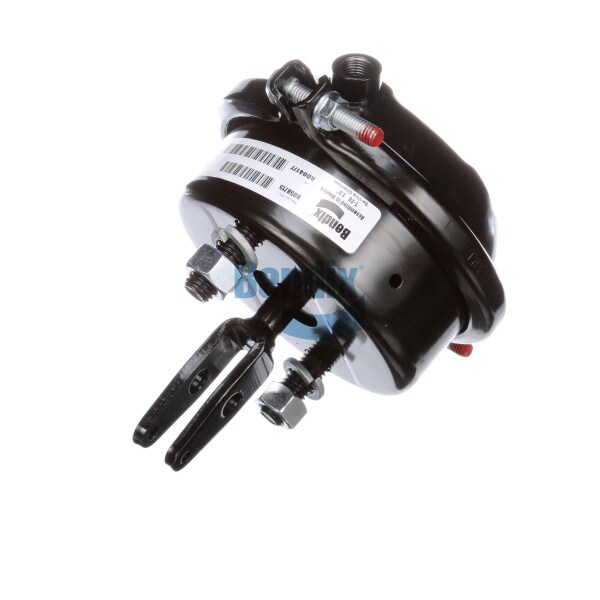

Bendix TYP-20 Brake Chamber (S-Cam) - K058715
Details
Brake chambers pack the power and the force in your vehicle's braking system. When you apply the brakes, pressurized air is forced through the chamber, applying the brakes quickly and safely. Having safely sealed and reliable brake chambers as well as their subsequent parts are a must-have in any braking system.
TheBendix S-Cam Brake Chamber W/ Welded Clevis - K058715 was made to OEM standards to fit perfectly into your semi-truck. This T20 s-cam from the experts at has a stoke that measures in at 2.5 in. and is considered a standard stroke brake chamber. It's pushrod is 2.25 inches in length with a thread diameter of 5/8 of an inch. This particular service chamber comes with a welded clevis. For a great way to make sure you are using only the best possible parts in your semi-truck, choose theBendix S-Cam Brake Chamber W/ Welded Clevis - K058715!
This product comes with a three year, 300,000 mile warranty.
Bendix Commercial Vehicle Systems have been a staple in the heavy duty truck industry, providing cutting-edge safety technology, energy solutions and air brake solutions and systems for well over a century. They've pioneered systems that are now standard on heavy duty trucks. Bendix will always look out for your truck's future, which makes them the best option for your present. Trust Bendix with your truck's future, today.
Cross References
1420001, 1621010, 1621901, 1621901X, 179.SC20, 179.SC20LW225, 179SC20LW225, 20SCLW2, 2602424C91, 3520445, 3521994, 3523586, 5396-SC20LCW, 5396SC20, 5396SC20LCW, 5554-1621901, 55541621901, 655 3570004C91, 655 ZAJ1621901, 767653330969, 85103654, 85125543, 875 204113598, 875 85103654, A953276T20, B253276T20, BSC20LSWC, BXK058715, EBC20S, FLTS20S20, HD20S, HDXSC20LCW, K058715BXW, KSC20, MG1621901, MGM1621901, MGMZAJ1621901, MIDSC20LCW, OTR20WC, OTR20WC-2.25, OTR20WC225, PLBSC20LSWC-2.25, PLBSC20LSWC225, S127200215, SC-20, SC20, SC2000, SC20LCW, SC20LCWM1D, SC20LW225, V42 1621001, V42 1621010, V42 1621013, WA20SC3, ZAJ1621901, ZZSC20LCW
Specifications
| Item-Level GTIN: | 7894294763788 |
| EXPI Data (Country of Origin): | Mx |
| Item Quantity Size UOM: | Ea |
| Description (Long Product Description): | Brake Chamber (S-Cam) |
| Chamber Type / Size: | T20 |
| Clamp Angle: | 0Adeg |
| Clevis / Yoke Arm Bushing Pin Diameter: | A~ .50 In (A~ 12.7 Mm) |
| Clevis / Yoke Arm Link Pin Diameter: | A~ .25 In (A~ 6.35 Mm) |
| Clevis / Yoke Pin Spacing: | 1.30 In (33 Mm) |
| Clevis / Yoke Style: | Welded |
| Market Indicator: | Aftermarket New |
| Maximum Operating Temperature: | 175 Adegf (79 Adegc) |
| Minimum Operating Temperature: | -40 Adegf (-40 Adegc) |
| Mounting Stud Length: | 1.47 In (37.3 Mm) |
| Port Angle: | 0Adeg |
| Push Rod Length (To Yoke Pin Center When Applicable) [In]: | 3.90 In |
| Push Rod Thread / Style: | Not Applicable To This Part |
| Service Chamber Joint Type: | Double Clamp Band |
| Service Port (11) - Center: | 3/8-18 Npt (Plugged) |
| Service Port (11) - Side: | 3/8-18 Npt |
| Stroke: | 2.50 In (63.5 Mm) |
| Stud Spacing: | 4.75 In (120.7 Mm) |
| Stud Thread Size: | 5/8-11 Unc-2A |
| Weatherproof: | No |
