Bendix Remanufactured WABCO Compressor - 9111535100X
Details
Air compressors and the systems around help pump clean air that powers various aspects in the trucks undercarriage, one of the biggest being your truck's air brake system. It's important to properly maintain every part of your truck's compressor so that it can correctly feed pressurized air into all of the various parts of the truck.

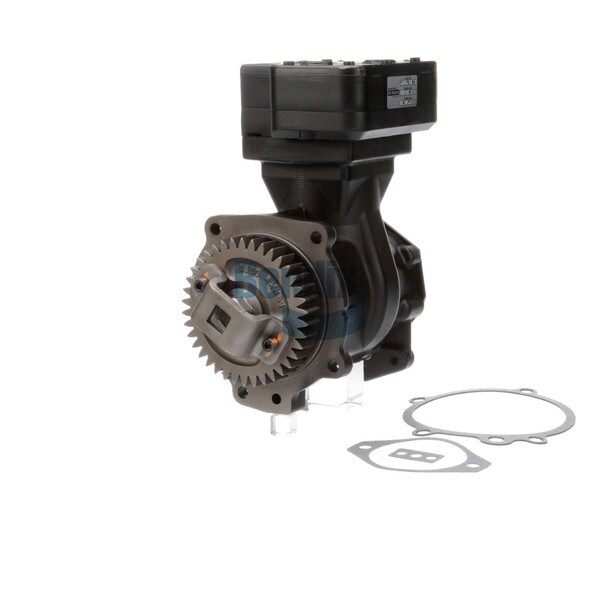

This Bendix SS318 Series Air Compressor is a single cylinder compressor with a rated displacement output of 18.7 CFM at 1250 RPM. It's designed for flange mounting types. This compressor is for Cummins ISX engine applications.
These Air Compressors are under warranty for 3 years or 300,000 miles with parts and labor included. This particular product is a remanufactured product. Save money when sending back the core of the product upon purchase. Buying reman products are also beneficial to the environment.
Bendix Commercial Vehicle Systems have been a staple in the heavy duty truck industry, providing cutting-edge safety technology, energy solutions and air brake solutions and systems for well over a century. They've pioneered systems that are now standard on heavy duty trucks. Bendix will always look out for your truck's future, which makes them the best option for your present. Trust Bendix with your truck's future, today.
Cross References
3101137, 3101137RX, 3103413, 3103413RX, 3104216, 3104216RX, 340 3104216RX, 3681902, 3681904, 4318216, 4318216RX, 4952758, 4952758RX, 911 153 510, 911 153 607, 911153510, 9111535100, 9111535107, 911153607, FRL 42029146, HB9111535100X, ML9111535100X, R9559111535100X, RF3509569, S21431
Specifications
| Item-Level GTIN: | 7894294759026 |
| EXPI Data (Country of Origin): | Us |
| EXPI Data (Core Group): | Rb |
| Item Quantity Size UOM: | Ea |
| Description (Long Product Description): | Compressor |
| Bore Size: | 85 Mm |
| Compressor Drive Type: | Gear |
| Compressor Manufacturer: | Wabco |
| Coolant Inlet Port: | M18 X 1.5 Straight Thread O-Ring Port |
| Cooling: | Water-Cooled |
| Crankshaft Drive Type: | Threaded |
| Discharge Air Port: | M27 X 2.0 Straight Thread O-Ring Port |
| Displacement (Cfm At 1250 Rpm): | 18.7 Cfm |
| Drive Gear Included: | Yes |
| Engine Manufacturer: | Cummins |
| Engine Model: | Isx |
| Governor Included: | No |
| Governor Port: | M10 X 1.0 Straight Thread O-Ring Port |
| Lubrication: | Engine Oil Feed |
| Market Indicator: | Aftermarket Remanufactured |
| Mounting Flange Location: | Flange, Front |
| Number Of Cylinders: | 1 |
| Number Of Mounting Holes: | 4 |
| Thru-Drive Mounting Type: | Flange - 4 Hole |
| Thru-Drive Shaft Connector: | 11-Tooth Spline |
