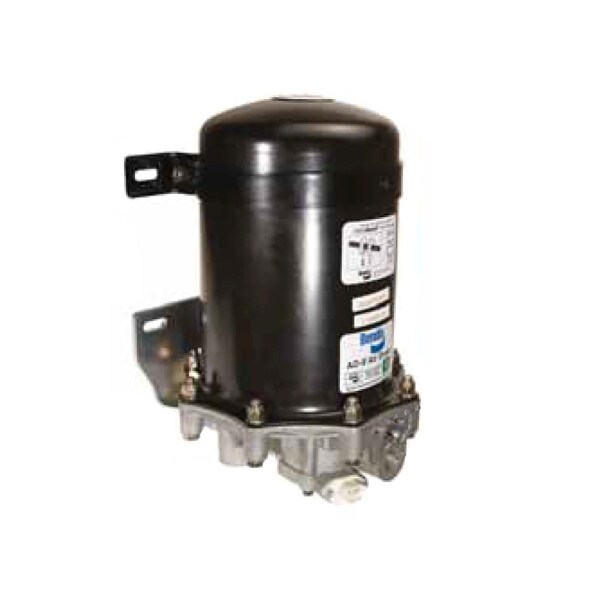

Bendix AD-9 Air Dryer - K046157
Details
As technology advances, so do the amount of applications that require the use of a truck's air system. Dealing with contaminated air can be detrimental for a vehicle's health, which makes Air Dryers and the systems attached to them vital for long term success. The last thing you want is down time due to brake system issues, so keep the air in your system clean with our Air Dryer Systems and their subsequent parts.
These Bendix AD9 Series Air Dryers are ideal for applications that require frequent starts and stops as well as longer compressor cycles. It also comes with a removable purge valve assembly. The cartridges are standard type and feature 100% new dessicant, which provides longer life than other Reman air dryer cartridges that use reclaimed desiccant material.
Air Dryer systems are under warranty from 1 to 3 years or 100,000 to 350,000 miles depending on usage category. Please refer to our literature on the warranty information to see which category you fall under. Labor is included in reimbursement within the first year or 100,000 miles.
Bendix Commercial Vehicle Systems have been a staple in the heavy duty truck industry, providing cutting-edge safety technology, energy solutions and air brake solutions and systems for well over a century. They've pioneered systems that are now standard on heavy duty trucks. Bendix will always look out for your truck's future, which makes them the best option for your present. Trust Bendix with your truck's future, today.
Specifications
| Item-Level GTIN: | 4068078215852 |
| EXPI Data (Country of Origin): | Mx |
| Item Quantity Size UOM: | Ea |
| Description (Long Product Description): | Air Dryer |
| Air Dryer Type: | Stand-Alone |
| Body Mounting: | A~ .425 Hole With 3/8-24 Unf-2A Bolted Joint (8X) |
| Cartridge Stabilizer Ring Included: | Yes |
| Cartridge Thread: | 5/8-11 Unc-2A |
| Cartridge Type: | Puraguard (Coalescing) |
| Cautionary Note(S): | Do Not Replace Pg Cartridge With Standard/Gc Cartridge. |
| Clamp Band Angle (Cw From Sup): | Not Applicable To This Part |
| Clearance To Remove Cartridge: | 11.00 In |
| Control Port: | 1/4-18 Npt |
| Cut-In Pressure: | Not Applicable To This Part |
| Cut-Out Pressure: | Not Applicable To This Part |
| Delivery Port 1: | 1/2-14 Npt |
| Delivery Port 2: | Not Applicable To This Part |
| Extended Purge Port: | Not Applicable To This Part |
| Governor Included: | No |
| Governor Mounting Bracket: | Not Applicable To This Part |
| Governor Mounting Bracket Angle (Ccw From Sup): | Not Applicable To This Part |
| Governor Type: | Not Applicable To This Part |
| Heater / Thermostat Rating: | 12V / 75W |
| Heater Connector Color: | White |
| Heater Connector Type: | Metri-Pack 280 Series 2-Way Sealed Connector (Male) |
| Lower Mounting Bracket: | .41 In X 1.15 In Slot (2X) |
| Lower Mounting Bracket Angle (Ccw From Sup): | Loose In Box |
| Market Indicator: | Aftermarket New |
| Maximum Inlet Temperature: | 160 Adegf (71 Adegc) |
| Minimum Operating Temperature: | -40 Adegf (-40 Adegc) |
| Purge Exhaust Port: | Standard |
| Purge Valve Type: | Hard Seat |
| Purge Volume: | Standard |
| Remote Fill Feature: | Not Applicable To This Part |
| Remote Purge Port: | Not Applicable To This Part |
| Safety Valve Opening Pressure: | 200 Psi |
| Supply Port: | 1/2-14 Npt |
| Turbo Cut-Off Function: | Not Applicable To This Part |
| Upper Mounting Bracket: | .39 In X 1.15 In Slot (2X) |
| Upper Mounting Bracket Angle (Ccw From Sup): | Loose In Box |
| Upper Mounting Bracket Height (From Lower Mounting Bracket): | Loose In Box |
| Upper Mounting Type: | Strap (Stainless Steel) |
