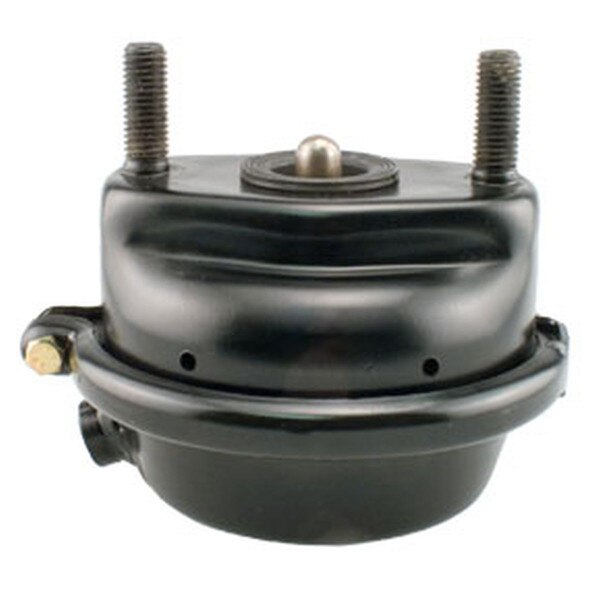

Autocar T20 Service Brake Chamber - 75302-0073

Product Description

Brake chambers pack the power and the force in your vehicle's braking system. When you apply the brakes, pressurized air is forced through the chamber, applying the brakes quickly and safely. Having safely sealed and reliable brake chambers as well as their subsequent parts are a must-have in any braking system.

This Autocar size T20 Brake Service Chamber is built with steel pressure housing that's coated for corrosion. It's built with a world class flexible diaphragm that operates even in temperatures as low as -40 degrees Fahrenheit. This chamber is also equipped with an orange alert stroke indicator and a self-piloting dust shield. It has a stoke that measures in at 2.25 in. and is considered a standard stroke brake chamber. It's pushrod is 10.2 inches in length.

Autocar offers complete OEM genuine and "all makes" products, and with backing from over 1,000 suppliers, we are one of the most trusted names in the industry. Call us today or shop our online store to discover how Autocar parts can help fulfill your trucking needs!

Features

• Size T20 Brake Service Chamber
• World class flexible diaphragm at temperatures as low as -40 degrees Fahrenheit
• Built with Steel Pressure Housing that's coated for corrosion resistance
• Orange Alert Stroke Indicator
• Dust Shield that's self-piloting
• Standard Stroke
• 2.25 in. Stroke Size
• 10.2 in. Pushrod Length

Includes

One (1) Brake Service Chamber

Specifications

Cross Reference

SC20
