  • Stemco AIR SUSPENSION BAG HENDRICKSON MACK - 1R12-404

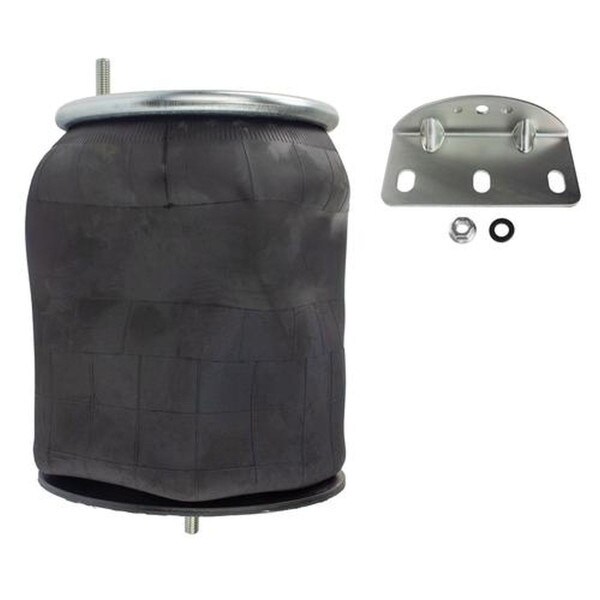

Stemco AIR SUSPENSION BAG HENDRICKSON MACK - 1R12-404

Back

Details

Perfect for your semi-truck, the Stemco AIR SUSPENSION BAG HENDRICKSON MACK - 1R12-404 was designed to be the replacement part you've been looking for.


Made using long lasting and reliable materials, the Stemco AIR SUSPENSION BAG HENDRICKSON MACK - 1R12-404 will provide you with years of durability and impeccable use.


Warranty information may be based on the product and application. Please contact us for additional information.


For an excellent way to make sure your commercial vehicle is running at peak condition, choose the Stemco AIR SUSPENSION BAG HENDRICKSON MACK - 1R12-404.


Back

Cross References

10-17.5, 1000-AS9375, 1000AS9375, 1DK23M-9375X, 1DK23M9375X, 1R12-1076, 1R12-404, 1R12-488, 1R121076, 1R12404, 1R12488, 1S12-007, 1S12-030, 1S12-031, 1S12007, 1S12030, 1S12031, 25158024, 25173621, 3040-W013589375, 3040W013589375, 352-9375, 3529375, 3645Q27, 364SQ27, 39375 KPP, 39375KPP, 452-9375L, 4529375L, 50899-001, 50899-002, 50899-002L, 50899-1, 50899-2, 50899001, 50899002, 50899002L, 508991, 508992, 570 1R12404, 57QL414M, 613 508991, 613 508992, 613 57122002, 613 571221, 64264, 66245, 68616, 68918, 695 364QS27, 695 364SK27, 695 364SQ27, 695 57QL414M, 875 25158024, 910175P440, 910175P451, 9375C, AB1DK23M-9375, AB1DK23M9375, AS-8451, AS8451, AS9375, AS93750, FIW013589375, FL3Z7213BA, FS9375, FSIW013589375, GAB 9375, GBH1R12404, GTK-358-9375, GTK3589375, GYR1R12404, HDV-HDV9375, HDV9375, MAF9375, RCAS9375, REAW013589375, SC2773, TAS9375, TR9375, TWDW013589375, U71 9375, V68451, V6AS8451, W01-358-9375, W01-455-9375, W013589375, W014559375, WA01-9375C, WA019375C

Back

Specifications

Brandstemco inc
MPN1R12-404
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
BenefitsBuilt using high-quality, reliable materials.

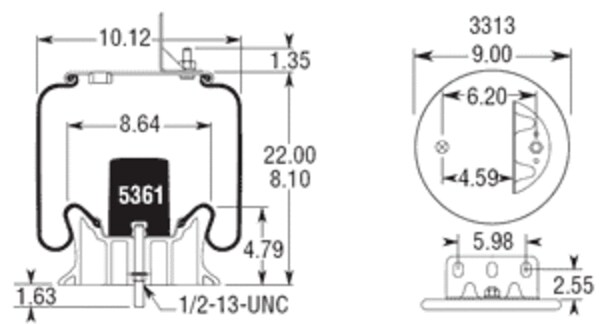

Features

  • Top Plate Hole/Stud: 2
  • Bottom Plate Hole/Stud: 1
  • Top Plate Diameter: 9
  • Bottom Plate Diameter: 10.31
  • Collapsed Height: 8.1
  • Flexmember: 566-24-3-097
  • Piston: 566-20-7-246
  • Piston Type: S
  • Goodyear Trimmed: 1R12404
