  • Meritor AIR SPRING - MAF9069

Meritor AIR SPRING - MAF9069

Back

Details

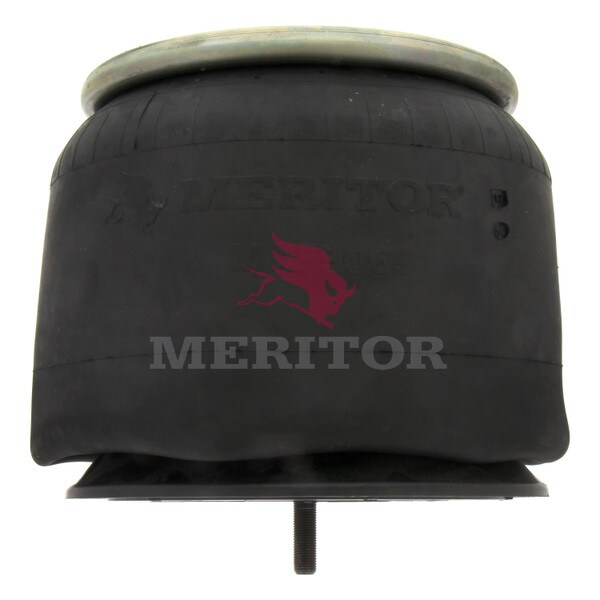

MERITOR AIR SPRING-REVERSIBLE SLEEVE STYLE


Warranty depends on application and product type. Contact us for more information.


Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!


Back

Cross References

019069, 03-01649, 03-02038, 03-02456, 03-04759, 03-06746, 03-07112, 03-10042, 0301649, 0302038, 0302456, 0304759, 0306746, 0307112, 0310042, 10-14, 1000-AS9069, 1000AS9069, 1410108001, 1R12-669, 1R12-676, 1R12069, 1R12669, 1R12676, 301649, 302038, 302456, 3040-W013589069, 3040W013589069, 304759, 307112, 3918328, 551010, 9069RT, 91014P312, ABPN32019069, AS9069, AS90690, ASPR9M149069, C81-1012, C811012, FIRW01-358-9069, FIRW013589069, FIW013589069, FLRTMX1R12069, FLT1R12069, FLTA1R12069, FS9069, FSIW013589069, G2299069200, GBH1R12069, GBH1R12669, GTK-358-9069, GTK3589069, GY1R12069, GY1R12669, GYR1R12069, GYR1R12669, MLF8113, PR9M14, RCAS9069, REA1R12-069, REA1R12069, REAW013589069, TAS9069, TR9069, TWDW013589069, W01-358-9069, W01-703-5456, W01-703-8923, W013589069, W017035456, W017038923, WA01-9069C, WA019069C

Back

Specifications

BrandUnassigned
MPNMAF9069
UPC884879914749
Width7.1 in.
VMRS016-008-001
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
Height7.2 in.
Benefits

AIR SPRING


Features

  • Application: Peterbilt 03-02456; Peterbilt 03-04759; Peterbilt 03-01649; Peterbilt 03-06746; Peterbilt 03-07112; Peterbilt 03-02038 (Air-Trac); Mfg. SV# Peterbilt 03-10042
  • Bead Plate Diameter Bottom: 9.50 in.
  • Bead Plate Diameter Top: 9.00 in.
  • Collapsed Height: 7.50 in.
  • Convoluted Style: 1T Reversible Sleeve
  • Max. Height: 18.00 in.
  • Part Diameter: 10.12 in.
  • Piston Height: 4.75 in.
  • Stud Configuration-Bottom: 01
  • Stud Configuration-Top: 03
  • Stud Mount-Bottom Flat: Stud
  • Stud Mount-Top Flat: Flat

Includes

AIR SPRING


Warranty

Warranty depends on application and product type. Contact us to learn more.
