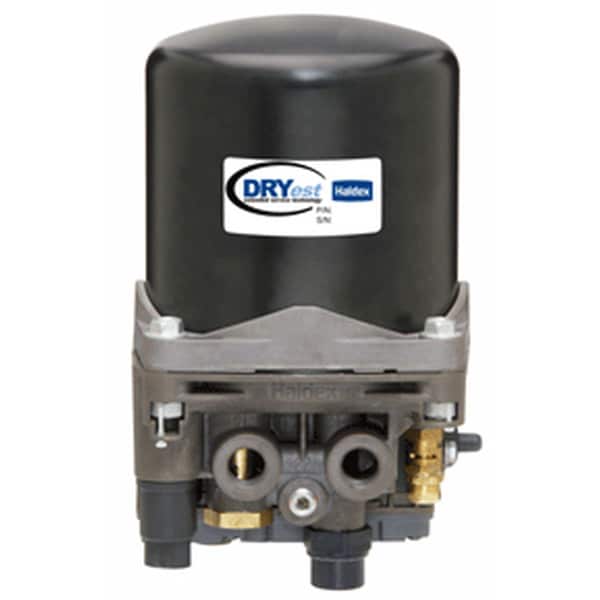

Haldex Air Dryer 24V - DA35115
Details
*THIS PART IS NON-RETURNABLE*
Product Description
When it comes to your air and brake systems, not just any parts will do. Trust Haldex brake solutions for enhanced safety, environment, and vehicle dynamics. Haldex Air Dryer 24V - DA35115 has 5 stages of drying with Inlet Temperature of -40 degrees F to 170 degrees F. Maximum Working Pressure of 150 psi and Safety Relief Pressure of 160 psi. Drying Capacity of 5.8 SCF with Desiccant Cartridge of 3.5 lbs. Assembly Weight is 13.5 lbs and Maximum Inlet Airflow is 35 SCFM. Pressure Drop is 2.5 psi at 15 SCFM/120 psi and Regeneration Valve System Purge Drain is a Silencer. Turbo Protection is 35 psi and an Inlet is required.
Products are warrantied to be free from defects under warranty terms and conditions. Specific warranties vary slightly from products installed on new vehicles to replacement parts installed at a later date.
Haldex is a Sweden-based company that operates worldwide in 19 countries. Haldex develops and produces reliable and innovative solutions that improve safety, vehicle dynamics and environmental sustainability in the global commercial vehicle industry. They are one of the world-leading suppliers of brake and suspension solutions, and are developing new technology for electrical and autonomous vehicles. From air compressors and air dryers to valves and hose clamps, Haldex has everything you need to keep your brake and suspension systems at peak performance all year long. Invest in the best with Haldex.
Features
- System Regeneration: No
- Integrated Governor: No
- Stages of Drying: 5
- Inlet Temperature -40 degrees F to 170 degrees F
- Maximum Working Pressure: 150 psi
- Safety Relief Pressure: 160 psi
- Drying Capacity: 5.8 SCF
- Desiccant Cartridge: 3.5 lbs
- Assembly Weight 13.5 lbs
- Maximum Inlet Airflow: 35 SCFM
- Pressure Drop: 2.5 psi at 15 SCFM/120 psi
- Regeneration Valve System Purge Drain: Silencer
- Turbo Protection: 35 psi Inlet Required
Includes
One (1) air dryer and one (1) desiccant cartridge
Warranty
Products are warrantied to be free from defects under warranty terms and conditions. Specific warranties vary slightly from products installed on new vehicles to replacement parts installed at a later date.
Cross Reference
HDXDA35115, N4260C
Specifications
| Brand | Haldex |
| MPN | DA35115 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Benefits | 5 stages of drying with Inlet Temperature of -40 degrees F to 170 degrees F. Maximum Working Pressure of 150 psi and Safety Relief Pressure of 160 psi. Drying Capacity of 5.8 SCF with Desiccant Cartridge of 3.5 lbs. Assembly Weight is 13.5 lbs and Maximum Inlet Airflow is 35 SCFM. Pressure Drop is 2.5 psi at 15 SCFM/120 psi and Regeneration Valve System Purge Drain is a Silencer. Turbo Protection is 35 psi and an Inlet is required. |
