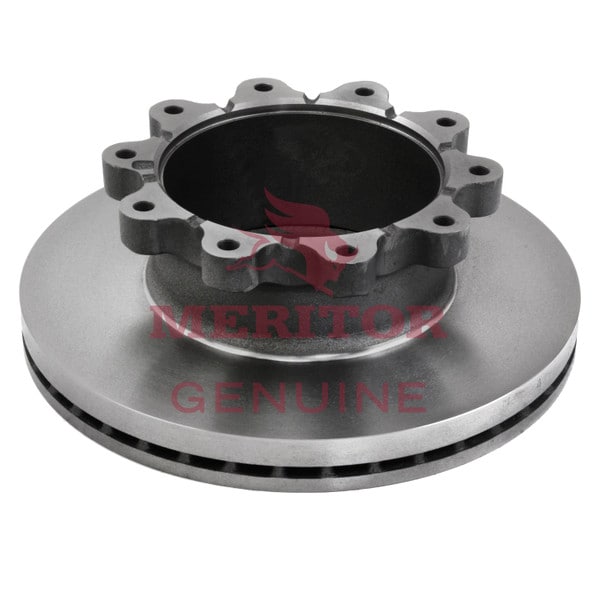

Meritor Genuine ROTOR W HDW - 23123642015

Product Description

AIR DISC BRAKES - ROTOR

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Bolt Circle Diameter: 10 1/2 in.
• Bolt Circle Diameter (mm): 267 mm
• Bolt Hole Size: 5/8 in.-18
• Discard Thickness: 1 7/16 in. or 37 mm
• Flange Thickness: 1 1/8 in. or 29 mm
• Mounting Holes: 10
• New Disc Thickness: 1 3/4 in. or 45 mm
• Outside Diameter: 17 1/16 in.
• Outside Diameter (mm): 434 mm
• Pilot Diameter: 8 1/2 in.
• Pilot Diameter (mm): 216 mm
• Rotor Depth: 5 3/16 in.
• Rotor Depth (mm): 131 mm
• Type: U-Shaped

Includes

ROTOR W HDW

Warranty

Warranty depends on application and product type. Contact us to learn more.

Specifications

Cross Reference

125600, 15-03-1012, 15031012, 23123642002, 321801303ES, 55060F, 55060P, 56642, 56AR642G, 8235-23123642002, 823523123642002, ADR180453, ADR2030, BR17D114, G0793642000, HR23123642002, MER23123642002, SSR930, TDA23123642002, TWD23123642002125600, 15-03-1012, 15031012, 23123642002, 321801303ES, 55060F, 55060P, 56642, 56AR642G, 8235-23123642002, 823523123642002, ADR180453, ADR2030, BR17D114, G0793642000, HR23123642002, MER23123642002, SSR930, TDA23123642002, TWD23123642002
