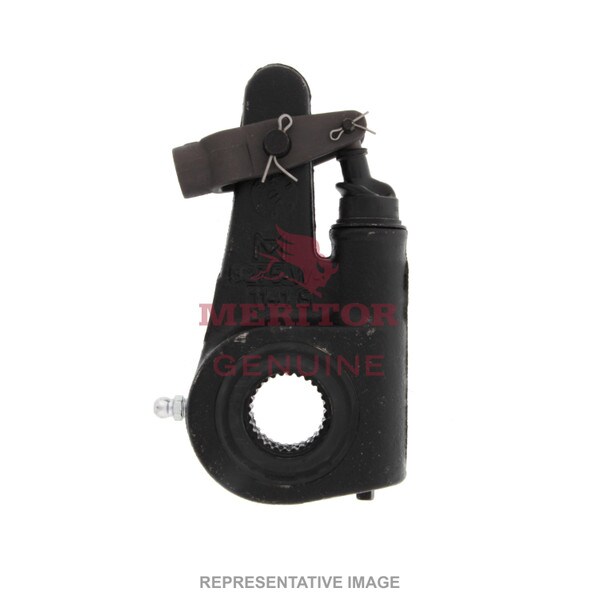

Meritor Genuine AY-ASA-1.50-28 - R802415

Product Description

AIR BRAKE - ASA - MERITOR

Warranty information may be based on the product and application. Please contact us for additional information.

For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine AY-ASA-1.50-28 - R802415 is the ideal way to make sure you have the replacement part you've been looking for.

Features

• Aftermarket Extended Warranty - General: 3 Years / Unlimited Miles
• Aftermarket Extended Warranty - Heavy Se: 3 Years / Unlimited Miles
• Aftermarket Extended Warranty - Linehaul: 5 Years / 500K Miles
• Aftermarket Extended Warranty - Off-High: 3 Years / Unlimited Miles
• Arm Length: 5.00 in.
• Chamber Sizes: 20
• Clevis Thread Diameter: 0.625 in.
• Clevis Threads per inch: 18
• Clevis Type: Straight
• Maximum Torque Rating: More than 45 inch pounds
• Model: Meritor
• Notes: Yellow piston. Drum brake.
• OEM: Meritor
• Production Part Number: A14-3275-Y-1143
• Related Clevis Kit: R810019
• Related Unclevised Number: R803041
• Sensing Type: Stroke
• Slack Spline Count: 28
• Slack Spline Diameter: 1.50 in.
• Type: Type 2

Includes

Meritor Genuine AY-ASA-1.50-28 - R802415

Warranty

Warranty information may be based on the product and application. Please contact us for additional information.

Specifications

Cross Reference

0034286, 0304176PLUS, 05-238, 05-562, 055-040-04, 05562, 05655, 065175, 065176, 10-400-10140, 10-400-10144, 1006809, 1010804, 101133N, 101290, 10140, 10140HDA, 103345, 10355BULK, 1040010140, 1040010144, 104476, 10600055, 106201, 106900, 106902, 106926, 107101, 107110, 107112, 107127, 107275, 107277, 107278, 107736, 107772, 107773, 107787, 107994, 108091, 108093, 108117, 108430, 1090262, 1090263, 109519, 1141HDA, 1141TP, 1191037, 12375551, 1332830, 1342840, 1352830, 1372830, 138.283, 1382830, 1392836, 1392837, 15056, 1666360C91, 174 107112, 17A2367A, 17A2384, 191-0067, 1910067, 2011H, 20714924, 21691670, 22003, 22103, 2308233, 2310393, 24003, 2458BK, 25QD257P2, 25QD259P2, 25QD259P4, 25QD259P7, 25QD260M, 25QD260M5, 25QD340P6, 25QD341P2, 25QD410, 25QD410P5, 25QD412, 25QD419P4, 25QD49, 25QD51P3, 286740, 286865B, 286965, 2869651, 286965BXW, 286965N, 286965X, 288282, 288752, 289312, 289312/13, 28931213, 289313, 289933, 289934, 313577, 3398-AS1039, 3398-AS1141, 3398-AS1173, 3398AS1039, 3398AS1141, 3398AS1173, 3508802, 3508814, 35122, 3512387, 3518990, 3523702, 3523736, 3820002201, 3946256, 3947652, 400-10067, 400-10100, 400-10140, 400-10212, 400-10305, 40010067, 40010100, 40010140, 40010140-MD, 40010140M1D, 40010140MD, 40010144, 40010144-MD, 40010144M1D, 40010144MD, 40010183, 40010212, 40010212M1D, 40010305, 40010305M1D, 40020212, 40020212M1D, 40020234, 40020234M1D, 4017A23665, 409-10070, 409-10093, 409-10125, 409-10146, 409-10149, 409-10167, 409-10178, 409-10225, 409-10241, 409-10288, 409-10314, 409-10343, 409-10360, 409-10404, 409-10405, 409-10412, 409-10426, 409-10428, 409-10443, 409-10457, 409-10505, 409-10531, 409-10552, 409-10561, 409-10566, 409-10579, 409-10615, 409-10678, 409-10680, 409-10732, 409-10741, 409-10742, 409-10816, 409-10858, 409-10868, 409-10896, 409-10946, 409-10947, 409-10983, 409-10984, 409-20006, 40910070, 40910093, 40910125, 40910146, 40910149, 40910167, 40910178, 40910225, 40910241, 40910288, 40910314, 40910343, 40910360, 40910404, 40910405, 40910426, 40910428, 40910443, 40910457, 40910505, 40910531, 40910552, 40910561, 40910566, 40910579, 40910615, 40910678, 40910680, 40910732, 40910741, 40910742, 40910816, 40910858, 40910868, 40910896, 40910946, 40910947, 40910983, 40910984, 40920006, 40920023, 42521, 44051, 44071, 458BK, 458SBK, 480 BRUCB22103, 480 MTRR801074, 4844051, 4L-6-62, 4L-6-64, 4L662, 4L664, 4W8055, 5-238, 500-10140, 500-10144, 50010140, 50010144, 506272, 509-10070, 509-10093, 509-10149, 509-10225, 509-10241, 509-10314, 509-10404, 509-10405, 509-10426, 509-10443, 509-10566, 509-10579, 509-10678, 509-10742, 50910070, 50910093, 50910149, 50910225, 50910241, 50910314, 50910404, 50910405, 50910426, 50910443, 50910566, 50910579, 50910678, 50910742, 516160, 516162, 52028A, 52529, 531802000, 5396-40010140, 5396-40010144, 5396-40020212, 5396-40020234, 539640010140, 539640010144, 539640020212, 539640020234, 5504004, 5509300, 56041, 600028, 65173, 65175, 65175P, 65175TP, 65176, 65176HDA, 65196, 65277, 65564, 65575, 6925A, 6925B, 716004, 716005, 716006, 745-K041877, 745K041877, 76401-0100, 76401-3509, 764010100, 764013509, 767653143361, 767653143408, 767653289175, 767653311814, 77065175, 77065176, 7883-40010140, 7883-40010144, 788340010140, 788340010144, 801352, 801354, 8060858, 808113, 808129, 808132, 808142, 808149, 808166, 808179, 8084132, 808685, 808746, 809614, 810601, 810603, 815787, 815792, 815806, 815811, 815828, 815829, 818223, 818991, 819675, 8235-R802486, 8235-R802487, 8235R802486, 8235R802487, 8235R803054, 8235R803055, 825703, 8316721, 85084, 85989, 86965, 89460, 90186810, 973649, A-3275-X-596, A1-3275-S-1085, A1-3275-T-1086, A1-3275S1085, A1-3275T1086, A1-3275Y1091S, A1-3275Z1092S, A10-3275-T-592S, A10-3275-Z-598S, A10-3275N716S, A10-3275T592S, A10-3275Z598S, A103275N716S, A103275T592S, A103275Z598S, A11-3275N716S, A113275N716S, A12-3275-T-592S, A12-3275-Z-598S, A12-3275T592S, A12-3275Z598S, A123275T592S, A123275Z598S, A13-3275-B-1146S, A13-3275-C-1147S, A13275E1279, A13275S1085, A13275T1086, A13275Y1091S, A13275Y649, A13275Z1092S, A133275B1146S, A133275C1147S, A15-3275N716S, A153275N716S, A16-3275B600S, A16-3275N716S, A16-3275V594S, A163275B600S, A163275N716S, A163275V594S, A17-3275B600S, A17-3275V594S, A173275B600S, A173275V594S, A19-3275-S-1059, A19-3275N716S, A193275N716S, A193275S1059, A2-3275-G1151S, A2-3275-K-1051S, A2-3275-U-1087S, A2-3275-V-1088S, A2-3275B600S, A2-3275K1051S, A2-3275L792S, A2-3275N716S, A2-3275T592S, A2-3275U1087S, A2-3275V1088S, A2-3275V594S, A2-3275Y1091S, A2-3275Z1092S, A2-3275Z598S, A20-3275-S-1059, A20-3275N716S, A203275N716S, A203275S1059, A22-3275B600S, A22-3275V594S, A223275B600S, A223275V594S, A23275B600, A23275B600S, A23275K1051S, A23275L792S, A23275N716S, A23275T592, A23275T592S, A23275U1087S, A23275V1088S, A23275V594, A23275V594S, A23275Y1091S, A23275Z1092S, A23275Z598, A23275Z598S, A23849, A25-3275M1079, A253275M1079, A3-3275-B-1042S, A3-3275B1042S, A3275S1059, A3275X596, A33275B1042S, A43275X596, A44-3275-S-1059, A443275S1059, A453275S1059, A5-3275-N-716S, A51041, A53275N716S, A63275X596, A7085, A85084, ABPN42AS40010140, ACA-0988B700, ACCAS1141, ACF004205828, APL-102349, AS1001, AS1039, AS1041, AS1139, AS1141, AS1173, ASH40010140, ASH40010144, ASM802486, ASM802487, ATIR802486, ATIR802487, B5M3373, B71-6004, B71-6005, B71-6006, B716004, B716005, B716006, B716019, B716020, BBH-RB-10140, BBH-RB-10144, BBHRB10140, BBHRB10144, BC05238, BE065175, BE065176, BE286965, BEN065175, BG40010140, BGIKN44051, BGIKN44071, BGKN44051, BGKN44071, BH065175, BH065176, BH286965, BH65175, BHA7085, BNDK041877, BP065176, BP10140, BPM638, BW065175, BW065176, BW065196, BW065277, BW103345, BW104476, BW286740, BW286965, BW2869651, BW288282, BW289312, BW289313, BW65175, BW65176, BWBW065175, BWBW065176, BWBW286965, BWK041877, BWPM638, BWS065175, BWS065176, BX101133, BX101290, BX286740, BX286965, BX289313, BXK041877, BXK065176, CI22103, CI221A3, CI42106, CI421A6, CI72106, CS52321, CS52322, CS52343, CS52345, CS52349, CS52355, CS52365, CS56004, CS56012, CS56039, CS56041, CS56041M1D, DA10355, DKN44051, DLR801074, DLR824003, DX05509300, E-10781A, E-10788A, E-11402, E-11421, E-11422, E-11423, E-11424, E-146K, E-149K, E-167K, E-167K1, E-234K, E-235K, E-241K, E-2458, E-612HD, E-6904, E-6918, E-6918A, E-6925, E-6925A, E-6925B, E-6993, E-6993A, E10781A, E10788A, E11402, E11421, E11421A, E11422, E11422A, E11423, E11424, E11922, E146K, E149K, E167K, E167K1, E234K, E235K, E241K, E2458BK, E2458HD, E2458HDBK, E2458SBK, E2HZ2314C, E6904, E6918, E6918A, E6925, E6925A, E6925B, E6993, E6993A, E9HT2314AA, ECE2458, ECE2458BK, ECE6925B, EE2458BK, EIE6925, EIE6925A, EIE6925B, EORBR822003, ET815806, EUE2458, EUE2458BK, EUE2458HD, EUE2458HDBK, EUE6925A, EUE6925B, EUEE2458BK, F2HS2308BA, F8HT 2314 BA, F8HT2314BA, F8HZ2314BA, FLT40010140, FLT40010212, FLTAS1141, FLTR801074, FP2458, FP2458BK, FRL 42005322, FRL 42014136, FVBW065175, GHE2458BK, GHE6925B, GNAS1041, GT-56140, GT-580, GT56140, GTA-40010140, GTA-40010144, GTA40010140, GTA40010144, GUA51041, GUAS1001, GUAS1041, GUAS1141, GUAS1166, GUAS1173, GUN AS1039, GUN AS1141, GUN AS1173, GUNAS-1141, GUNAS1039, GUNAS1141, GUNAS1173, GUNSA102 03, GUNSA10203, GUNSA11903, HA-400-10140, HA-400-10144, HA-400-20212, HA40010140, HA40010144, HA40020212, HAE40010140, HAE40010144, HAL400-20212, HAL40010140, HAL40010144, HAL40010212, HAL40010305, HAL40020212, HB40010140, HD52028A, HDV-10140, HDV-51141, HDV-65175, HDV10140, HDV175P, HDV65175, HDX400-10140, HDX400-10144, HDX40010140, HDX40010144, HDX40020212, HDX40020234, HE40010100, HE40010140, HSA-5041, HSA-5042, HSA5041, HSA5042, HX400-10140, HX400-10144, HX400-20212, HX40010140, HX40010144, HX40020212, HZ2314C, HZ40010140, HZ40910405, IKN44051, IKN44071, K020316, K041877, K041877BXW, K37432, K3747, K3749, KEAS1001, KEAS1041, KH600028, KHAS1001, KHAS1041, KHAS1141, KN44051, KN44071, KN52210, KN52211, KN52212, KN52213, KN52214, KN52310, KSA051, KSA061, KSA10140, KSA10144, L-1308, L-196, LEL1308, LTL1308, M-636, M16WR1332, M28SJOO572, M3373, M65175, M807016, M807024, M808013, MB22103, MB22104, MB22183, MB22184, MB22953, MB40010140, MB42106, MB42186, MB72106, MBI40010140, MBI40010144, MBI40020212, MBKN44051, MBKN44071, MD40010100, MD40010140, MDCS56004, MDKN44051, MDKN44071, MERR801074, MERR803054, MI40010100, MI40010140, MI44051, MICS52321, MICS56004, MICS56041, MID40010140, MID40010144, MID40020212, MID40020234, MIDKN44051, MIKN44051, MIKN44071, MIN21138A, MK22016S, MK22103S, MK22103SG, MK22106S, MK42016S, MK42106S, MK42106SH, MK72106S, MSAS1001, MSE6925B, MSKN44051, MSRBR822003, N065175, N21138A, N42AS, OTR OTR10140, OTR-10140, OTR-44051, OTR-51141, OTR-65175, OTR10140, OTR10144, OTR44051, OTR65175, P0065175, P0065176, P0103345, P065175, P065176, P103345, P286965, PL-10140, PL-10144, PL10140, PL10144, PM638, PPAS1041, PROSA56140, PROSA56144, QC44071, QS44051, R21023012, R21097004, R2R822003, R801069, R801071, R801074, R801075, R801077, R801078, R801086, R801087, R802182, R802183, R802400, R802401, R802402, R802403, R802410, R802411, R802412, R802413, R802414, R802416, R802417, R802480, R802481, R802482, R802483, R802486, R802486-RI, R802486RI, R802487, R802487-RI, R802487RI, R802488, R802489, R802490, R802491, R802492, R802493, R803019, R803040, R803041, R803042, R803043, R803054, R803055, R803112, R806016, R806024, R822003, R824003, RB-10140, RB-10144, RB10140, RB10144, RBA13275Y649, RBR801074, RBR802486, RBR802487, RBR822003, RBR824003, RDR801074, RDR824003, RKR822003, ROR801074, ROR802487, ROR824003, RSR801074, RSR822003, RSR824003, RWR802486, RWR802487, S-23849, S-23853, S-9643, S065175, S065176, S2011A, S23849, S23853, S9643, SA00205, SA00206, SA02201, SA02205, SA02502, SA03602, SA04202, SA04203, SA04801, SA07001, SA07003, SA07101, SA07103, SA08101, SA08103, SA08401, SA10100, SA10144, SA10201, SA10203, SA10501, SA10503, SA10801, SA10803, SA11101, SA11303, SA1141, SA11903, SA2175, SA2179, SA56140, SAB40010140, SAP10140, SAS1016, SAS1018, SAS1039, SAS1053, SAS1055, SAS1057, SAS1058, SAS1062, SAS1139, SAS1141, SAS1173, SB889, SBRMK42106S, SE889, SI44051, SIA7085, SIE2458BK, SIFP2458, SIFP2458BK, SIRSA2175, SIS2011A, SLACK56, SOP-1296-AS1173, SOP1296AS1173, SP10355BULK, SQS2011A, STEMK42106S, STNMK42106S, TDAR802486, TDAR802487, TDAR803054, TDAR803055, TWDR802486, TWDR802487, WA10140, WA10144, ZBRAS1039, ZBRAS1139, ZBRAS1141, ZBRAS1173, ZSA40010140, ZSA40010144, ZY40010140, ZZ40010140, ZZ40010144, ZZ40010212, ZZ40010305, ZZ40020212, ZZ40020234
