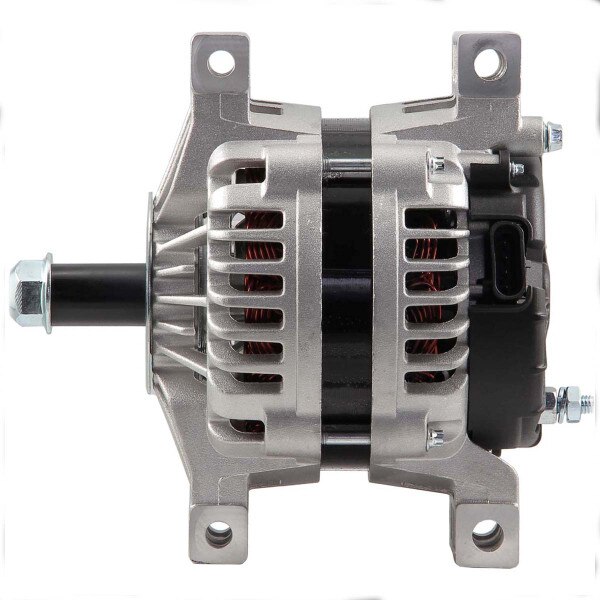

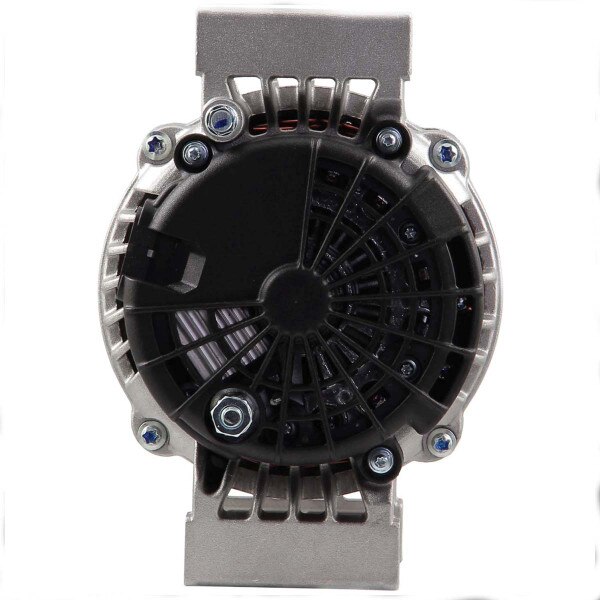

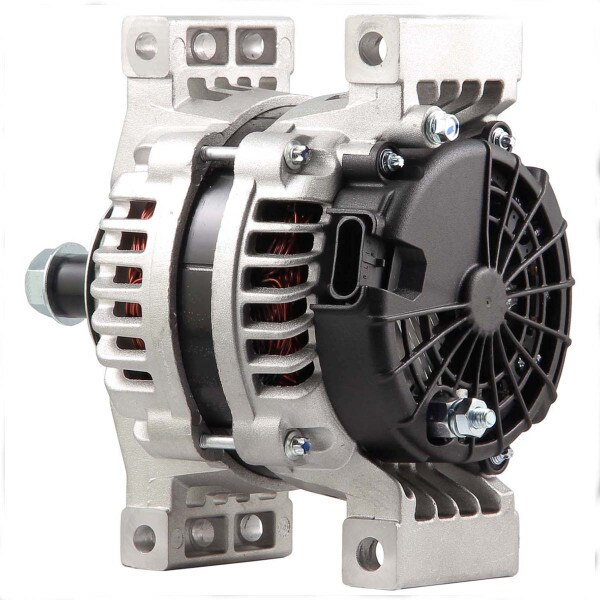

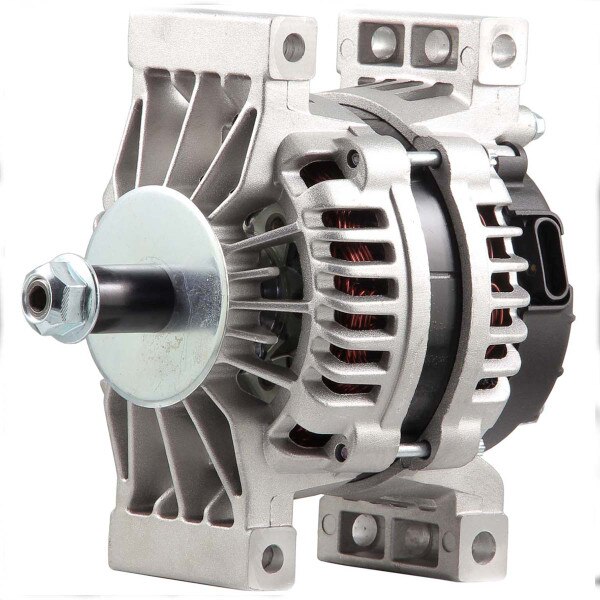

Match Made Alternator 28SI Brush 12V IR/IF Pad - APL-101785
Details
Product Description
You may think your battery is going bad; but it could be your alternator. Flickering lights; odd noises and cars stalling are just some of the signs of a failing alternator. If you are experiencing any of these symptoms, it may be time for a replacement.
This 28SI brush style replacement alternator is fit for American LaFrance, Freightliner, IC Corp, International HD Truck and Peterbilt vehicles. It contains a 12V 160 amp battery and an internal regulator - internal fan (IR/IF). Additionally, the negative ground alternator offers the benefits of "remote sense" - a second wire that reads the actual battery voltage and signals the alternator to increase voltage while reducing battery charge time in half. Inside, it has a 5/16 B+ output terminal. This alternator has pad mounting in configuration.
This Match Made part comes with a two-year warranty.
Match Made is an industry leader in quality aftermarket replacement parts for heavy-duty vehicles. Shop Match Made for reliable truck parts that are easy to install and affordable!
Features
- 28SI model replacement
- Brush style
- Fit for American LaFrance, Freightliner, IC Corp, International HD Truck and Peterbilt vehicles
- 12V 160 amp
- Internal regulator - internal fan (IR/IF)
- Benefits of "remote sense" to reduce battery charge time in half
- 5/16 B+ output terminal
- Pad mounting
Includes
One alternator
Warranty
two-year
Cross Reference
08700018, 1-2562-00DR, 1-2570-00DR, 10121-8380, 101211-8380, 101211-8390, 1012118380, 1012118390, 10459206, 10459278, 10459279, 10459284, 10459285, 10459288, 10459289, 10459328, 10459449, 10459608, 10459611, 10459614, 10459632, 10461226, 10461234, 10911177, 110-555P, 110-555PHO, 110-573P, 110-810, 110-811, 110-812, 110-813, 110-814, 110-815, 110-816, 110-910, 110-911, 110-912, 110555PHO, 110555PHO-AUT, 1256200DR, 1257000DR, 19011167, 19011176, 19011177, 19011187, 19011202, 19011215, 19011216, 19011252, 19011253, 19011258, 19011262, 19011267, 19011268, 19011272, 19011273, 19020889, 19020900, 211-9200, 211-9210, 21248989, 2132-8600127, 2132-8600201, 2132-8700008, 2132-8700018, 2132-8700047, 2132-8700067, 21328600127, 21328700008, 21328700018, 21328700047, 21328700067, 22209658, 240-4070, 2404070, 2MJ522M, 30007VL, 321-741, 321-758, 321-763, 321-764, 321-842, 35135NP, 3667912C91, 4085411C91, 4101602, 4110027, 42033486, 487005, 487010, 4951PARM, 5034-110555PHO, 8300008RMAN, 85110753, 8600015, 8600043, 8600060, 8600066, 8600073, 8600082, 8600127, 8600143, 8600145, 8600168, 8600171, 8600201, 8600202, 8600203, 8600203DEL, 8600231, 8600244, 8600247, 8600248, 8600251, 8600252, 8600315, 8600367, 8600404, 8600405, 8600415, 8600422, 8600488, 8600519, 8600524, 8600645, 8600771, 8600772, 8600773, 8600889, 8609N, 8614N, 8700001, 8700002, 8700003, 8700004, 8700007, 8700008, 8700008RMAN, 8700013, 8700017, 8700018, 8700018-DR, 8700018DR, 8700018RMAN, 8700030, 8700039, 8700040, 8700047, 87000478700067, 8700047RMAN, 8700054, 8700067, 8700067RMAN, 8700080, 8707N, 88863465, 90-01-4328, 90-01-4329, 90-01-4450, 90-01-4513, 90-01-4513N, 90-01-4516, 90014328, 90014329, 90014450, 90014513, 90014513N, 90014516, 914516, A-1703, A-1709, A-1721, A004TU1771, A160210, A1703, A1709, A1721, A9-035-0140PM, A9-036-0170PM, A9-036-0170QM, A90350140PM, A90360170PM, A90360170QM, AL9920LL, AL9961LH, AL9962SB, ALT-0061, ALT-1003, ALT-1240, ALT-3600, ALT-3650, ALT0061, ALT1003, ALT1240, ALT3600, ALT3650, ALT8609, ALT8614, AM1771, APL-101781, APL-101787, APL-101788, AR-35-014P, AVi555P, BE3412135P, BLD2305, BLD2306, BLD2309, BLD2310, BLD2311, BLD2312, BLP2131GH, BLP2303, BLP2304, BLP2309, BOCAL9962SB, BULK110-555PHO, D27-1009-0160P, D27-1015, D27-6001-0130P, D27-6001-1030P, D271015, D2760010130P, DR 8600127, DR 8600201, DR 8700018, DR 8700047, DR-8600127, DR-8600247, DR-8700018, DR/8600201, DR8600066, DR8600127, DR8600201, DR8600201 068, DR8600201 441, DR8600201 746, DR8600203, DR8600248, DR8700008, DR8700018, DR8700047, DR8700067, DRA19020900, DRA8600066, DRA8600127, DRA8600201, DRA8600203, DRA8700008, DRA8700018, DRA8700047, DRA8700067, FLT1003500, FLT1003640, FLT1003650, FLTAL35140P, JA004AU1771, LBP2189RM, LN 110-555PHO, LN4951PARM, LNLBP2189RM, MIBAM1771, MITAM1771, OTR350140PMR, OTR360170PMR, PP3412135P, R8700018, RE035P, RE036PS, RF99081568, RWA8614D, RX8700018, TLA4513N, TWD8700018, UPT8600066, WA2412145PN, ZD10459288, ZLN110555PHO
Specifications
| Engine Application | 11423 |
| Model | 11424 |
| Brand | Match Made |
| Polarity | Negative/Ground |
| Voltage | 12V |
| MPN | APL-101785 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Type / Style | Brush style |
| Benefits | This 12V-160 Amp 28SI replacement, is an internally regulated pad mount heavy duty brush-type alternator. It is designed for American LaFrance, Freightliner, IC Corp, International HD Truck and Peterbilt vehicles. This Match Made alternator has a dual internal fan design engineered to circulate more air flow for maximum cooling and is equipped with remote sense, used to elevate system voltage to overcome cable voltage loss and regulate voltage at the point of termination. It contains 5/16 B+ output terminal. |
