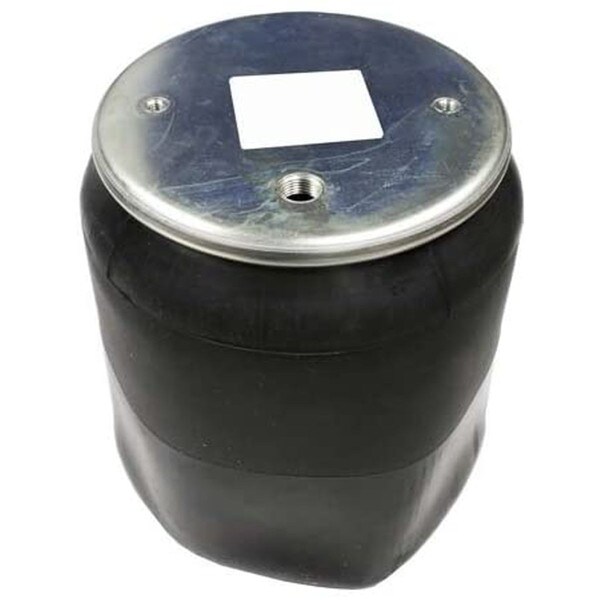

Match Made 8864 / 1R121097 - Rolling Lobe Air Spring
Details
Whether you need replacement parts for your engine or undercarriage, Match Made has what you need to get your big rig running at peak performance.
This parallel rolling lobe air spring features two bottom plate holes and a bottom plate center to center diameter measurement of 2.25 inches plus a bottom plate diameter measurement of 7.88 inches. Its design height measures 16 inches with a load rating at 100 PSI - 7070 pounds and a load rating at 80 PSI - 5640 pounds. Its maximum diameter measures 12.6 inches and maximum height measures 25.2 inches. With two top plates, its top plate center to center diameter measures 6.2 inches and its top plate diameter measures 9 inches. Natural frequency: 65.
Match Made offers extended warranties based on product type. Contact us to learn more!
Match Made is a leading supplier of aftermarket truck parts for all types of heavy-duty applications and commercial vehicles. When in need of replacement parts, turn to Match Made!
Cross References
8864, 1R121097, 018864, 03-07887, 03-08716, 0307887, 0308716, 10-19, 1418009, 1R12-1097, 1R121097, 3040-W013588864, 3040W013588864, 352-8864, 66666, 8864, 8865, 8898, 9019P898, 91019P898, AB1DK10A-8997, AB1DK10D-8997, AB1DK23L-8864, ABPN32018864, AS-8864, AS-8898, AS8864, AS88640, AS8898, C81-1011, C81-1013, C811011, C811013, E-FS8864, FIPW013588864, FIW013588864, FS8864, FS8865, FSIW013588864, G2298864200, GYR1R121097, MAF8864, REAW013588864, TR8864, TWDW013588864, W01-358-8864, W01-687-5468, W01-687-5470, W013588864, W016875468, W016875470, WA01-8864C, WA018864C
Specifications
| Brand | Match Made |
| MPN | APL-102359 |
| Width | 10.13 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 12.25 in. |
| Benefits | This parallel rolling lobe air spring features two bottom plate holes and a bottom plate center to center diameter measurement of 2.25 inches plus a bottom plate diameter measurement of 7.88 inches. Its design height measures 16 inches with a load rating at 100 PSI - 7070 pounds and a load rating at 80 PSI - 5640 pounds. Its maximum diameter measures 12.6 inches and maximum height measures 25.2 inches. With two top plates, its top plate center to center diameter measures 6.2 inches and its top plate diameter measures 9 inches. Natural frequency: 65. |
Features
- Designed for heavy-duty applications/commercial vehicles
- Meets original specs for fit and form
- Reliable truck part made from quality materials
Includes
Air spring
Warranty
Warranty varies by product. Contact us to learn more.
