Firestone Air Spring, S14249, 1T15M-11 - W01-358-9367 - W013589367

*THIS PART IS NON-RETURNABLE*

Product Description

Firestone air helper springs, also known as air bags, are used to help keep commercial vehicles from squatting under heavy load. In turn, commercial drivers will experience a more stable, safe and comfortable ride. When in need of replacement air springs for your air suspension system, shop Firestone!

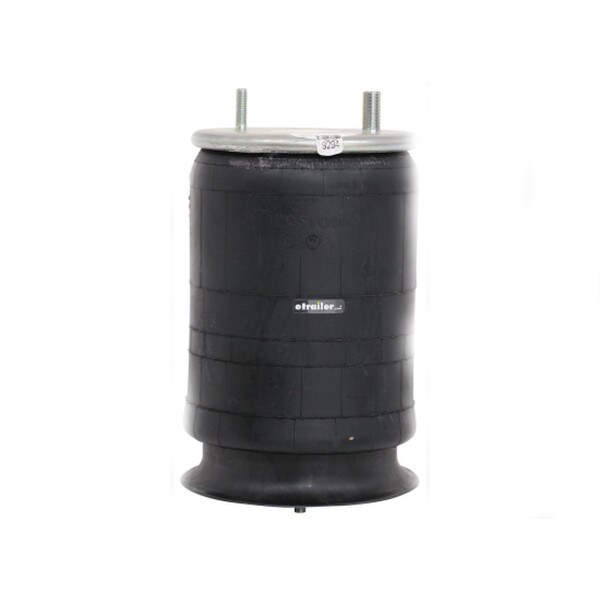

This air spring (air bag) from Firestone Industries is made for Hendrickson S14249. This reversible sleeve air spring from Firestone contains an extended height measurement of 27.6 inches and a compressed height measurement of 6.2 inches. Its top plate number is 3188 and top plate width measures 9 inches. Piston number is 9653 and piston width measures 10.25 inches. Firestone bellows number 1T15M-11.

This product comes with a limited lifetime warranty.

For over 80 years, Firestone Industries Products (Firestone) has continued to impress customers with cutting-edge air spring manufacturing and technology. Firestone air springs are built to last for all types of heavy-duty commercial vehicles including trucks and trailers; light trucks; mini vans, motorhomes and buses. When in need of replacement air springs (air bags) for heavy-duty applications, look no further than Firestone!

Features

• Extended height measurement of 27.6 inches
• Compressed height measurement of 6.2 inches
• Top plate number is 3188
• Top plate width measures 9 inches
• Piston number is 9653
• Piston width measures 10.25 inches
• Firestone bellows number 1T15M-11

Includes

Airide air spring

Warranty

Limited lifetime.

Cross Reference

1R12-283, 6373, 8505, S-14249., S-4375

Specifications
