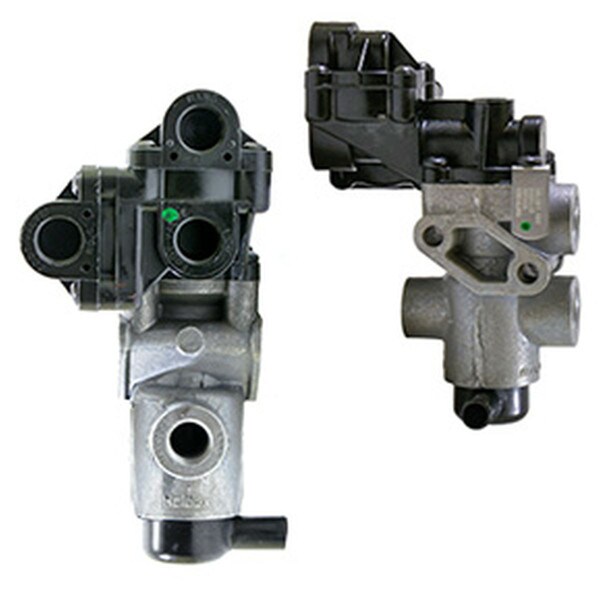

Haldex Tractor Protection Valve - KN34110

SKU KN34110
$176.45
(0)No Reviews yet

In-stock ships today if ordered by 3pm CST

Currently Available: 2

Details

Product Description

When it comes to your air and brake systems, not just any parts will do. Trust Haldex brake solutions for enhanced safety, environment, and vehicle dynamics. Haldex Tractor Protection Valve - KN34110 features Emergency Inlet of 3/8 in. and Foot Controls are 2@3/8 in. The Hand Control is 3/8 in. with a Stop Light Switch of 1@1/4 in. The Trailer Service Outlet is 1/2 in. and Trailer Emergency Outlet is 1/2 in. It features an exhaust tube, Manifold style, and can replace up to four valves on competitive systems. The Approximate Weight is 1.5 lbs. It includes tractor protection, two double check valves, stoplight switch port, and built-in quick release, all in one valve.


Products are warrantied to be free from defects under warranty terms and conditions. Specific warranties vary slightly from products installed on new vehicles to replacement parts installed at a later date.


Haldex is a Sweden-based company that operates worldwide in 19 countries. Haldex develops and produces reliable and innovative solutions that improve safety, vehicle dynamics and environmental sustainability in the global commercial vehicle industry. They are one of the world-leading suppliers of brake and suspension solutions, and are developing new technology for electrical and autonomous vehicles. From air compressors and air dryers to valves and hose clamps, Haldex has everything you need to keep your brake and suspension systems at peak performance all year long. Invest in the best with Haldex.


Features

  • Emergency Inlet: 3/8 in.
  • Foot Control: 2@3/8 in.
  • Hand Control: 3/8 in.
  • Stop Light Switch: 1@1/4 in.
  • Trailer Service Outlet: 1/2 in.
  • Trailer Emergency Outlet: 1/2 in.
  • Exhaust tube
  • Manifold Style.
  • Can replace up to four valves on competitive systems.
  • Approximate Weight 1.5 lbs

Notes

  1. Repair Kit use part number RN31BC.
  2. Includes tractor protection, two double check valves, stoplight switch port, and built-in quick release, all in one valve.

Includes

Tractor protection, two double check valves, stoplight switch port, and built-in quick release, all in one valve


Warranty

Products are warrantied to be free from defects under warranty terms and conditions. Specific warranties vary slightly from products installed on new vehicles to replacement parts installed at a later date.


Cross Reference

170KN34110, 2585506C91, 34110, 3509708, 3893927, 503139C91, 6814290944, 767653011509, 8074524, 8235-RKN34110, 9348990030, 9348990090, 9348990100, 990689C91, BBH-KN34110, BBHKN34110, BGIKN34110, BGKN34090, BGKN34110, D0HA2B200C, EM36850, EMDKN34090X, HALKN34110, HBKN34110, HDXKN34110, IKN34110, KN34090, KN34090N, KN34090X, KN34103, KN34110X, KN34111, MBIKN34110, MBKN34090, MBKN34110, MDKN34110, MIDKN34110, MIKN34090, MIKN34090X, MIKN34110X, MKN34110, N30162AA, N30162CA, N30162EA, N30162GA, N30162KA, N30162MA, N30162ME, N30162PA, N30162PB, NA30162AA, RKN34110, RKN34110X, RN30162PA, S-11452, S11452, S9348990030, S9348990090, TDARKN34110, TV34110, TV34110TEC, WABRKN34110, ZZKN34090X, ZZKN34110, ZZKN34110X


Specifications

Control Port2@3/8 in.
BrandHaldex
MPNKN34110
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
BenefitsEmergency Inlet is 3/8 in. and Foot Controls are 2@3/8 in. The Hand Control is 3/8 in. with a Stop Light Switch of 1@1/4 in. The Trailer Service Outlet is 1/2 in. and Trailer Emergency Outlet is 1/2 in. Exhaust tube, Manifold style, and can replace up to four valves on competitive systems. Approximate Weight is 1.5 lbs. For repair kit, use part number RN31BC. Includes tractor protection, two double check valves, stoplight switch port, and built-in quick release, all in one valve.
