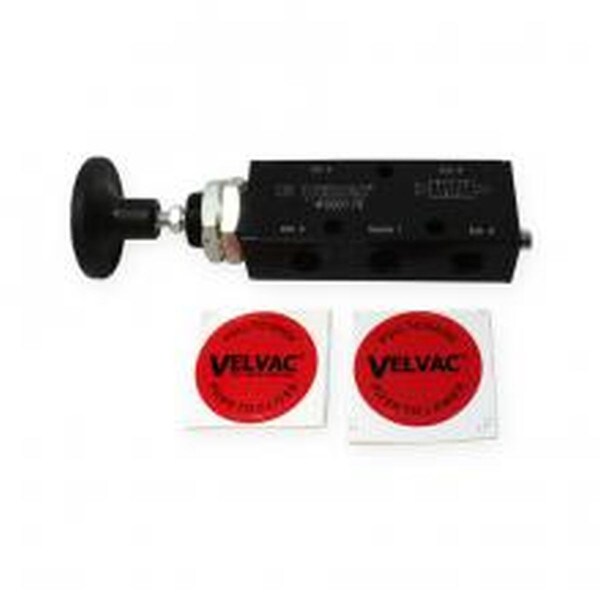

Velvac 4-Way Push/Pull Valve - 320-175 - 320175

Product Description

When it comes to your truck's heating and cooling system, every component counts, and with Velvac, you can trust your components to perform mile after mile in any driving situation. Nitrile seals have a long cycle life with high impact knobs and balanced spool design. Operating temperature range is from -40 degrees F to +180 degrees F. Stainless steel hardware with an aluminum shaft with delrin detent ring provides easy identification of valve position. Threaded aluminum mounting boss for 1 in. diameter through hole mounting (nuts included). Also features (3) 9/32 in. diameter body mounting holes and (5) 1/4 in. - 18 FPT ports. The normal operating pressure is 100 psi. This valve includes two faceplates: Pull to Open/Push to ClosePull to Raise/Push to Lower.

The warranty on this part is twelve (12) months from the date of sale to end-user or twenty-four (24) months from date of manufacture, which ever comes first. Some exceptions may apply depending on product or vocation specifications.

Your partner in the passing lane since 1934, Velvac Inc. first began as the Vacuum Power Equipment Company, specializing in air brake and valve components. The name was shortened to Velvac in 1940, after the company's best-selling Velvet Vacuum brakes brand. Velvac began producing West Coast mirrors in the 1950's, becoming an OEM supplier in 1956. The company continues to lead the way for vision systems in the North American commercial vehicle market and now has over 4,500 vehicle components in their product line.

Features

• Nitrile seals for long cycle life.
• High impact knobs.
• Balanced spool design.
• Operating temperature range from -40 degrees F to +180 degrees F.
• Stainless steel hardware.
• Aluminum shaft with delrin detent ring provides easy identification of valve position.
• Threaded aluminum mounting boss for 1 in. diameter through hole mounting (nuts included).
• (3) 9/32 in. diameter body mounting holes.
• (5) 1/4 in. - 18 FPT ports.
• Normal operating pressure 100 psi.
• Includes two faceplates: Pull to Open/Push to ClosePull to Raise/Push to Lower.

Includes

One (1) two-position push/pull valve with two (2) face plates - Pull to Open/Push to ClosePull to Raise/Push to Lower

Cross Reference

320175, 320175VEL, VEL320175
