E-6 Style Foot Valve - ACA-01774700 - WA286171

Product Description

Reverse flow and "water hammering" are just a few warning signs of failing check valves. If you are experiencing these symptoms, consider buying replacement brake valve parts from Match Made for your heavy-duty truck.

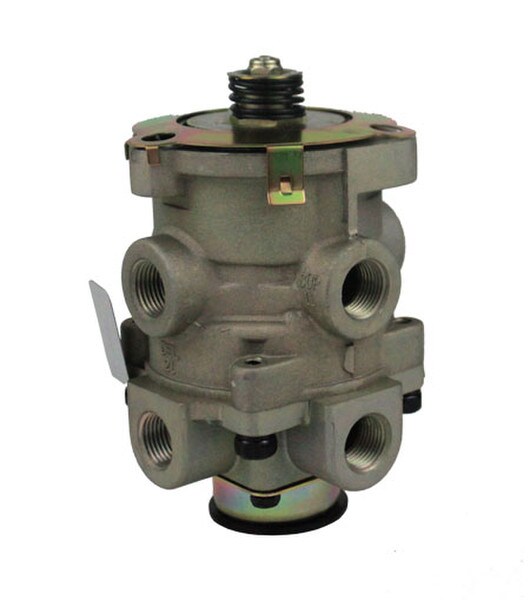

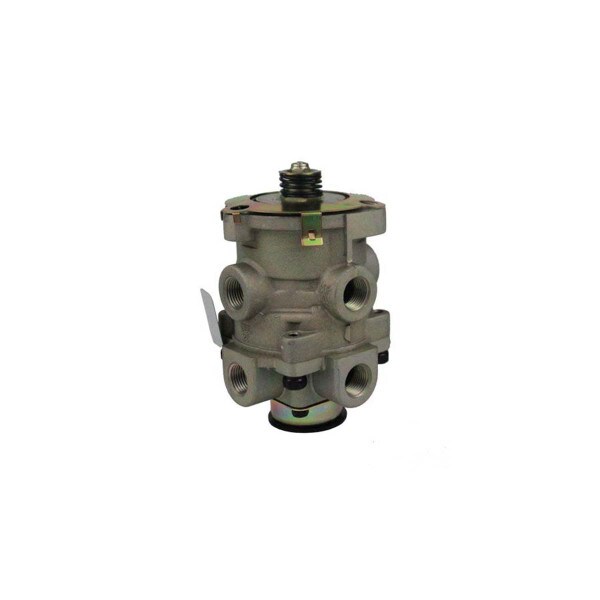

This Match Made E-6 style foot valve can be floor mounted or used on treadle or for lever operation. Dual circuit brake valves utilize two different supply and delivery circuits for service and secondary braking. The number one or primary circuit portion is functioning through the action of the treadle/pedal and plunger. The secondary circuit normally performs similar to a relay valve, with control air delivered from the number one primary circuit. In the emergency mode (failure of the primary supply), the secondary inlet valve is opened by a push through mechanical force from the foot of the drivers via the treadle/pedal, plunger and primary piston. This foot valve meets FMVSS-121 requirements and features two separate supply and delivery circuits for service and secondary braking measuring 3/8 inch NPT port. Exhaust at bottom with rubber spring.

This Match Made truck part comes with a one year warranty.

Brake parts in semi-trucks and other heavy-duty vehicles should be maintained every 50,000 miles. When in need of a replacement brake valve for your commercial vehicle, choose to shop Match Made Parts!

Features

• Meets FMVSS-121 requirements
• Features two separate supply and delivery circuits
• 3/8 inch NPT port
• Exhaust at bottom
• Rubber spring

Includes

E-6 style foot valve

Warranty

1 Year

Cross Reference

011219503, 018050, 040138-102, 040138-123, 040138-129, 040138-133, 040138-136, 0R286171BXR, 1-2467Q, 10.5C-16, 1000-AS8050, 1000AS8050, 101-100, 101-107, 101100, 101107, 101312, 101560, 101825, 102746, 102944, 104264, 104349, 104724, 104969, 107872, 107921, 107921X, 109115, 109732, 11105C16A320, 11219503, 112195034, 1140918, 118321C1, 12-0618A, 12-2012A, 12-2013A, 12-2612A, 120618A, 122012, 122012A, 122013A, 122612, 122612A, 123319, 12467Q, 12514013, 1280331C1, 1296584, 133188, 14-00301-03, 140030103, 15-50269, 15-5490, 15-5793, 15-5805, 15318, 15444, 155793, 1576011, 1602G, 164937, 1685174C1, 170.286171, 1710304111, 1710304121, 17359, 17380024, 176186, 176282, 1805701, 182263, 182271, 1899004, 18990041899035, 1899028, 1899035, 194302, 1DK28A-8050, 1DK28A8050, 1R14-039, 1R14-055, 1R14-083, 1R14-241, 1R14-244, 1R14039, 1R14055, 1R14083, 1R14241, 1R14244, 20-210019, 2004632, 201680, 201680S6002, 20210019, 2045-888, 20QE3397, 21-0019, 210-035, 210019, 210035, 2160074, 22-00102, 22606, 22622, 232-8556, 232-8562, 23631-01, 2363101, 2440430C91, 2590011306720, 260389, 284238M1, 28459300, 286171, 286171B1, 286171BXR, 286171BXW, 286171N, 286171R, 286171RX, 286171X, 286516, 287017, 287068, 287255, 287289, 287290, 287687, 287771, 287773, 287782, 288246, 288274, 288322, 288424, 289128, 289380, 289380X, 29577, 300032, 3040-W013588050, 3040W013588050, 3081405, 31-30901, 31-30901-AM, 31-30901-P-AM, 31-30927-AM, 3130498, 3130901PAM, 3130927AM, 329-005, 329-054, 329-413, 329005, 329054, 329403, 329413, 3507334, 352-8050, 3528050, 352831, 354180, 36514-13, 3651413, 3805001K, 3902334M91, 3911657, 3916181, 3916182, 3916657, 3918342, 39461, 39462, 3949397, 3949881, 3V258, 40138102, 40138123, 40138129, 40138133, 40138136, 404098, 404255, 41244, 41280, 4300-57104, 430057104, 431606R1, 4322165, 4322165-4, 4379-RD4157-0, 4379-RD41570, 4379-RD5-5382-0, 4379-RD5-6868-0, 4379-RD5-7015-1, 4379-RD5-70151, 4379-RD553820, 4379-RD568680, 4379-RD568680P, 4379-RD568681, 4379-RD568681P, 4379-RD570150, 4379-RD595130, 4379-RD595130P, 4379-RD70150, 4379RD41570, 4379RD553820, 4379RD568680, 4379RD570150, 4379RD570151, 4379RD70150, 44395, 450-6500, 450-6501, 4506501, 4528050L, 452950C92, 4820010340970, 49043038, 49044353, 4R153, 4V2786, 5001123, 5002381, 5004536, 5004537, 5004538, 5004539, 5004540, 5004541, 5004593, 5005521, 5005578, 5006808, 5007861, 5008M5, 5009605, 5010095, 5010096, 5010097, 5012181, 5012182, 5013136, 5013137, 5013706, 5013842, 5013881, 5014520, 5015998, 5015999, 5016000, 5016974, 51227503, 520-1005, 5300466000, 540031, 540031BSM, 541227503, 550161, 552494, 57008050, 58294P, 58590P, 58846, 5948304, 60012-4401, 600125001, 600125011, 602033, 61-3413, 61130396, 61130403, 61170227, 6305702, 63509, 63942, 64254, 65087, 653512-01, 65351201, 654533, 6709411, 68857, 6W7075, 71307202-3, 719450, 71R8301, 71R8320, 71R8321, 71R8380, 71R8469, 720020001, 73567, 73894, 745-286171, 745-286171N, 745-OR286171X, 745-X286171, 745286171, 745286171N, 745286171X, 745OR286171X, 745X286171, 774162, 774165, 7787-540021, 7787540021, 78113414, 7979-404098, 7979404098, 79840, 8008815, 801267, 801268, 801711, 801750, 802339, 802397, 802547, 8160002765, 842830000, 86480519, 8778050, 888050, 8W5651, 8W8507, 90001264, 903705, 9044353, 904617, 936749, 97005763, 9934600164, A12-17486-000, A1211502KK, A1217486000, A1219503AA, A22-18591-000, A22-45432-000, A2218591000, A2245432000, AA1102013, AB1DK28A8050, ABP N83 308011, ABP N83 308024, ABP N83 308031, ABP N83 308041, ABP N83 308051, ABP N83 308071, ABP N83 308097, ABP N83 308101, ABP N83 308181, ABPN32018050, ABPN83308011, ABPN83308031, ABPN83308041, ABPN83308051, ABPN83308071, ABPN83308097, ABPN83308101, ABPN83308181, AC-101-107, AC101-100, AC101-107, AC101107, ACA01774700, AE774162, AE774165, AFR186A926, AS PR11LN16 8050, AS RC11LN16 8050, AS-0039, AS0039, AS8050, AS80500, AS91210, ASPR11LN168050, ASRC11LN168050, AT197504, AV286171, B-12514-013, B-4771, B12514-013, B12514013, B4771, BAN286171N, BBH-RB286171, BBHRB286171, BEN286171, BEN286171N, BF1392, BND286171N, BSM308011, BW 286171N, BW286171, BW286171N, BX286171, BX286171B1, BX286171N, BY300237A, C0294, C286171, C80Z-19849-A, C80Z19849A, C8OZ-19849A, C8OZ19849A, CLIEA1066, CT64254, CTH 64254 8058, CTH642548058, CTT64254, D2953-5350, D29535350, E1HZ-19849A, E1HZ19849A, E1NN-19849A, E1R14039, EA10600, EA1065, EA10650, EA1075, EA10950, EA1210, EA12100, EA12550, EA1315, EA1365, EBN286171N, EFS8050, EIE1R14039, EIEFS8050, EX 9403, EX 9404C, EX9403, EXOR286171X, FIR8050, FIRW01-358-8050, FIRW013588050, FIW013588050, FLT1R14039, FLTA1R14039, FS8050, FSIW013588050, G2298050400, G9010571, GBH1R14039, GTK-358-8050, GTK3588050, GYR1R14039, HDV-HDV8050, HDV8050, HENS-4771, HENS4771, HTSS4771, K034500, K040516, K095422, K095423, K286171, K295176, KN22140, KN22150, LM6864310305, M3510, M7X0283, MAF8050, MBW004324, MBW286171, MLF7112, N23442, N83 308031, N83 308041, N83 308051, N83 308071, N83 308181, N83308011, N83308031, N83308041, N83308051, N83308071, N83308101, N83308181, OR286171, OR286171BXR, OR286171X, OR5286171, OR5286171X, OTR286171, P0286171, PR11LN16, PTAC1601, PTAC1602, R5286171, R5286171X, R955286171N, RCAS8050, RD 4157-0, RD-5-10179-0P, RD-5-5382-0P, RD-5-6868-0, RD-5-6868-0P, RD-5-6868-1, RD-5-6868-1P, RD-5-7015-0, RD-5-7015-0P, RD-5-7015-1P, RD-5-9513-0, RD-5-9513-0P, RD4157-0, RD41570, RD5-7015-0, RD5-9513-0, RD5101790P, RD553820P, RD568680, RD568680P, RD568681P, RD570150, RD570150P, RD570151P, RD595130P, RDH RD5 6868 0, RDH RD5 9513 0, RDHRD5-6868-0, RDHRD568680, RDHRD568680P, RDHRD568681P, RDHRD595130P, RDT71R8301, RDT71R8380, RE57575, REAW013588050, RHD RD5 6868 0, RKN22150, RL80500, S-4771, S10329-015, S10329015, S19357, S4613320000, S4771, S8050, SC2052, SIO329-412, SIO329-440, SIO329412, SIO329440, STM1R14039, TAS8050, TR8050, TR8320, TRAS8320, TS8320, TWDBEN286171N, TWDW013588050, V1111909, V1118406, V68320, VX8050, W01-358-8050, W01-3588-050, W013588050, W3460164, WA01-8050C, WA018050C, WCAS0039, XRD-5-6868-1P, ZAC286171, ZGG13615, ZGG19058

Specifications
