Dana Spicer Driveshaft Tube Weld Yoke - SPL250 Series - 250-28-17

Details

250-28-17

Cross References

2104-2502817, 21042502817, 250-28-17, 250.28.17, 2502817, 2502817-SP, 2502817SP, D2502817, DS2502817, E2502817, S-18425, S18425, SHP2502817, SP2502817

Specifications

Brand Label:Spicer
Item-Level GTIN:00023913211967
Hazardous Material Code (Y/N):N
EXPI Data (Country of Origin):MX
EXPI Data (Harmonized Tariff Code (HTS)):8708990000
Item Quantity Size UOM:EA

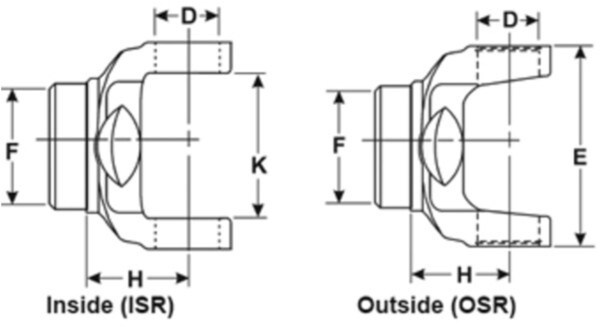

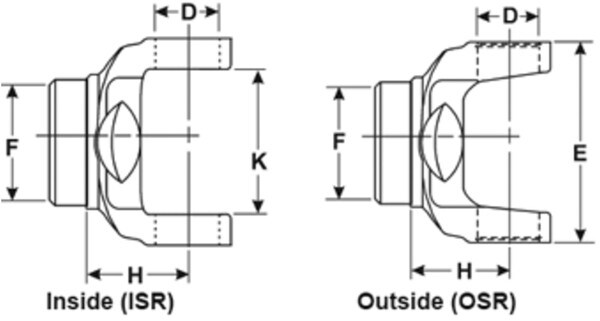

Bearing Cap Diameter (D) In.:2.362
Butt Diameter (F) In.:4.746
C/L To Weld (H) In.:4.094
Design:ST
Fits Tube Diameter (In):5.197
Fits Tube Wall (S=Seam W=Weld):0.236-WELDED
Material:Steel
Outside Yoke Dimension (E) In.:5.986
Prop 65:No
Series:SPL250
Description (Long Product Description):Drive Shaft Tube Weld Yoke
Description (Short Product Description):Tube Weld Yoke
Description (Extended Product Description):Drive Shaft Tube Weld Yoke

Features


  • Dana engineering-approved for fit, form and function
  • Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
  • Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component.
  • Strength and durability for long life.
  • Tested for unparalleled reliability.
