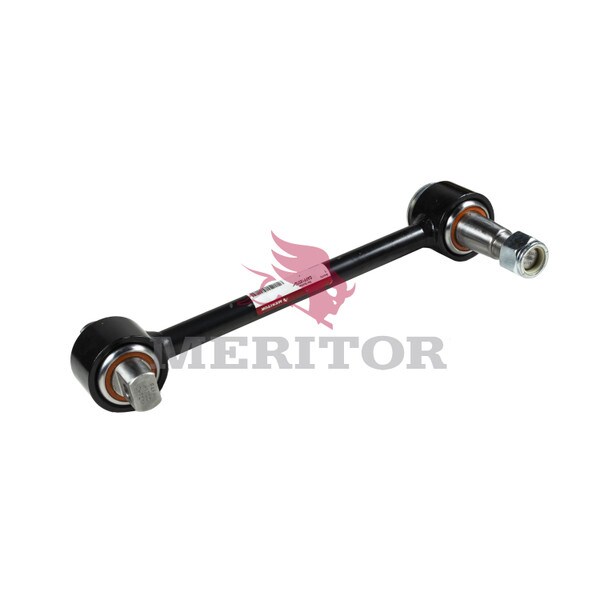

Meritor TORQUE ROD ASSY - GAFF12072

Product Description

TORQUE ROD ASSY

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Application: Mack
• Axle End Bushing: GAFF12031
• Bolt Hole Diameter: 5/8 in.
• Bushing Length: 4 3/8 in.
• Bushing Material: Polyurethane
• Bushing Outside Diameter: 2 3/4 in.
• Bushing Style: 1-Straddle/Bar Pin & 1-Tapered Pin
• Hanger End Bushing: GAFF13520
• OEM Part: 17QF464P180; 1RY48P23; 17QF251P11; 25162529
• Tapered Pin Length: 7 in.
• Tapered Pin Thread: 5/8 18 UNF
• Tapered Pin Thread Length: 1 1/4 12 UNF
• Thread Size: 1 1/4-12 UNF
• Torque Arm Material: Solid Center Bar
• Torque Arm Style: Rigid

Includes

TORQUE ROD ASSY

Warranty

Warranty depends on application and product type. Contact us to learn more.

Cross Reference

TR62-41180, 943763, 345222, S-13292, FTR-42628-100, FTR-4628-180, FTR-4628A-180
