Product Description

Polyurethane is a durable material that is more sustainable; longer-lasting; and less affected by harsh weather elements than rubber. Therefore, when shopping for suspension components, it is recommended to choose parts made from polyurethane.

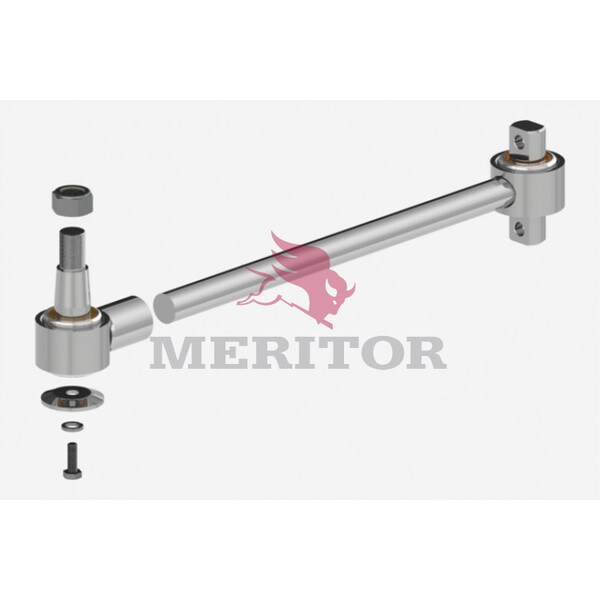

This Torque rod assembly is designed for Mack trucks. It contains a rigid torque arm made from solid center bar with a 1-Straddle/Bar Pin & 1-Tapered Pin bushing made from polyurethane. Its length center to center measurement is 26 inches and it has a bushing length of 4 3/8 inches and a bushing outside diameter of 2 3/4 inches. Its bolt hole diameter measures 5/8 inches and its tapered pin thread length is 1 1/4 12 UNF and tapered pin length is 7 inches. Its axle end bushing is GAFF12031 and its hanger end bushing is GAFF13520.

This product comes with a one year warranty.

For over 35 years, GAFF has been a desirable choice for reliable aftermarket suspension components in heavy-duty vehicles. As of 2021, Meritor is the official distributor for Gaff polyurethane suspension components across the U.S. and Canada - a trusted brand for suspension, power steering, air disc and hydraulic brake parts. When shopping for quality polyurethane suspension parts, choose Gaff from Meritor!

Features

• Application: Mack
• Axle End Bushing: GAFF12031
• Bolt Hole Diameter: 5/8 in.
• Bushing Length: 4 3/8 in.
• Bushing Material: Polyurethane
• Bushing Outside Diameter: 2 3/4 in.
• Bushing Style: 1-Straddle/Bar Pin & 1-Tapered Pin
• Hanger End Bushing: GAFF13520
• Tapered Pin Length: 7 in.
• Tapered Pin Thread: 5/8 18 UNF
• Tapered Pin Thread Length: 1 1/4 12 UNF
• Thread Size: 1 1/4-12 UNF
• Torque Arm Material: Solid Center Bar
• Torque Arm Style: Rigid

Includes

Torque rod assembly

Warranty

One year

Cross Reference

SK27771
