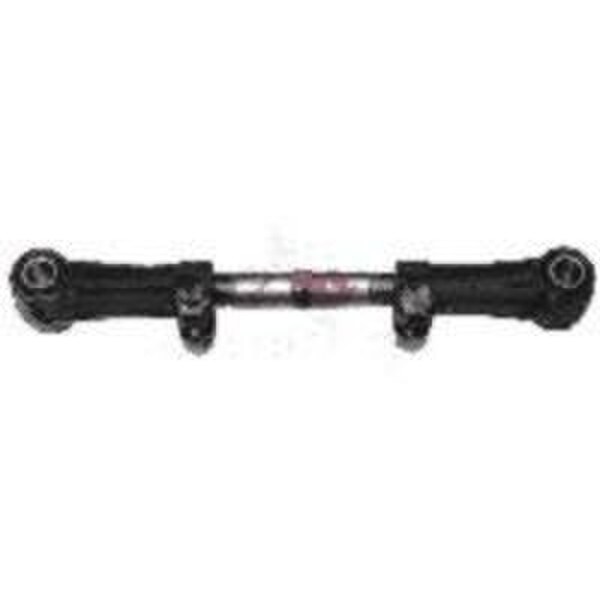

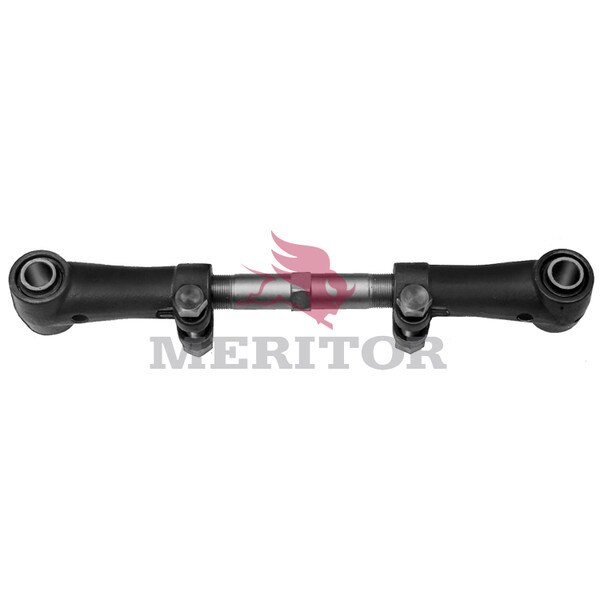

Meritor TORQUE ARM - R302512
Details
Product Description
ADJUSTABLE TORQUE ARM, 14"- 18 1/2" C-TO-C
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor TORQUE ARM - R302512 is the ideal way to make sure you have the replacement part you've been looking for.
Features
- Application: Dana
- Application: Hendrickson
- Application: Dayton
- Bolt Hole Diameter: 7/8 in.
- Bushing Inside Diameter: 7/8 in.
- Bushing Length: 3 in.
- Bushing Material: Rubber
- Bushing Outside Diameter: 1 29/32 in.
- Bushing Style: Hollow
- Length: Center-to-Center: 16 3/8 in.
- OEM Part: Reyco T-3683; T-3036. Spicer M109201. Dayton 39090029 (front). Hendrickson C-1032.
- Related Bushing: R301980
- Related Bushing Kit: R301981
- Torque Arm Material: Cast Ends
- Torque Arm Style: Adjustable
Includes
Meritor TORQUE ARM - R302512
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
Specifications
| Brand | Unassigned |
| MPN | R302512 |
| UPC | 680502004753 |
| Width | 4.625 in. |
| VMRS | 016-008-012 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 3.125 in. |
| Benefits | TORQUE ARM |
