CoolStar TM16 Compressor - 120MM - 340-1414
Details
*THIS PART IS NON-RETURNABLE*
Product Description

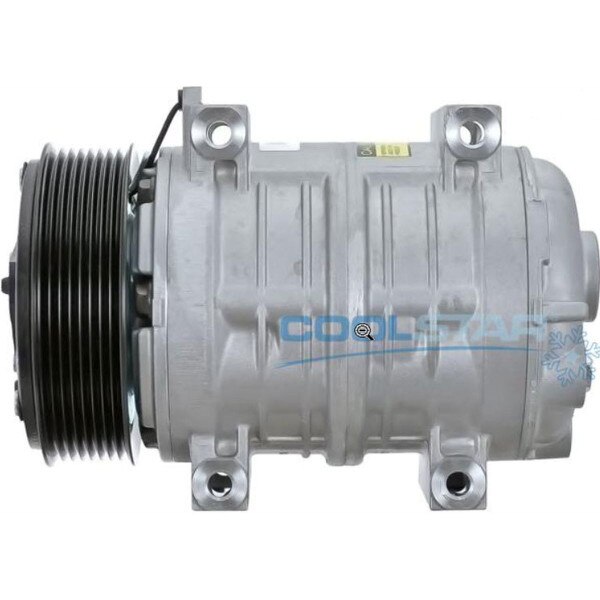

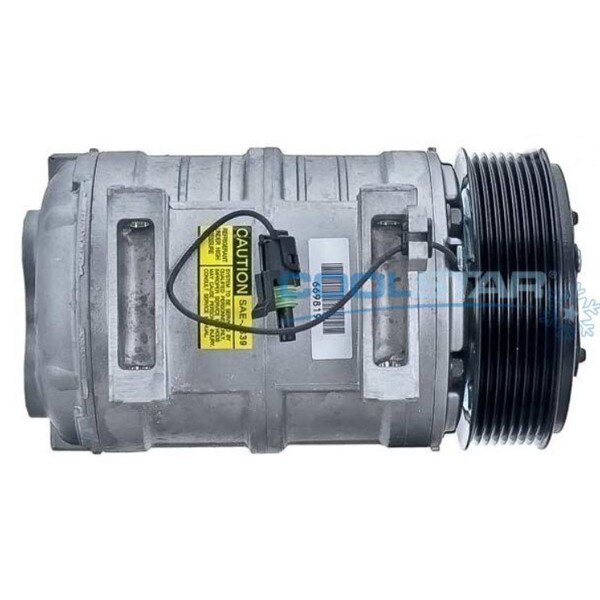

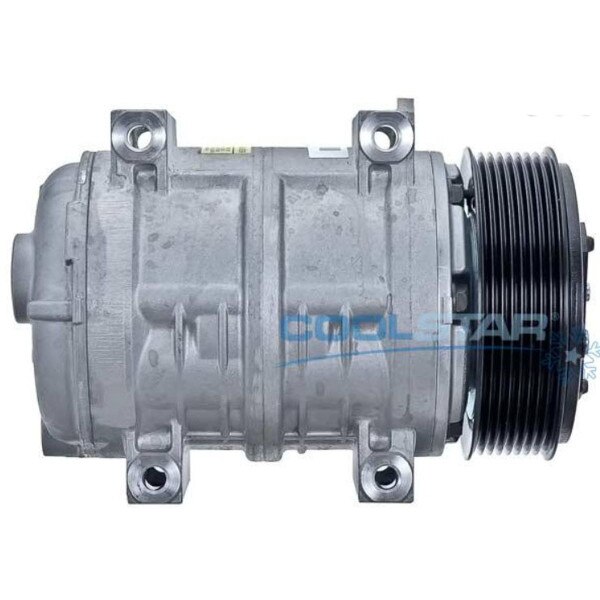

The CoolStar TM16 Compressor - 120MM - 340-1414 was designed to be the ideal replacement part for your semi-truck.
This compressor from the experts at CoolStar has a 12 volt rating, a 4.7 in. clutch diameter, and 8 grooves.
Warranty information may be based on the product and application. Please contact us for additional information.
CoolStar has been a trusted name in the trucking industry for an extremely long time, and the CoolStar TM16 Compressor - 120MM - 340-1414 is the direct result of their dedication to quality.
Features
- Model: TM16HD/HS
- Application: Multi Fit Applications
- Volts: 12V

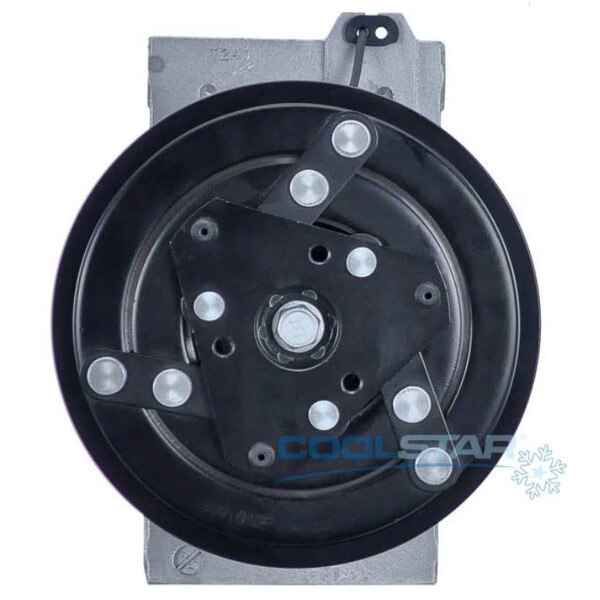

- Clutch Diameter: 4.7''
- No. of Grooves: 8 groove
- Belt Type: Serpentine
- No. Comp. Cylinders: 6 cyl
- Comp. Displacement (ci): 9.7 cu.in.
- Factory Oil Charge: 180cc Oil

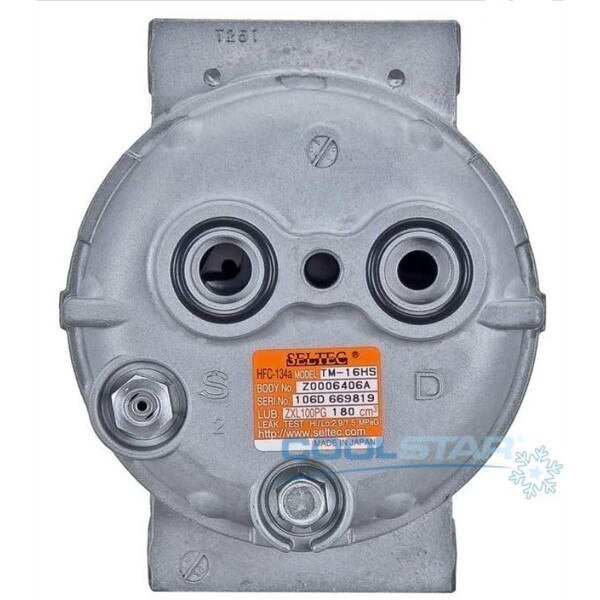

- Fitting Port Position: Horizontal
- Fitting Style: Universal O-ring Pad
- Head Type: G

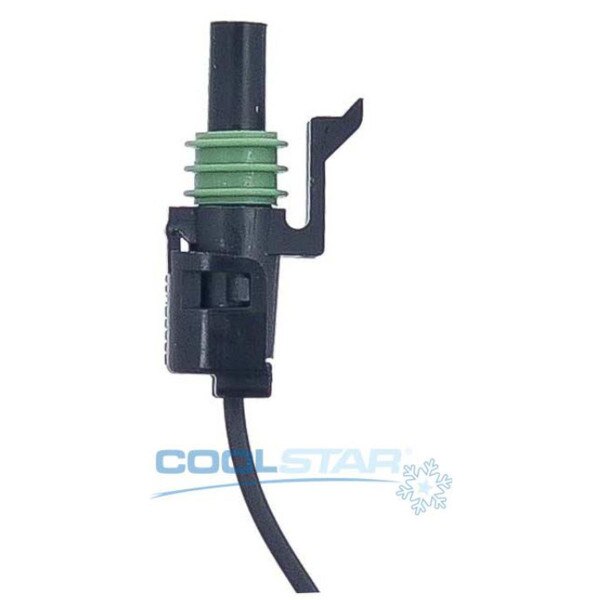

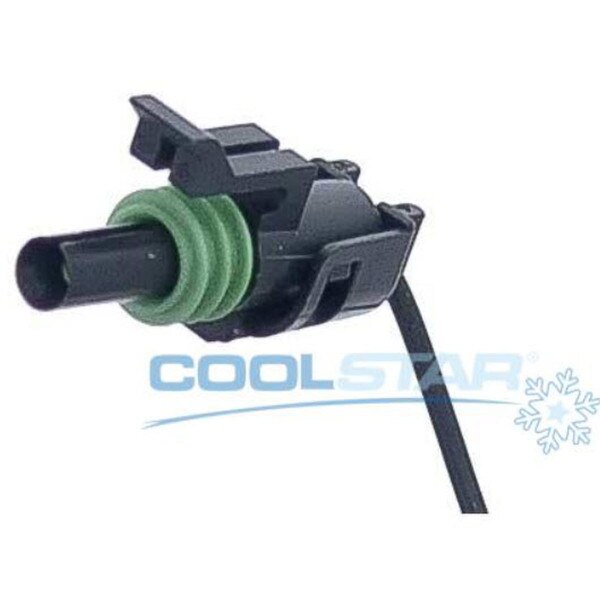

- Wire Type: 1 Wire Weatherpack
- Replacement Clutch Assy.: 5051
- Replacement Head Assy: NSS
- Mounting Type: Direct mount
- Oil Type: PAG46
- Product Name: Compressor
- Refrigerant Type: R134a
- Rotation: CW/CCW
- O-Ring #1: 0117
- Shaft Type: Splined shaft
- Diode Protection: None
Includes
One (1) TM16HD/HS compressor model
Cross Reference
Mei 340-1414 Cross References
5923, 340-1414, 03-3777, 10356403, 103-56403,
Specifications
| Brand | CoolStar |
| MPN | 340-1414 |
| Width | 1 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 1 in. |
| Benefits | This compressor is made with 6 cylinders. |
