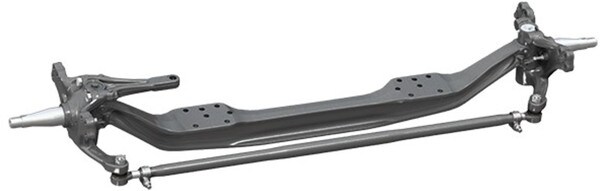

  • Dana Spicer STEER AXLE ASSY - 1322BN104-31

Dana Spicer STEER AXLE ASSY - 1322BN104-31

Details

1322BN104-31

Cross References

Specifications

Brand Label:Spicer
Item-Level GTIN:00023913465810
Hazardous Material Code (Y/N):N
EXPI Data (Country of Origin):MX
Item Quantity Size UOM:EA
Beam Center Drill Depth:0.78
Beam Center Drill Diameter:0.81
Beam Drill Hole Diameter:0.81
Beam Drill Pattern Length:4.81
Beam Drill Pattern Width:4.25
Beam Spring Mount Cntr To Cntr:34
Drop:5
KPI:71
Model:E1322
Prop 65:No
Thread:1.50-18 UNEF-2A THD
Turn Angle LH:30 - 50
Turn Angle RH:30 - 50
Description (Long Product Description):STEER AXLE ASSY
Description (Short Product Description):Steer Axle Assy
Description (Extended Product Description):STEER AXLE ASSY

Features


  • Combine proven durability with flexible options that allow you to optimize stopping distance, performance, and life cycle cost for your application.
  • Kingpin joint sealed thrust bearings with compressible inserts for Superior strength, lower service
  • Offer a patented "Power Rib" design for superior durability and deflection characteristics
  • Tie Rod End Sealing - Improved design with sealed boot and new grease purge valve for Improved durability and reduced maintenance
