Meritor ASA - R806015A
Details
Product Description

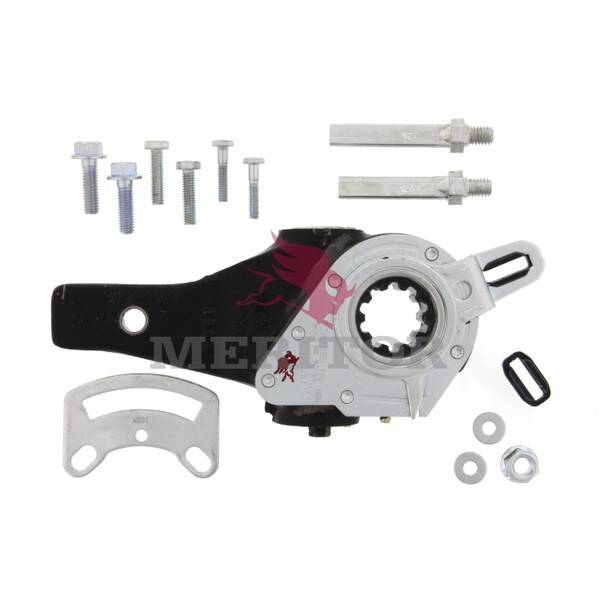

AIR BRAKE - ASA - HALDEX AA1 STYLE
Warranty depends on application and product type. Contact us for more information.
Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!
Features
- Aftermarket Extended Warranty - Linehaul: 2 Years / 200K Miles
- Angle: 0 degrees
- Application: Trailer
- Arm Length: 6.00 in.
- Brake Size: 16.50 in.
- Bushing Inside Diameter: 0.50 in.
- Clevis Type: Unclevised
- Maximum Torque Rating: Less than 15 foot pounds
- Model: AA1 Replacement
- Notes: Standard version. Premium version is M807015. Self-setting alternative is M808015.
- OEM: Haldex
- Production Part Number: 409-10675
- Related Bracket Number: R810308
- Sensing Type: Clearance
- Slack Spline Count: 10
- Slack Spline Diameter: 1.50 in.
- Type: Unhanded
Warranty
Warranty depends on application and product type. Contact us to learn more.
Specifications
| Brand | Unassigned |
| MPN | R806015A |
| UPC | 884879829784 |
| Width | 6 in. |
| VMRS | 013-017-005 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 3.5 in. |
| Benefits | ASA |
