Meritor ASA - R806005A
Details
Product Description

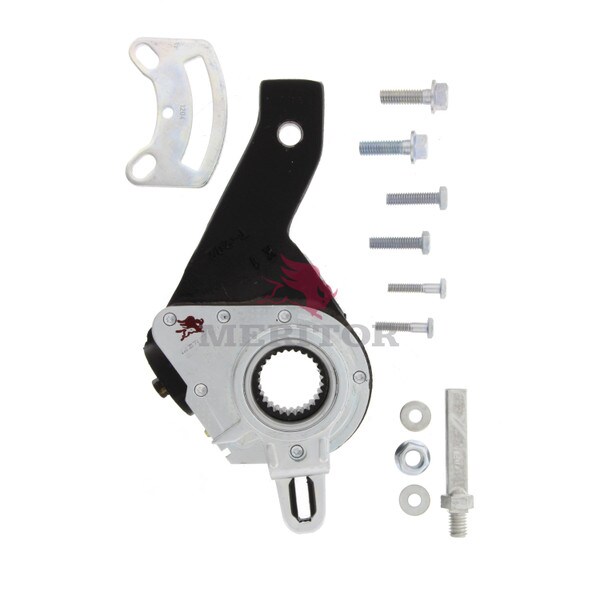

AIR BRAKE - ASA - HALDEX AA1 STYLE
Warranty depends on application and product type. Contact us for more information.
Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!
Features
- Aftermarket Extended Warranty - Linehaul: 2 Years / 200K Miles
- Angle: 34 degrees
- Application: Trailer
- Arm Length: 5.50 in.
- Brake Size: 12.25 in.
- Bushing Inside Diameter: 0.50 in.
- Clevis Type: Unclevised
- Maximum Torque Rating: Less than 15 foot pounds
- Model: AA1 Replacement
- Notes: Standard version. Premium version is M807005.
- OEM: Haldex
- Production Part Number: 409-10654
- Related Bracket Number: R810301
- Sensing Type: Clearance
- Slack Spline Count: 28
- Slack Spline Diameter: 1.50 in.
- Type: Unhanded
Warranty
Warranty depends on application and product type. Contact us to learn more.
Specifications
| Brand | Unassigned |
| MPN | R806005A |
| UPC | 884879829685 |
| Width | 6 in. |
| VMRS | 013-017-005 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 3.5 in. |
| Benefits | ASA |
Cross Reference
8235-R806005A, 8235R806005A, R806005A, TWDR806005A
