Dayton Leaf Spring Pin 27mm. - 327-544
Details
It's always good practice to check on suspension components before making long-haul trips; and when it's time for replacement, turn to Dayton, a top choice in the trucking industry with a full catalog of suspension parts.

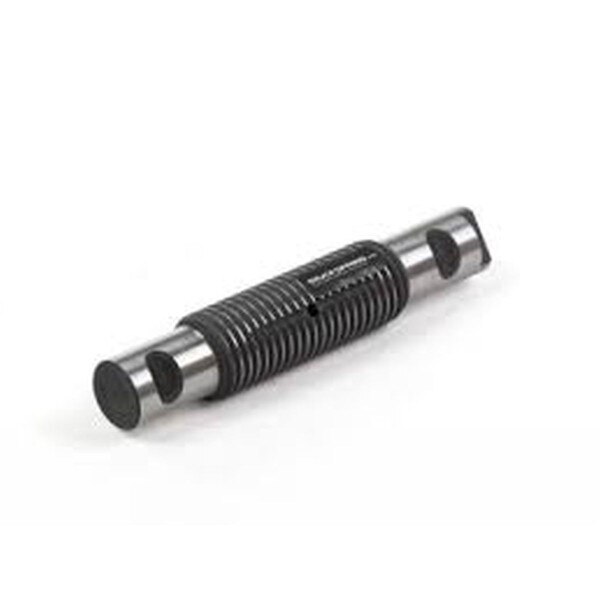

This threaded spring pin features a 27 millimeter diameter and a length of 177 millimeters. Thread size is M33.5-4. Center to center measures 138 millimeters.
This part comes with a limited warranty.
Dayton is a top name in the trucking industry best known for their diverse product offerings of brakes, springs, steering components and coupling products. With operations scattered throughout North America, it's no wonder why customers choose to buy Dayton parts when in need of replacement!
Cross References
327544, ATRSP0011005, ATRSP0011013, B1544-59, B154459, B65-6008, B656008, M5447, SP00-11005, SP00-11005ATR, SP00-11013ATR, SP0011005, SP0011005ATR, SP0011013, SP0011013ATR, WA07-2428, WA072428
Specifications
| Brand Label: | Dayton Parts |
| Item-Level GTIN: | 601602645141 |
| Hazardous Material Code (Y/N): | N |
| EXPI Data (Country of Origin): | Ca |
| Item Quantity Size UOM: | Ea |
| Description (Long Product Description): | Suspension Threaded Spring Pin |
| Description (Short Product Description): | Thrd Spring Pin-Pete |
| Remarks: | Paccar, Use W/Tb-77/81 |
| Pin Type: | 12 |
| Pin Threaded: | Oui |
| Pin Threaded: | Yes |
| Pin Thread Size: | M33.5 - 4.0 |
| Pin Thread Length: | 4 In In |
| Pin Head Type: | No Head |
| Pin Construction: | Threaded |
| Package Contents: | 2 Spring Pins |
| Overall Length: | 6.969 In |
| Number Of Mounting Holes: | 2 |
| Observaciones: | Paccar, Use W/Tb-77/81 |
| Selling Package Quantity: | 2 |
| Selling Package Quantity Uom: | Ea |
| Spring Pin Diameter1: | 1.0625 In In |
| Spring Pin Diameter1: | 1.0625 In. In |
| Spring Pin Type: | 12 |
| Tamaño De La Rosca De La Clavija: | M33,5 - 4,0 |
| Thread Length: | 4 In In |
| Thread Length: | 4 In In |
| Thread Size: | M33.5 - 4.0 |
| Thread Size: | M33,5 - 4,0 |
| Tipo De Cabeza De Pasador: | Sin Cabeza |
| Nº De Bloqueo: | Doble |
| C A C: | 5.4375 |
| C To C: | 5.4375 |
| Cantidad De Paquetes De Venta Uom: | Ea |
| Clavija Roscada: | Si |
| Construcción Del Pasador: | Roscado |
| Contenidos Del Paquete: | 2 Pasadores De Resorte |
| Corte De Bloqueo: | Surco Radial Tangencial |
| Diameter A: | 1.0625 In In |
| Diameter A: | 1.0625 In. In |
| Diámetro A: | 1.0625 In. In |
| Diámetro Del Pasador Del Resorte1: | 1.0625 In. In |
| End Threaded: | Non |
| End Threaded: | No |
| Longitud Total: | 6.969 In |
| Longitud De La Rosca De La Clavija: | 4 In In |
| Lock Type: | Tornillo Cruzado |
| Lock Type: | Cross Bolt |
| Lock No: | Double |
| Lock Cut: | Tangential Radial Groove |
| Length: | 6.969 In |
| Length: | 6.969 In |
| Extremo Roscado: | No |
