Bendix SB-4 Spring Brake Chamber Size 30/36 - 800832

Product Description

Spring brakes and their subsequent parts are generally reserved for the rear axle of the vehicle. Each spring brake is built with two different chambers with two different purposes. The service chamber, like any other brake chamber, is used to push the compressed air through the brake system to apply enough force to stop the brakes. However, spring brakes also contain a piggyback chamber that applies the emergency/parking brakes. Spring brakes are vital for emergency situations, so it's important that you find reliable parts with plenty of power.

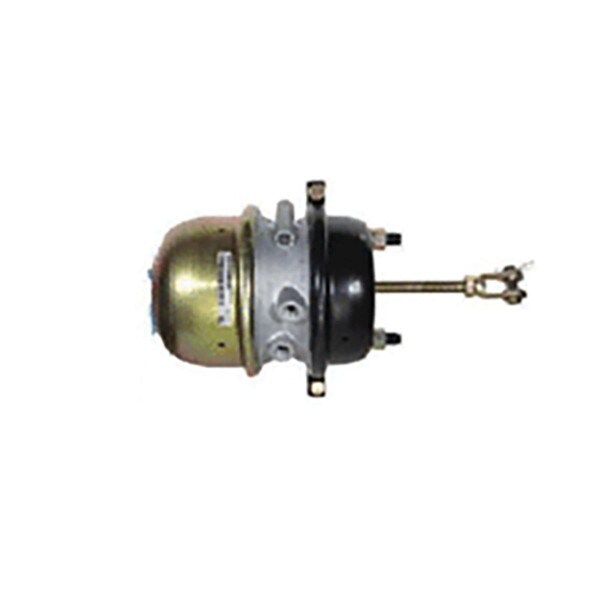

This Bendix SB-4 Series Spring Brake Chamber is a size T30/36 spring brake chamber. Its stroke size come in at 2.5 in. and is classified as a standard stroke brake chamber. It has a push rod length of 7.8 in. with a thread diameter of 3/8 in. in size.

Bendix Commercial Vehicle Systems have been a staple in the heavy duty truck industry, providing cutting-edge safety technology, energy solutions and air brake solutions and systems for well over a century. They've pioneered systems that are now standard on heavy duty trucks. Bendix will always look out for your truck's future, which makes them the best option for your present. Trust Bendix with your truck's future, today.

Features

• SB-4 Series Standard Stroke Spring Brake Chamber
• Size T30/36 Brake Chambers
• 2.5 in. Stroke Size
• 7.8 in. Push Rod Length
• Thread Diameter of 3/8 in. with 18 NPTF ports

Includes

One (1) Spring Brake Chamber Assembly

Cross Reference

5007127, 5007133, 745-800832, 745800832, 800832, 800832BXW, 800904, 800910, 800916, 800919, 800921, BAN800832, BBH-BTS3036, BBHBTS3036, BEN800832, BTS3036, BW800832, BX800832, EGC-3036, EGC3036, GC3036, HALGC3036, OTR2424SB, OTR2430SB, TWDBEN800832, ZAC800832, ZZGC3036

Specifications
