DANA Spicer End Yoke 1710 Series 46 Spline - 8068512 - 8068512

Product Description

When it comes to the best drivetrain components on the market, the Dana and Spicer brands are legendary. Prolong the life of your vehicle, experience reduced noise, vibration, and harshness during your journey, and enjoy performance mile after mile, no matter where your trip takes you.Â

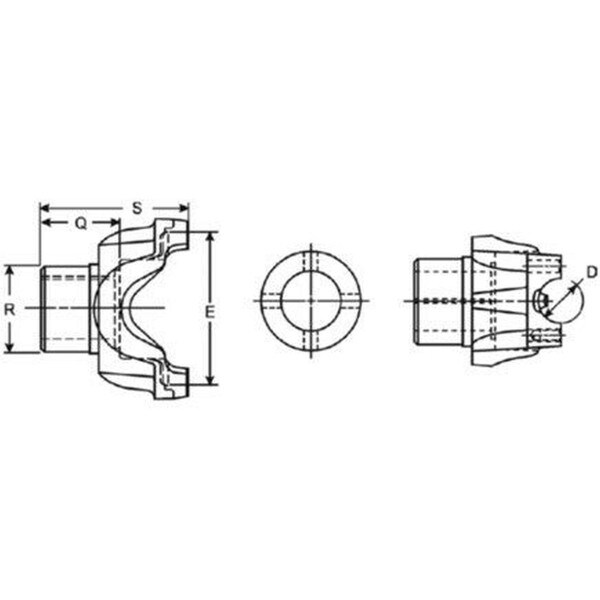

Made from steel, this 1710 Series yoke has 46 splines, an HR yoke style and a 3.250 in. hub diameter. C/L to end hub measures 6.19 inches. Yoke bearing dimension measures 1.938 inches. Major diameter measures 2.39 inches. Length thru hole measures 2.344 inches. C-Bore depth measures .14 inches.

Dana Spicer parts are typically warrantied for 1-3 years from the date of purchase depending on the part category and vocation.

Whether you are driving between the lines or outside of them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is the undisputed leader among aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for today’s most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.

Features

• 1710 Series
• 46 splines
• HR yoke style
• 3.250 in. hub diameter

Includes

One (1) yoke with slinger/plus assembly

Warranty

1-3 years depending on vocation and part category. See Dana Spicer warranty guide for more information.

Cross Reference

17-N4-7771-1X, 17TYS38-75A, 17TYS3875A, 217TYS38 75A, 6-4-7771-1X, 6477711X, 8235-17TYS3875A, A3260V1634, S-F340
